F250/350 Vehicles Single Rear Wheel (SRW)

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

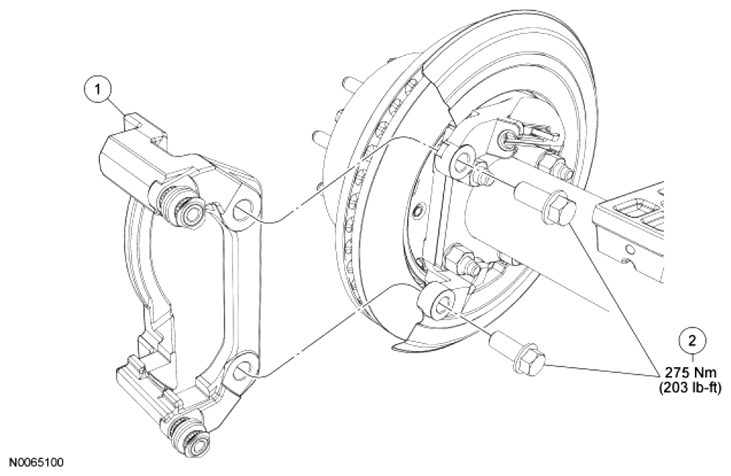

Fig 1: Brake Caliper Anchor Plate Replacement Components With Torque Specifications - F-250/350 Vehicles Single Rear Wheel (SRW)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2290	Brake caliper anchor plate
2	W709847	Brake caliper anchor plate bolts (2 required)
