Transmission - Rear Wheel Drive (RWD): Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING & LIFTING .
Disconnect the battery ground cable. REFER to BATTERY, MOUNTING AND CABLES .
If transmission disassembly or installation of a new transmission is necessary, remove the 21 transmission fluid pan bolts and remove the transmission fluid pan. Drain the transmission fluid into a container.

Fig 1: Locating Transmission Fluid Pan Bolts
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan and the 21 transmission fluid pan bolts. Tighten transmission fluid pan bolts in a crisscross pattern.
- Tighten to 9 Nm (80 lb-in).

  Fig 2: Locating Transmission Fluid Pan Bolts
  Courtesy of FORD MOTOR CO.
Remove the exhaust Y-pipe. REFER to EXHAUST SYSTEM .
Remove the driveshaft. REFER to DRIVESHAFT .
NOTE: Make sure the transmission jack contacts the outer ribs of the transmission fluid pan.

NOTE: Make sure the transmission is securely fastened to the transmission jack.

Using a high-lift transmission jack, support the transmission and remove the jack stand.
Remove the fuel line bracket bolt from the left side of the transmission and position the fuel line bracket aside.
If equipped, remove the nut and the selector lever cable splash shield.

Fig 3: Locating Selector Lever Cable Splash Shield And Nut
Courtesy of FORD MOTOR CO.

Vehicles equipped with 3.7L engine Rear Wheel Drive (RWD)

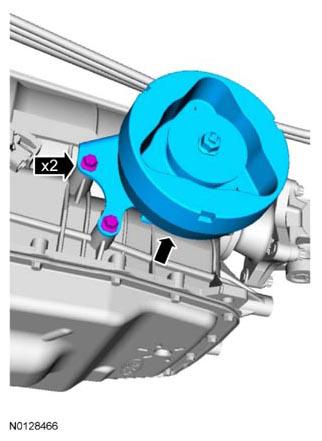

Remove the 2 transmission damper bolts and remove the transmission damper.

Vehicles equipped with a floor shift
Clean the cable adjustment lock of any debris.
NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

NOTE: The 3.5L engine is shown, the 3.7L, 5.0L and 6.2L engines are similar.

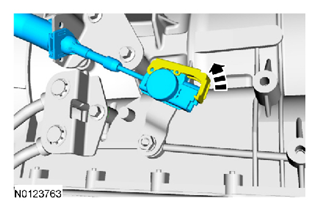

Rotate the cable adjustment lock upward and remove the selector lever cable from the manual control lever.

Vehicles equipped with a column shift
Clean the cable adjustment lock of any debris.

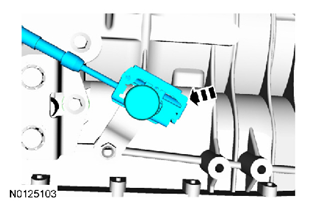

Rotate the cable adjustment lock upward and remove the selector lever cable from the manual control lever.

All vehicles
NOTE: The column shift is shown, the floor shift is similar.

Remove the selector lever cable bracket bolts and remove the selector lever cable bracket.

Vehicles equipped with a 5.0L or 6.2L engine
Remove the transmission-to-engine bolt.

Fig 4: Locating Transmission-To-Engine Bolt
Courtesy of FORD MOTOR CO.

All vehicles
Remove and discard the transmission fluid cooler tube bracket bolt.

Fig 5: Locating Transmission Fluid Cooler Tube Bracket Bolt
Courtesy of FORD MOTOR CO.
NOTE: The 3.5L and 3.7L engine is shown, the 5.0L and the 6.2L engines are similar.

Remove the transmission fluid cooler tube bracket nut and position the transmission fluid cooler tube bracket and tubes aside.
Remove the starter motor. REFER to STARTING SYSTEM .
Vehicles equipped with a 3.5L or 3.7L engine
Remove the 2 pin-type retainers and the access cover.
Remove and discard the 4 flexplate-to-torque converter nuts.

Vehicles equipped with a 5.0L or 6.2L engine
Remove the flexplate inspection cover bolts and the flexplate inspection cover.

Fig 6: Locating Flexplate Inspection Cover Bolts
Courtesy of FORD MOTOR CO.
Remove the rubber torque converter nut access cover.

Fig 7: Locating Rubber Torque Converter Nut Access Cover
Courtesy of FORD MOTOR CO.
Remove and discard the 4 flexplate-to-torque converter nuts.

Fig 8: Locating Flexplate-To-Torque Converter Nuts
Courtesy of FORD MOTOR CO.

All vehicles
NOTE: Do not pull on the wiring harness to disconnect the electrical connector or damage to the electrical connector will occur.

Disconnect the transmission electrical connector by twisting the outer shell and pulling back on the electrical connector.

Fig 9: Locating Transmission Electrical Connector
Courtesy of FORD MOTOR CO.

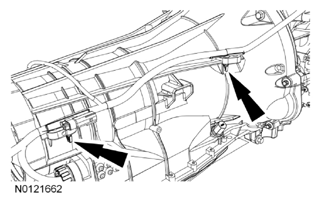

Disconnect the wiring harness retainers from the top of the transmission.

Fig 10: Locating Transmission Wiring Harness Retainers
Courtesy of FORD MOTOR CO.

Vehicles equipped with a 3.5L or 3.7L engine
WARNING: Always secure transmission, transfer case, and axle assemblies to their service jack. Avoid obstructions while lowering and raising the jack. Improperly secured assemblies or contact with obstructions may cause the assembly to fall off the jack, which could result in serious personal injury.

NOTE: The top 2 transmission-to-engine bolts secure the fuel line bracket to the transmission case.

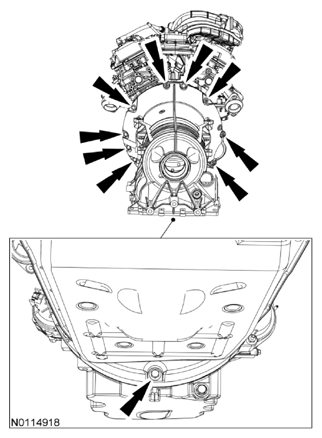

Remove the 10 transmission-to-engine bolts.

Fig 11: Locating Transmission-To-Engine Bolts
Courtesy of FORD MOTOR CO.

Vehicles equipped with a 5.0L or 6.2L engine
WARNING: Always secure transmission, transfer case, and axle assemblies to their service jack. Avoid obstructions while lowering and raising the jack. Improperly secured assemblies or contact with obstructions may cause the assembly to fall off the jack, which could result in serious personal injury.

NOTE: Make sure to not pinch the transmission wiring harness between the transmission and the body or damage can occur.

NOTE: Remove the top 2 transmission-to-engine bolts before removing the rest of the bolts.

NOTE: The top left transmission-to-engine bolt secures the fuel line bracket to the transmission case.

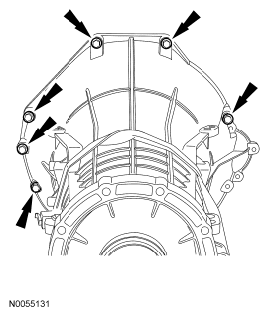

Remove the 6 remaining transmission-to-engine bolts.

Fig 12: Locating Transmission-To-Engine Bolts
Courtesy of FORD MOTOR CO.

All vehicles
Slide the transmission back enough to install the Torque Converter Retainer.

Fig 13: Identifying Torque Converter Retainer
Courtesy of FORD MOTOR CO.
Remove the transmission from the vehicle.
If the transmission is being disassembled to install new parts, or if a new or remanufactured transmission is being installed, clean and backflush the transmission fluid cooler, the auxiliary transmission fluid cooler (if equipped) and the transmission fluid cooler tubes to prevent contaminants from entering the transmission. REFER to TRANSMISSION FLUID COOLER BACKFLUSHING AND CLEANING .
