Transmission Insulator and Retainer: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

RWD vehicles

Install the transmission insulator and retainer and the 3 bolts.
- Tighten to 90 Nm (66 lb-ft).

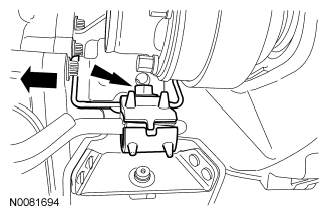

  Fig 1: Locating Transmission Insulator And Retainer Bolts
  Courtesy of FORD MOTOR CO.
Install the transmission support crossmember and the 4 new transmission support crossmember nuts and bolts (2 each side).
- Tighten to 90 Nm (66 lb-ft).

  Fig 2: Locating Transmission Crossmember Bolts
  Courtesy of FORD MOTOR CO.
Lower the transmission onto the transmission support crossmember and install the 2 transmission insulator and retainer nuts.
- Tighten to 103 Nm (75 lb-ft).

  Fig 3: Locating Transmission Insulator And Retainer Nuts
  Courtesy of FORD MOTOR CO.
Install the LH isolator cap bolt.
- Tighten to 35 Nm (26 lb-ft).

  Fig 4: Locating Isolator Cap Bolt
  Courtesy of FORD MOTOR CO.
4WD vehicles
Loosely install the transmission insulator and retainer and the 4 bolts.

Fig 5: Locating Transmission Insulator Retainer Bolts
Courtesy of FORD MOTOR CO.
Position the transmission support crossmember and loosely install the 2 transmission insulator and retainer nuts.

Fig 6: Locating Transmission Insulator Retainer Nuts
Courtesy of FORD MOTOR CO.
Install the 4 new transmission support crossmember bolts and nuts.
- Tighten the transmission insulator and retainer bolts to 90 Nm (66 lb-ft).
- Tighten the transmission support crossmember bolts and nuts to 90 Nm (66 lb-ft).
- Tighten the transmission insulator and retainer nuts to 103 Nm (75 lb-ft).

  Fig 7: Locating Transmission Support Crossmember Nuts And Bolts
  Courtesy of FORD MOTOR CO.
Install the bolt for the LH isolator cap bolt.
- Tighten to 35 Nm (26 lb-ft).

  Fig 8: Locating Isolator Cap Bolt
  Courtesy of FORD MOTOR CO.
All vehicles
Install the LH exhaust heat shield bolt to the transmission support crossmember.
- Tighten to 15 Nm (133 lb-in).

  Fig 9: Locating LH Exhaust Heat Shield Bolt
  Courtesy of FORD MOTOR CO.
Install the RH exhaust heat shield bolt to the transmission support crossmember.
- Tighten to 15 Nm (133 lb-in).

  Fig 10: Locating RH Exhaust Heat Shield Bolt
  Courtesy of FORD MOTOR CO.
4WD vehicles
If equipped, install the skid plate and the 4 skid plate bolts.
- Tighten to 40 Nm (30 lb-ft).

  Fig 11: Locating Skid Plate Bolts
  Courtesy of FORD MOTOR CO.
