Shift Solenoid B (SSB) and Shift Solenoid D (SSD) Inverse Proportional VFS

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

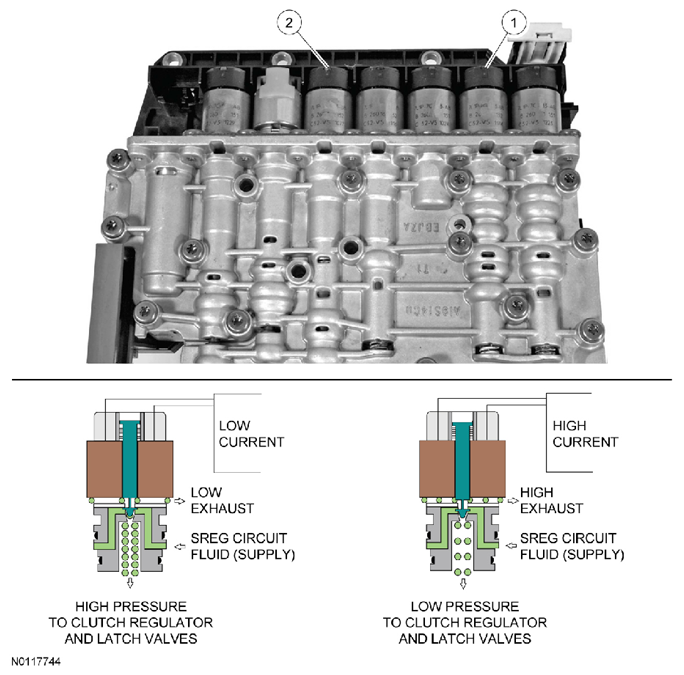

G08340384
Item Description
1 Shift Solenoid B (SSB) Variable Force Solenoid (VFS)
2 Shift Solenoid D (SSD) VFS
