External Sealing (Gaskets, O-rings and Seals)
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

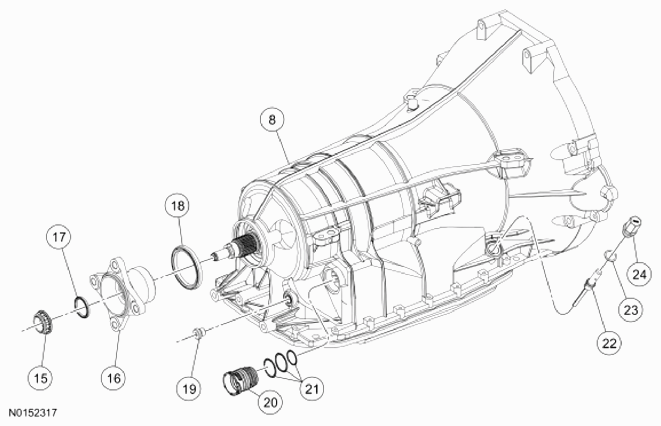

| Item | Description |
|---|---|
| 1 | Torque converter |
| 2 | Front pump oil seal |
| 3 | Front pump-to-case bolt (13 required) |
| 4 | Front pump assembly |
| 5 | Pump assembly inner oil seal |
| 6 | Front pump assembly |
| 7 | Front pump outer oil seal |
| 8 | Transmission case |
| 9 | Manual control lever shaft seal |
| 10 | Manual control lever (Manual control lever installation position is vehicle/model dependent.) |
| 11 | Manual control lever nut |
| 12 | Transmission fluid pan gasket |
| 13 | Transmission fluid pan |
| 14 | Line pressure tap plug |
| 15 | Output shaft flange retaining nut RWD |
| 16 | Output shaft flange RWD |
| 17 | Output shaft flange seal RWD |
| 18 | Output shaft seal (model dependent) |
| 19 | Transmission case plug (park pawl shaft access) |
| 20 | Transmission bulkhead connector sleeve |
| 21 | Transmission bulkhead connector sleeve seals |
| 22 | Transmission fluid level indicator |
| 23 | Transmission fluid level indicator plug seal (part of transmission fluid level indicator) |
| 24 | Transmission fluid level indicator plug (part of transmission fluid level indicator) |
