Bushings, Bearings and Thrust Washer Locations
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
This transmission supports the rotating components of the transmission with bushings, bearings and thrust washers.
The pump assembly support thrust washer controls the amount of end play for components between the pump assembly and the center support (forward/overdrive clutch assembly, direct clutch cylinder).
The T8 thrust bearing outer race controls the amount of end play for components between the center support and the rear of the transmission case (rear planetary gearset assembly, output shaft assembly).

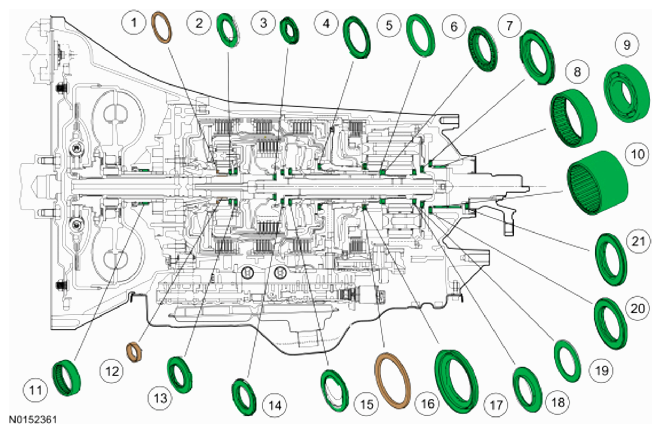

| Item | Description |
|---|---|
| 1 | Front pump selective washer |
| 2 | Bearing T1 |
| 3 | Bearing T3 |
| 4 | Bearing T6 |
| 5 | Thrust bearing outer race |
| 6 | Roller bearing T8 |
| 7 | Thrust bearing T10 |
| 8 | Output shaft bearing assembly (4WD vehicles and late build RWD vehicles) |
| 9 | Output shaft ball bearing assembly (late build RWD vehicles) |
| 10 | Output shaft bearing assembly (early build RWD vehicles) |
| 11 | Front oil pump bearing assembly (part of pump assembly) |
| 12 | Input shaft bushing (part of pump assembly) |
| 13 | Bearing T2 |
| 14 | Bearing T4 |
| 15 | Roller bearing T5 |
| 16 | Rear planetary carrier selective washer |
| 17 | Thrust bearing T7 |
| 18 | Roller bearing T9 |
| 19 | Outer race bearing T9 |
| 20 | Bearing T11 |
| 21 | Thrust bearing T12 (early build RWD ) |
