Transmission Fluid Level Indicator

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

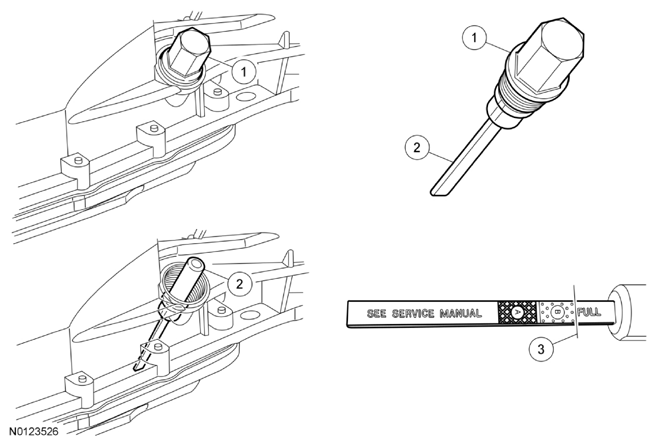

Fig 1: Identifying Transmission Fluid Level Indicator And Transmission Fluid Fill Plug
G07962311Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Transmission fluid fill plug
2 7A010 Transmission fluid level indicator
3 - Transmission fluid level indicator FULL line
