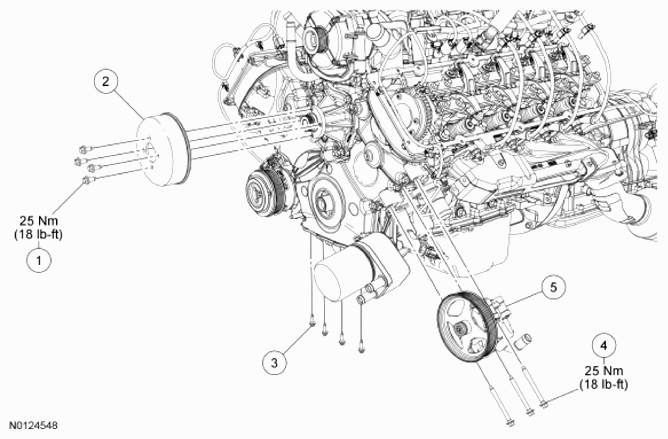

Coolant Pump Pulley, Power Steering Pump and Front Oil Pan Bolts
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N806282 |
Coolant pump pulley bolt (4 required) |
| 2 |
8A528 |
Coolant pump pulley |
| 3 |
W701605 |
Oil pan bolt (4 required) |
| 4 |
- |
Power steering pump bolts (3 required) |
| 5 |
- |
Power steering pump |
