Valve Cover - LH: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION
| Handle 205-153 (T80T-4000-W) |
|
| Installer, Differential Bearing Cone 205-142 (T80T-4000-J) |
|
| Installer, Spark Plug Tube Seal 303-1247 /2 |
|
| Remover, Spark Plug Tube Seal 303-1247 /1 |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-B |
- |
| Motorcraft® Silicone Gasket Remover ZC-30-A |
- |
| Motorcraft® Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

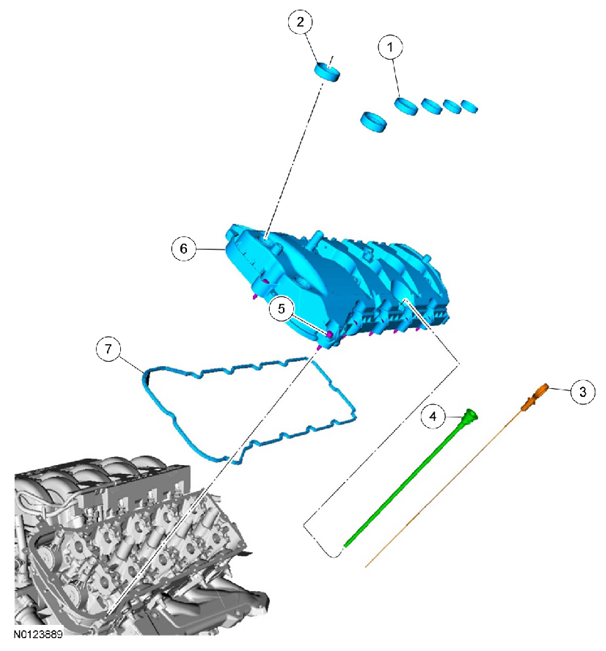

| Item | Part Number | Description |
|---|---|---|
| 1 | 6C535 | Spark plug tube seal (4 required) |
| 2 | 6C535 | Variable Camshaft Timing (VCT) solenoid seal (2 required) |
| 3 | 6750 | Oil level indicator |
| 4 | 6754 | Oil level indicator tube |
| 5 | 6C519 | Valve cover bolt (part of 6582) (14 required) |
| 6 | 6582 | LH valve cover |
| 7 | 6584 | LH valve cover gasket |
