Intake Manifold: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
    NOTE: Clean the sealing surfaces with metal surface prep. Follow the directions on the packaging. Inspect the mating surfaces.

    Using new gaskets, install the intake manifold.

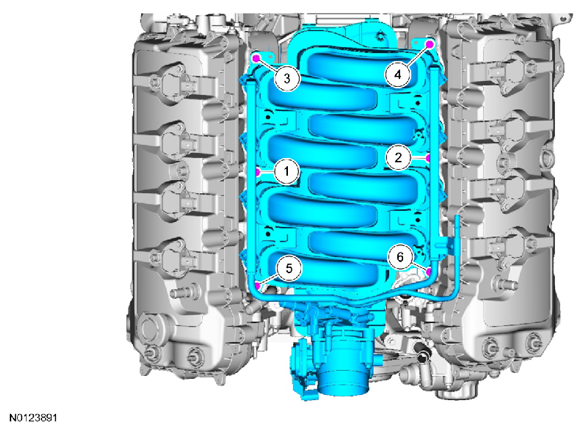

    • Tighten the 6 intake manifold bolts in the sequence shown below in 2 stages.
      • Stage 1: Tighten to 10 Nm (89 lb-in).
      • Stage 2: Tighten an additional 45 degrees.
        G08338363

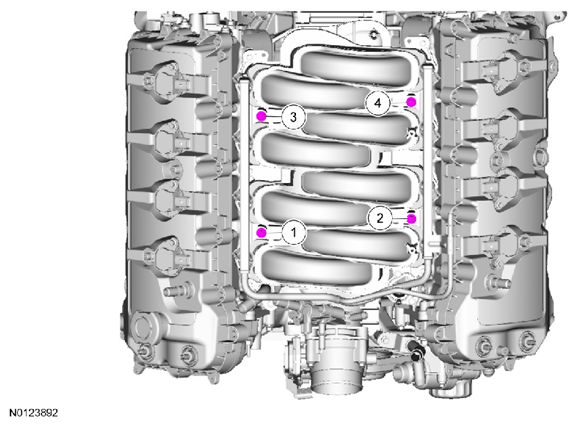

  2. Install the 4 fuel rail bolts.
    • Tighten in the sequence shown below in 3 stages.
      • Stage 1: Hand tighten.
      • Stage 2: Tighten to 10 Nm (89 lb-in).
      • Stage 2: Tighten an additional 90 degrees.
        G08338364
  3. Position the heater hoses and attach the heater hose retainer.
    G08338360
  4. Attach the 4 wiring harness retainers to the rear of the intake manifold.
    G08338359
  5. NOTE: The 4 LH fuel injector electrical connectors are shown, the 4 RH fuel injector electrical connectors are similar.

    Connect the 8 fuel injector electrical connectors.

    G08338358
  6. Install the LH and RH fuel rail insulators.
    G08338357

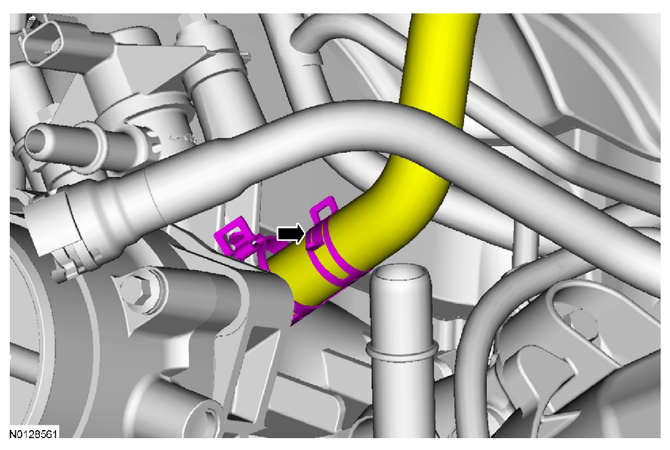

  7. Connect the vacuum tube to the intake manifold.
    G08338369
  8. Connect the fuel supply tube. For additional information, refer to the quick connect coupling procedure in FUEL SYSTEM - GENERAL INFORMATION .
    G08338355
  9. Install the crankcase ventilation tube. For additional information, refer to the quick connect coupling procedure in FUEL SYSTEM - GENERAL INFORMATION .
    G08338354
  10. Connect the Evaporative Emission (EVAP) purge valve tube and electrical connector. For additional information, refer to the quick connect coupling procedure in FUEL SYSTEM - GENERAL INFORMATION .
    • Attach the EVAP  tube retainer to the fuel rail.
      G08338353
  11. Connect the TB  electrical connector.
    G08338352
  12. Install the Air Cleaner (ACL) outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
