Engine Front Cover: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
  4. Remove the RH and LH valve covers. For additional information, refer to VALVE COVER - RH  and VALVE COVER - LH .

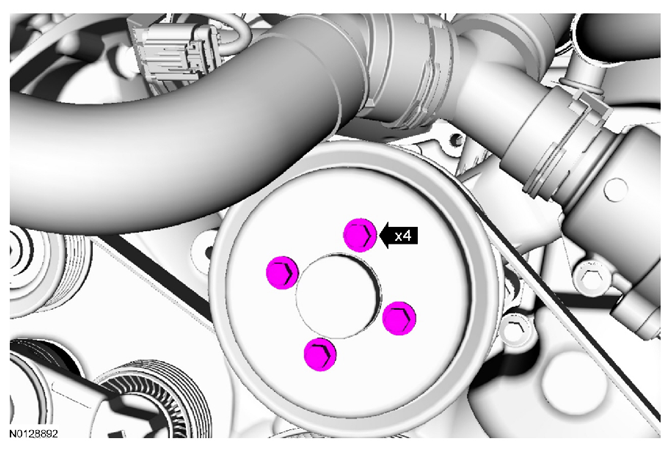

  5. Loosen the 4 coolant pump pulley bolts.
    G08338428
  6. Remove the accessory drive and A/C  compressor belts. For additional information, refer to ACCESSORY DRIVE .

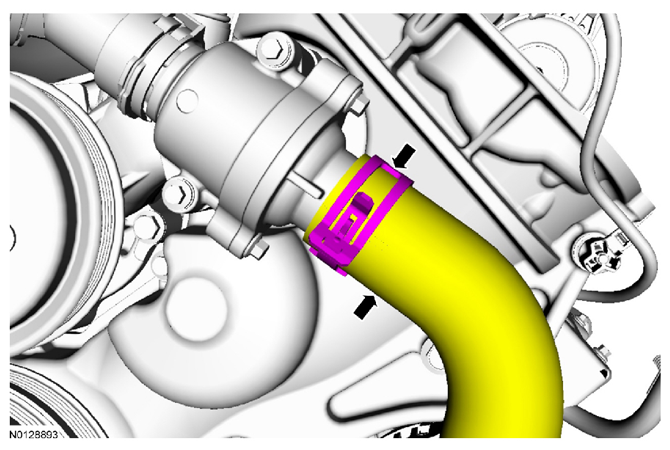

  7. Release the clamp and disconnect the lower radiator hose from the thermostat housing assembly.
    G08338429

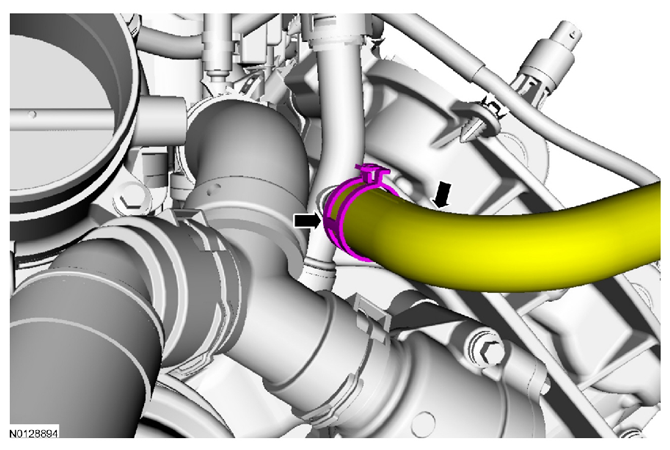

  8. Release the clamp and disconnect the degas coolant hose.
    G08338430

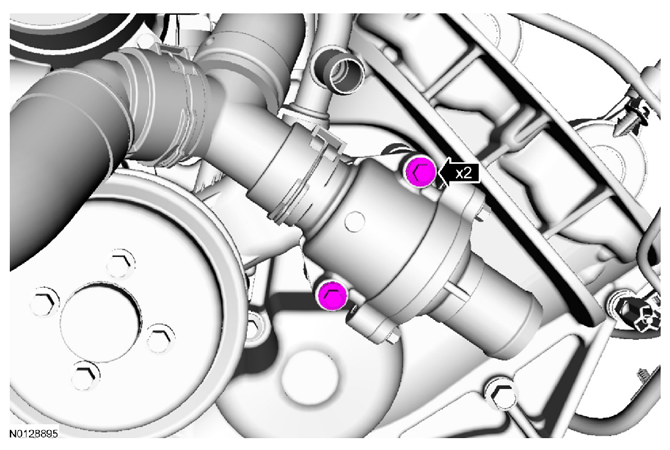

  9. Remove the 2 thermostat housing bolts.
    G08338431

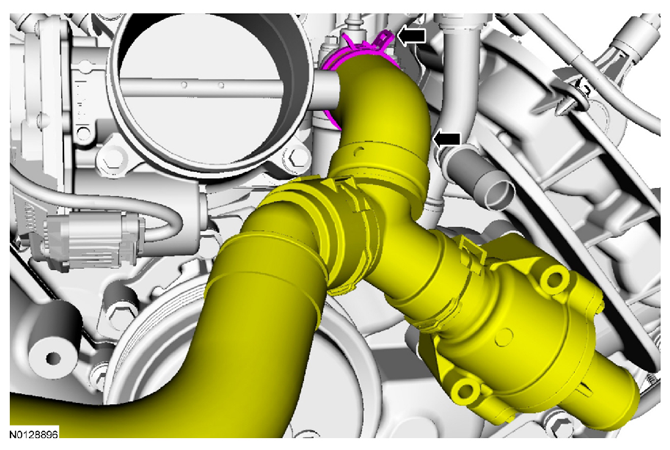

  10. Release the clamp and position the upper radiator hose T-connector/thermostat housing assembly aside.
    • Remove and discard the thermostat housing O-ring seal.
      G08338432

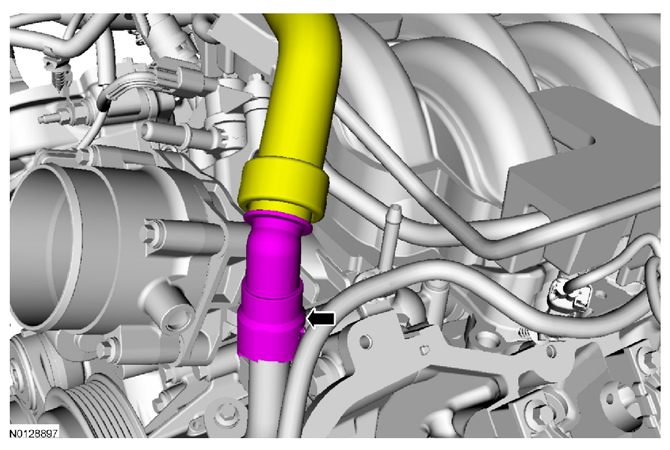

  11. Disconnect the heater hose.
    G08338433

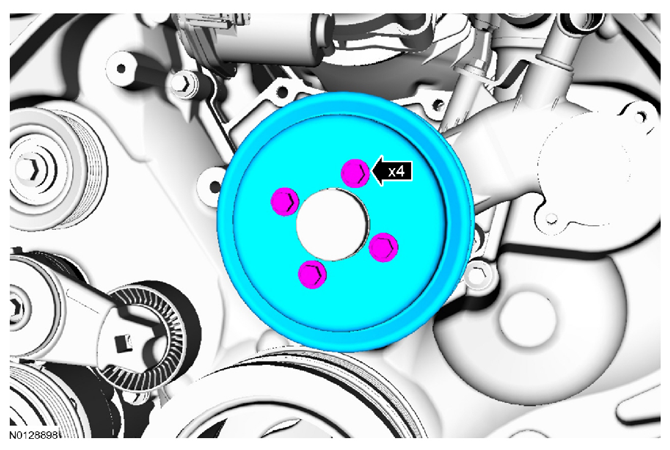

  12. Remove the 4 bolts and the coolant pump pulley.
    G08338434

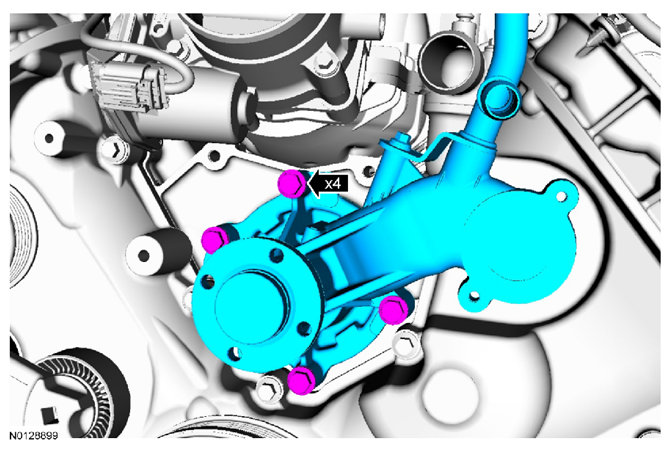

  13. Remove the 4 bolts and the coolant pump.
    • Remove and discard the O-ring seal.
      G08338435

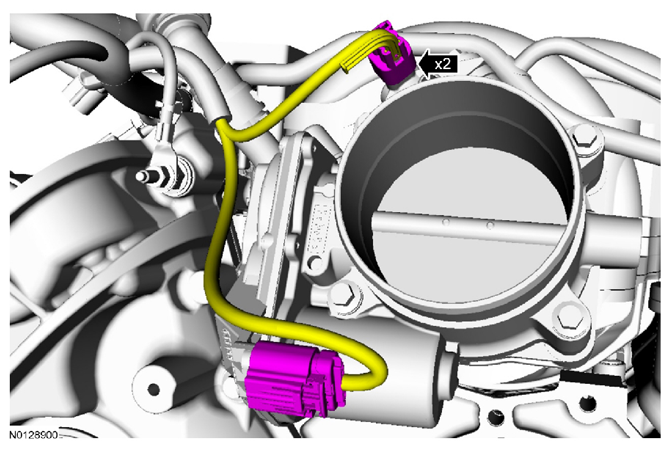

  14. Disconnect the throttle body and Evaporative Emission (EVAP) purge valve electrical connectors.
    G08338436

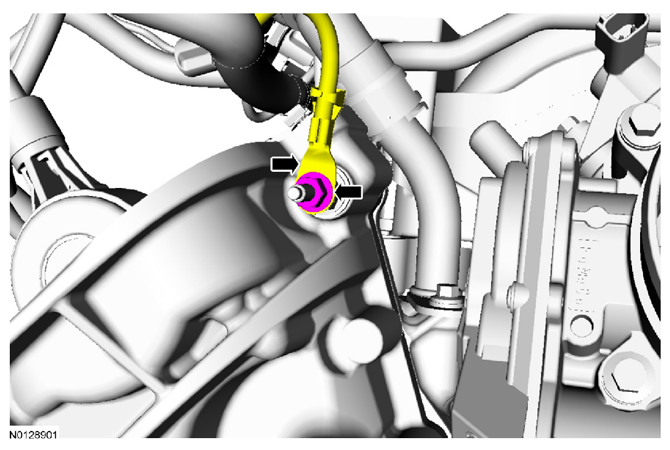

  15. Remove the nut and the ground wire from the engine front cover stud bolt.
    G08338437

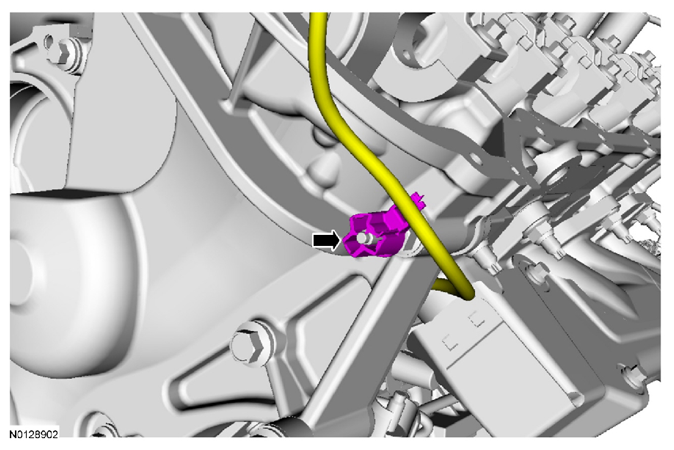

  16. Detach the wiring harness retainer from the engine front cover stud bolt.
    G08338438

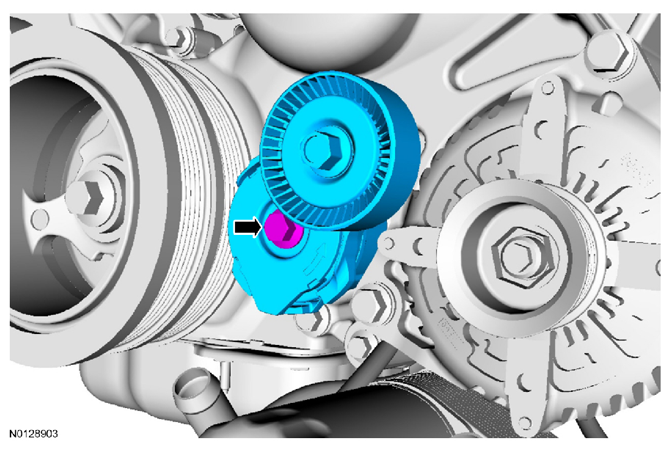

  17. Remove the bolt and the accessory drive belt tensioner.
    G08338439

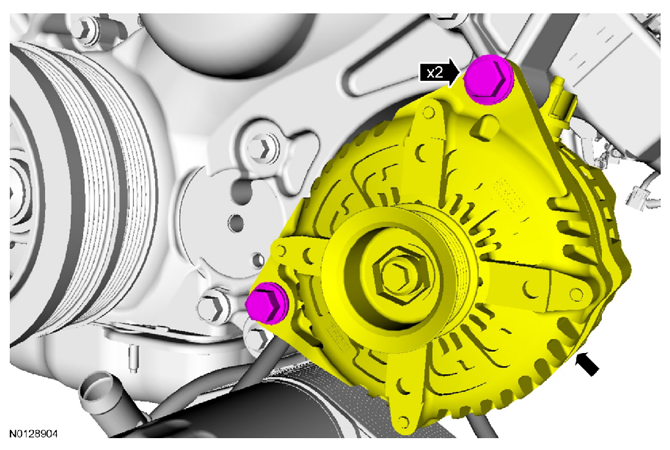

  18. Remove the 2 bolts and position the generator aside.
    G08338440

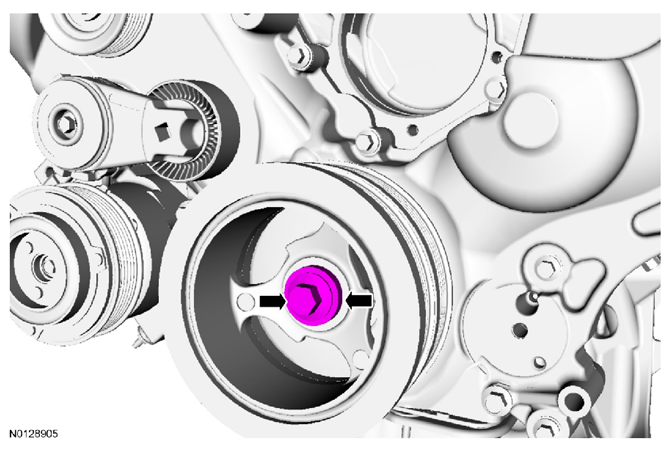

  19. Remove the crankshaft pulley bolt and washer.
    G08338441

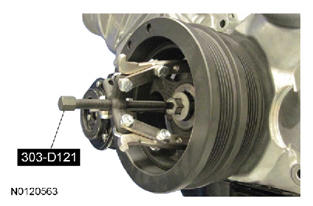

  20. Using the 3 Jaw Puller and the crankshaft pulley bolt, remove the crankshaft pulley.
    • Discard the crankshaft pulley bolt.
      G08338807
  21. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    Using the Oil Seal Remover, remove the crankshaft front oil seal.

    G08339345
  22. Remove the 4 bolts and the skid plate.

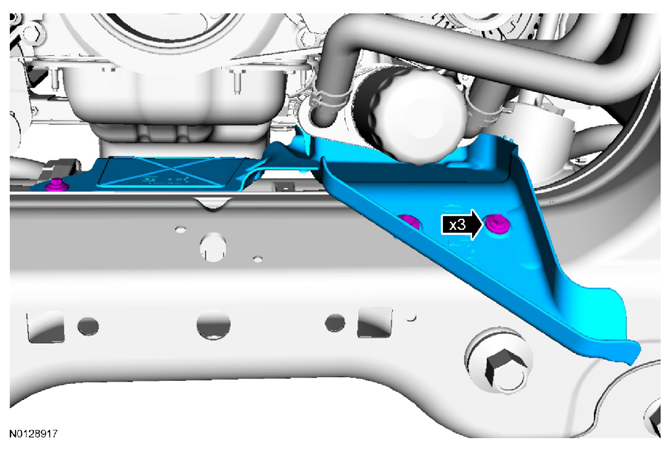

  23. Remove the 3 bolts and the oil drain gutter.
    G08338444

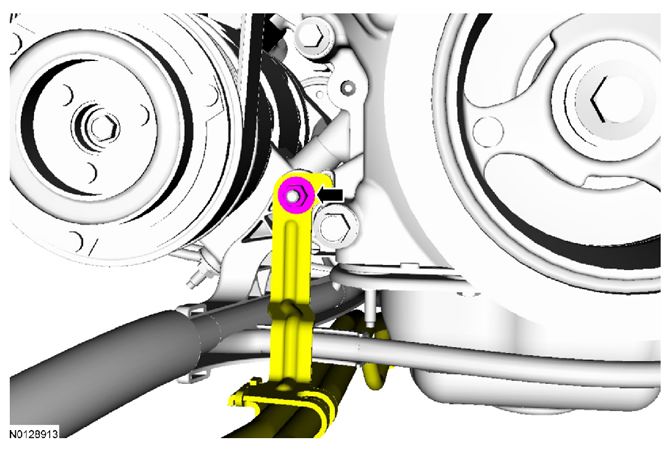

  24. Remove the nut and the transmission cooler tube bracket from the engine front cover stud bolt.
    G08338445

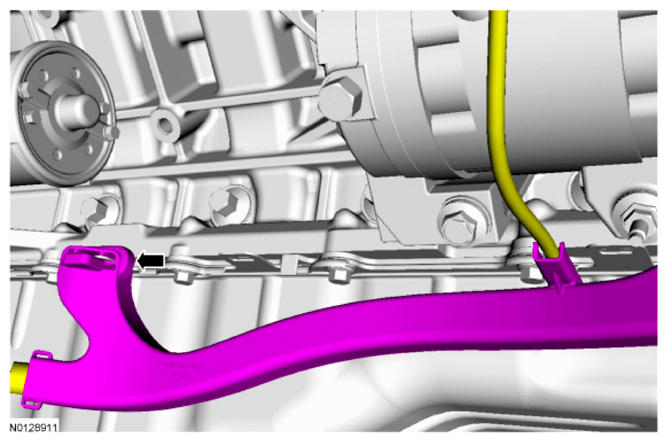

  25. Detach the starter motor wiring harness retainer from the oil pan.
    G09541043

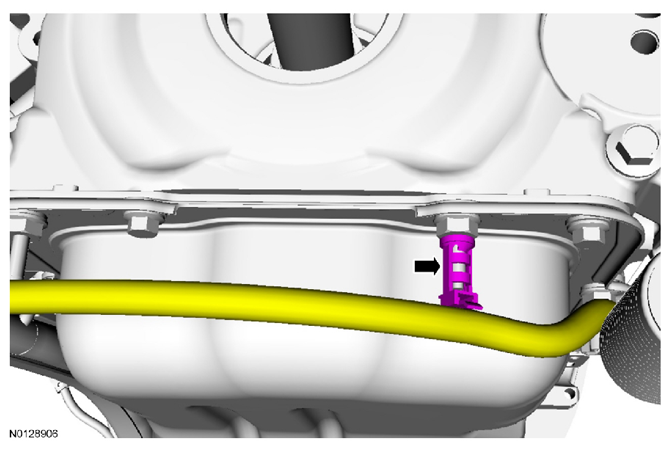

  26. Detach the wiring harness retainer from the oil pan stud bolt.
    G08338447
  27. Remove the 2 front oil pan stud bolts and 2 front oil pan bolts.

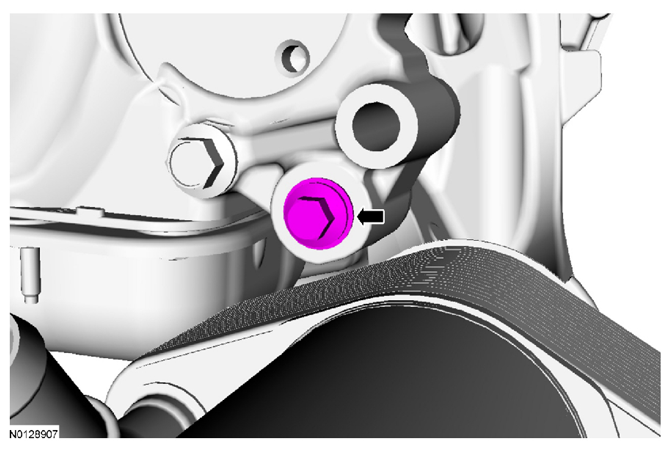

  28. Remove the engine front cover-to-oil filter adapter bolt.
    G08338448

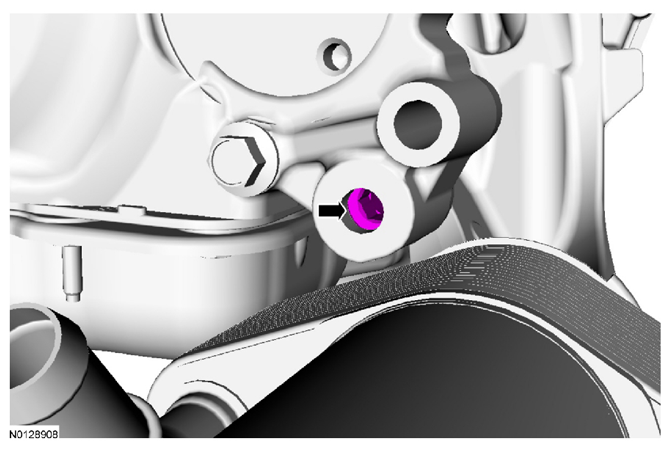

  29. Using a 10 mm (0.393 in) Hex Bit loosen the engine front cover-to-oil filter adapter jack screw.
    G08338449

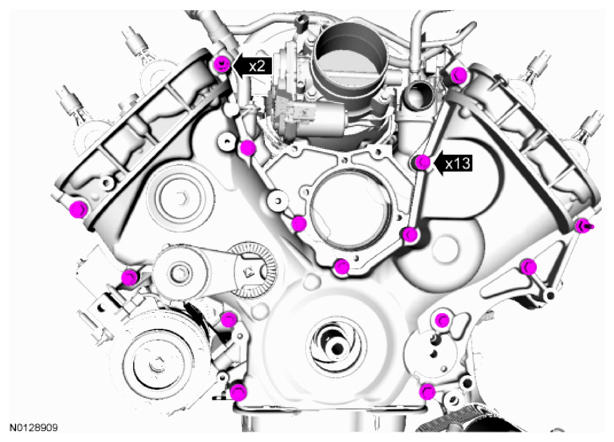

  30. Remove the 13 engine front cover bolts and the 2 stud bolts.
    G09541047

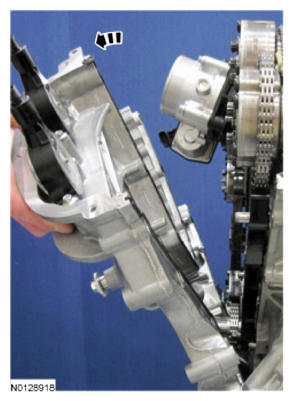

  31. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Remove the engine front cover.

    • Remove and discard the engine front cover gaskets.
    • Clean the mating surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Inspect the mating surfaces.
      G09541048
  32. Drain the engine oil.
    • Install the drain plug and tighten to 26 Nm (19 lb-ft).
