Engine Front Cover: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION
| 3 Jaw Puller 303-D121 or equivalent |
|
| Installer, Front Cover Oil Seal 303-335 (T88T-6701-A2 plate only) |
|
| Installer, Front Crank Seal and Damper 303-1531 |
|
| Remover, Oil Seal 303-409 (T92C-6700-CH) |
|
| Strap Wrench 303-D055 (D85L-6000-A) or equivalent |
|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-B |
- |
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |
| Motorcraft® Silicone Gasket Remover ZC-30-A |
- |
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |
| Motorcraft® Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

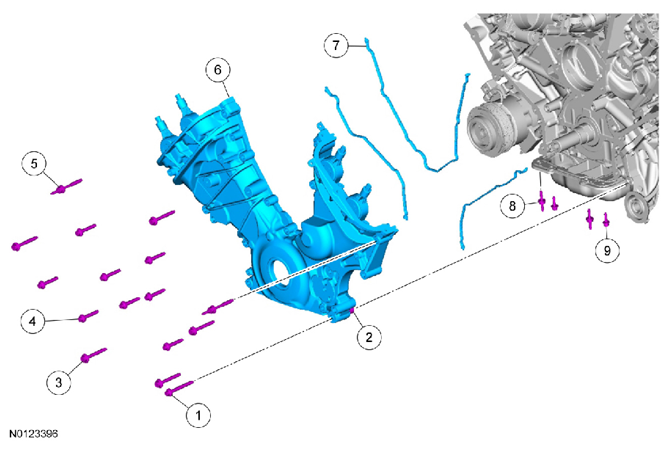

| Item | Part Number | Description |
|---|---|---|
| 1 | W503304 | Engine front cover-to-oil filter adapter bolt |
| 2 | W715209 | Engine front cover-to-oil filter adapter jackscrew (part of 6019) |
| 3 | W704920 | Engine front cover bolt (5 required) |
| 4 | W714925 | Engine front cover bolt (8 required) |
| 5 | W704919 | Engine front cover stud bolt (2 required) |
| 6 | 6019 | Engine front cover |
| 7 | 6020 | Engine front cover gasket (3 required) |
| 8 | W714963 | Oil pan stud bolt (2 required) |
| 9 | W714962 | Oil pan bolt (2 required) |
