Engine Assembly
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

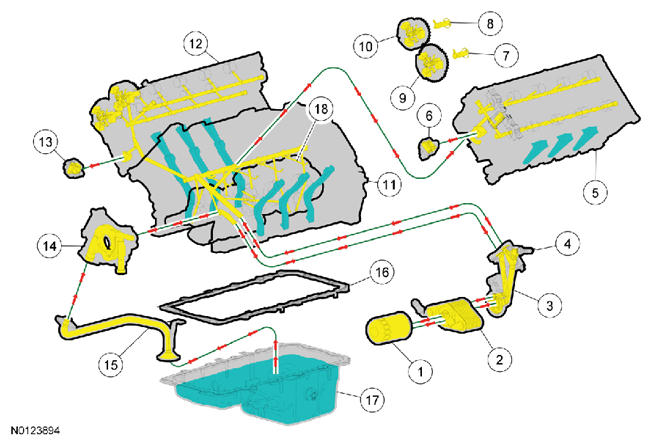

| Item | Part Number | Description |
|---|---|---|
| 1 | 6714 | Oil filter |
| 2 | 6A642 | Oil filter cooler |
| 3 | 6881 | Oil filter adapter |
| 4 | 9278 | Engine Oil Pressure (EOP) switch |
| 5 | 6049 | Cylinder head - LH |
| 6 | 6L266 | Timing chain tensioner - LH |
| 7 | 6250 | Exhaust camshaft |
| 8 | 6250 | Intake camshaft |
| 9 | 6256 | Exhaust camshaft Variable Camshaft Timing (VCT) |
| 10 | 6256 | Intake camshaft VCT |
| 11 | 6010 | Cylinder block |
| 12 | 6049 | Cylinder head - RH |
| 13 | 6L266 | Timing chain tensioner - RH |
| 14 | 6600 | Oil pump |
| 15 | 6622 | Oil pump screen and pickup tube |
| 16 | 6710 | Oil pan gasket |
| 17 | 6675 | Oil pan |
| 18 | 6K868 | Piston cooling jet (4 required) |
