Timing Drive Components: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

All engines

  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .

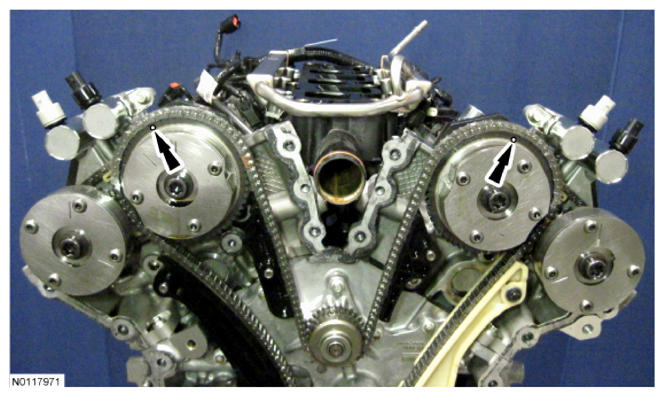

  2. Rotate the crankshaft clockwise and align the timing marks on the intake Variable Camshaft Timing (VCT) assemblies as shown below.
    G09540141
  3. Remove the 3 bolts and the LH valve train oil tube.
    G08336526
  4. NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.

    Install the Camshaft Holding Tool onto the flats of the LH camshafts.

    G08336527
  5. Remove the 3 bolts and the RH valve train oil tube.
    G08336528
  6. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC  position.

    Install the Camshaft Holding Tool onto the flats of the RH camshafts.

    G08336529
    NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.
  7. Mark the timing chain link that aligns with the timing mark on the LH intake VCT  assembly as shown below.
    G08336530
  8. Mark the timing chain link that aligns with the timing mark on the RH intake VCT  assembly as shown below.
    G08337087
  9. NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

    Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown below.

    G08336532

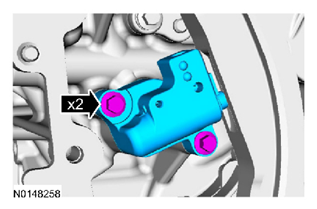

  10. Remove the 2 bolts and the primary timing chain tensioner.
    G08337529
  11. Remove the primary timing chain tensioner arm.
    G08336534
  12. Remove the 2 bolts and the lower LH primary timing chain guide.
    G08336535
  13. NOTE: Removal of the VCT  oil control solenoid will aid in the removal of the primary timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT  oil control solenoid.
    NOTE: Keep the VCT  oil control solenoid clean of dirt and debris.

    Remove the bolt and the LH intake VCT  oil control solenoid.

    G08336536
  14. NOTE: Removal of the VCT  oil control solenoid will aid in the removal of the primary timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT  oil control solenoid.
    NOTE: Keep the VCT  oil control solenoid clean of dirt and debris.

    Remove the bolt and the RH intake VCT  oil control solenoid.

    G08336537

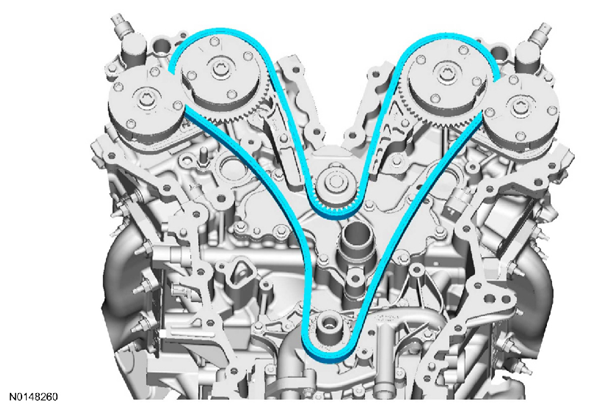

  15. Remove the primary timing chain.
    G08337534
  16. Remove the crankshaft timing chain sprocket.
    G08336539
  17. NOTE: Do not use power tools to remove the bolt or damage to the LH primary timing chain guide may occur.

    Remove the bolt and the upper LH primary timing chain guide.

    G07959620
  18. NOTE: The 2 VCT  oil control solenoids are removed for clarity.
    NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

    Compress the LH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.

    G08337097
  19. Remove and discard the 2 LH VCT  assembly bolts.
    G08337098
  20. Remove the 2 LH VCT  assemblies and secondary timing chain.
    G08337099
  21. NOTE: The 2 VCT  oil control solenoids are removed for clarity.
    NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

    Compress the RH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.

    G08336544
  22. Remove and discard the 2 RH VCT  assembly bolts.
    G07420445
  23. Remove the 2 RH VCT  assemblies and secondary timing chain.
    G08336546
  24. NOTE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.

    Remove the bolt and the RH primary timing chain guide.

    G09540163
  25. Remove the 9 bolts and the channel cover plate.
    • Discard the gaskets.
      G08337104

    Engines with secondary timing chain tensioner removed

    NOTE: The following steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed, or damage to the engine may occur.
  26. NOTE: A slight twisting motion will aid in the removal of the VCT  oil control solenoid.
    NOTE: Keep the VCT  oil control solenoid clean of dirt and debris.

    Remove the LH exhaust VCT  oil control solenoid.

    G08337105
  27. Remove the LH secondary timing chain tensioner shoe.
    G08337106
  28. Remove the LH secondary timing chain tensioner by pushing up from the bottom and remove.
    G08337107
  29. NOTE: A slight twisting motion will aid in the removal of the VCT  oil control solenoid.
    NOTE: Keep the VCT  oil control solenoid clean of dirt and debris.

    Remove the RH exhaust VCT  oil control solenoid.

    G08337108
  30. Remove the RH secondary timing chain tensioner shoe.
    G08337109
  31. Remove the RH secondary timing chain tensioner by pushing up from the bottom and remove.
    G08337110
