Oil Pump: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .

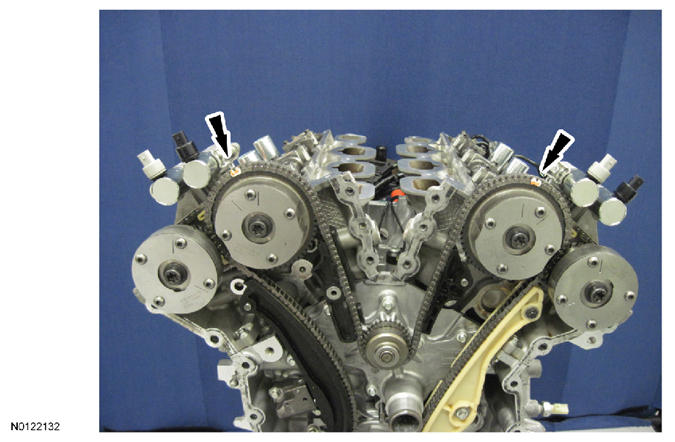

  3. Rotate the crankshaft clockwise and align the timing marks on the Variable Camshaft Timing (VCT) assemblies as shown in illustration.
    G08337081
  4. Remove the 3 bolts and the LH valve train oil tube.
    G08336526

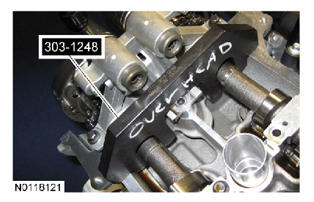

  5. NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.

    Install the Camshaft Holding Tool onto the flats of the LH camshafts.

    G08336527
  6. Remove the 3 bolts and the RH valve train oil tube.
    G08336528
  7. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC  position.

    Install the Camshaft Holding Tool onto the flats of the RH camshafts.

    G08336529
    NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.

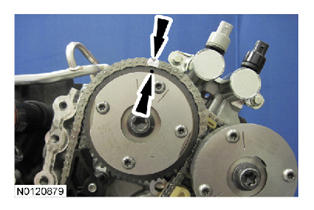

  8. Mark the timing chain link that aligns with the timing mark on the LH intake VCT  assembly as shown in illustration.
    G08336530
  9. Mark the timing chain link that aligns with the timing mark on the RH intake VCT  assembly as shown in illustration.
    G08337087

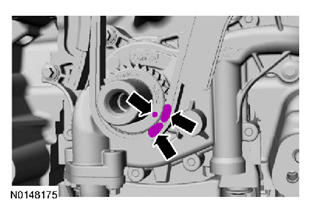

  10. NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

    Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown in illustration.

    G08336532
  11. Remove the 2 bolts and the primary timing chain tensioner.
    G08336533
  12. Remove the primary timing chain tensioner arm.
    G08336534
  13. Remove the 2 bolts and the lower LH primary timing chain guide.
    G08336535
  14. NOTE: Removal of the VCT  oil control solenoid will aid in the removal of the primary timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT  oil control solenoid.
    NOTE: Keep the VCT  oil control solenoid clean of dirt and debris.

    Remove the bolt and the LH intake VCT  oil control solenoid.

    G08336536

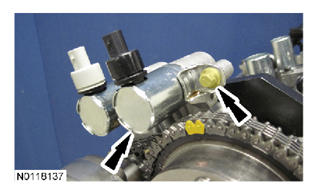

  15. NOTE: Removal of the VCT  oil control solenoid will aid in the removal of the primary timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT  oil control solenoid.
    NOTE: Keep the VCT  oil control solenoid clean of dirt and debris.

    Remove the bolt and the RH intake VCT  oil control solenoid.

    G08336537

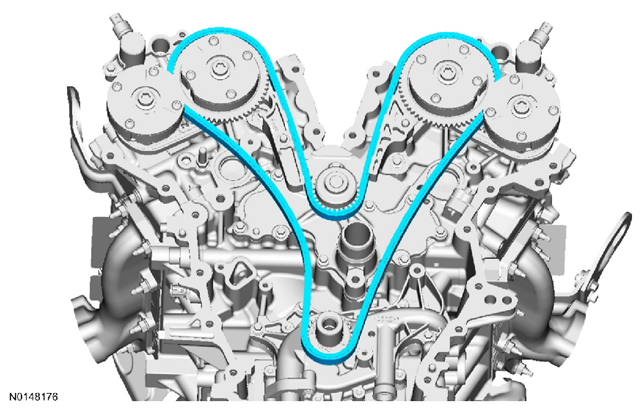

  16. Remove the primary timing chain.
    G08336538
  17. Remove the oil pan. For additional information, refer to OIL PAN .
  18. Remove the crankshaft timing chain sprocket.
    G08336539
  19. Remove the 3 bolts and the oil pump screen and pickup tube.
    • Discard the O-ring seal.
      G07958859
  20. Remove the 3 bolts and the oil pump.
    G08336815
