Intake Manifold: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

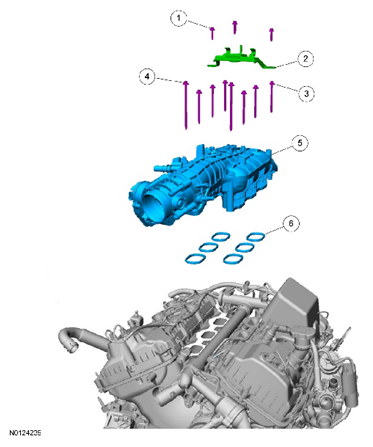

| Item |
Part Number |
Description |
| 1 |
W503277 |
Engine cover bracket bolts (3 required) |
| 2 |
- |
Engine cover bracket (part of 6A949) |
| 3 |
W714988 |
Intake manifold bolt (6 required) |
| 4 |
W715096 |
Intake manifold bolt (2 required) |
| 5 |
9424 |
Intake manifold |
| 6 |
9439 |
Intake manifold gasket |
