Engine Support Insulators: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

NOTE: Discard all engine support insulator fasteners and install new fasteners.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
NOTE: Index-mark the hood hinge location to aid in hood installation.

NOTE: RH shown in illustration, LH similar.

Remove the 4 bolts (2 shown in illustration) and the hood.
Remove the Air Cleaner (ACL) outlet pipe, ACL pipe-to-turbocharger pipes, turbocharger bypass hoses and the turbocharger-to-Charge Air Cooler (CAC) pipes. For additional information, refer to Intake Air System Components - Exploded View, 3.5L in INTAKE AIR DISTRIBUTION AND FILTERING .
Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
Remove the high-pressure fuel pump. For addition information, refer to FUEL CHARGING AND CONTROLS - 3.5L GTDI .
Remove the cowl panel grille. For additional information, refer to FRONT END BODY PANELS .
Remove the 6 screws and release the 2 cowl panel clips and remove the cowl panel.
Remove the 2 nuts and the Charge Air Cooler (CAC) tube bracket.
- Disconnect the coolant hose from the valve cover stud.
Install the Right Front Lift Eye and 2 bolts.
Remove the 4 pushpins and the upper radiator air deflector.
Install the Engine Support Bar.
Release the 4 fasteners and remove the splash shield.

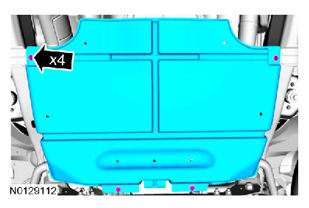

Remove the 4 bolts and the skid plate.
If equipped, remove the front driveshaft. For additional information, refer to DRIVESHAFT .
NOTE: Support the exhaust intermediate pipe prior to removing the bolts or damage to the flex pipe may occur.

Remove the 2 exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
- Discard the 2 bolts.
NOTE: LH shown in illustration, RH similar.

Remove and discard the 2 LH and the 2 RH catalytic converter-to-turbocharger nuts.
NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

Loosen the 2 transmission mount-to-crossmember nuts.

Fig 1: Locating Transmission Mount-To-Crossmember Nuts
Courtesy of FORD MOTOR CO.

RH engine support insulator
Remove the Air Conditioning (A/C) compressor belt. For additional information, refer to ACCESSORY DRIVE .

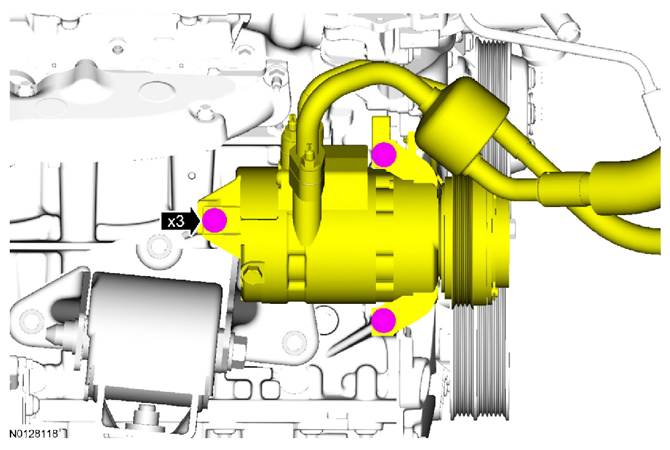

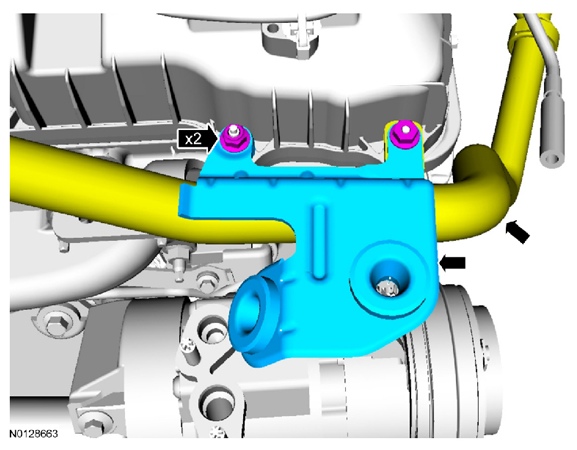

Remove the 3 bolts and position the A/C compressor aside.
Remove the starter. For additional information, refer to STARTING SYSTEM .
NOTE: Only use hand tools when loosening or tightening the engine support insulator through bolts or damage to the engine support insulator-to-cylinder block bracket can occur.

Remove and discard the RH and LH engine support insulator through bolts.
Remove and discard the 2 RH engine support insulator nuts and the 2 studs.
Raise the engine approximately 30 mm (1.18 in).
Remove the 4 bolts and the RH engine support insulator-to-cylinder block bracket.
- Discard the bolts.
Remove the RH engine support insulator.
LH engine support insulator
NOTE: Only use hand tools when loosening or tightening the engine support insulator through bolts or damage to the engine support insulator-to-cylinder block bracket can occur.

Remove and discard the LH and RH engine support insulator through bolts.
Raise the engine approximately 30 mm (1.18 in).
NOTE: Only use hand tools when removing or installing the engine support insulator-to-frame bolts or damage to the engine support insulator-to-frame nut plate can occur.

Remove and discard the 3 LH engine support insulator-to-frame bolts.

Four-Wheel Drive (4WD) - LH engine support insulator
Position a suitable hydraulic jack under the front axle. Securely strap the axle to the jack.

Fig 2: Supporting Front Axle Using Hydraulic Jack
Courtesy of FORD MOTOR CO.
Remove the upper front axle carrier mounting bushing bolt.

Fig 3: Locating Upper Front Axle Carrier Mounting Bushing Bolt
Courtesy of FORD MOTOR CO.
Remove the axle shaft housing carrier bushing bolt.

Fig 4: Locating Axle Shaft Housing Carrier Bushing Bolt
Courtesy of FORD MOTOR CO.
Remove the lower front axle carrier mounting bushing bolt.

Fig 5: Locating Lower Front Axle Carrier Mounting Bushing Bolt
Courtesy of FORD MOTOR CO.
Lower the front axle to allow clearance to the LH engine support insulator.
LH engine support insulator
Remove the LH engine support insulator.

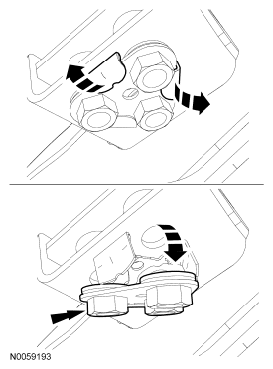

Inspect the engine support insulator-to-frame nut plate for thread damage. If the nut plate is damaged, bend 2 tabs back and remove the nut plate. Replace the nut plate with service part number 56190 and bend the 2 tabs back to the original position.

Fig 6: Removing LH Engine Support Insulator-To-Cylinder Block Bracket And Bolts
Courtesy of FORD MOTOR CO.

NOTE: If necessary, the following 3 steps are to remove the LH engine support insulator-to-cylinder block bracket.
Detach the generator wiring harness from the engine front cover.
- Detach the generator wiring harness retainer from the oil filter adapter.
Detach the generator wiring harness retainer from the lower LH side of the engine block.
Remove the 4 bolts and the LH engine support insulator-to-cylinder block bracket.
- Discard the bolts.
