Engine Oil Pressure (EOP) Switch: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

    4x2/4x4

    NOTE: If the oil pressure switch is to be reused, apply thread sealant.
  1. Install the EOP switch.

    Tighten to 14 Nm (124 lb-in) then an additional 180 degrees.

    G00596489Courtesy of FORD MOTOR CO.
  2. Connect the EOP switch electrical connector
    G00596488Courtesy of FORD MOTOR CO.

    3. 4x4

  3. Install the LH ACL pipe-to-turbocharger pipe and the LH turbocharger-to-Charger Air Cooler (CAC) pipe. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  4. Install the ACL outlet pipe. Refer to AIR CLEANER OUTLET PIPE .

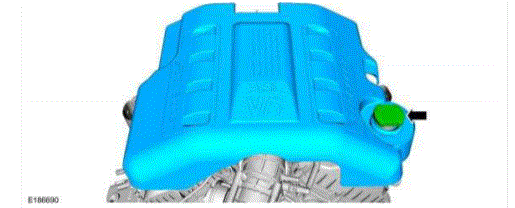

  5. Install the engine appearance cover.
    G00596487Courtesy of FORD MOTOR CO.

    6. 4x2

  6. Install the underbody shield and retainers
    G00596486Courtesy of FORD MOTOR CO.
