Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

    Apply a 5 mm (0.196 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 cylinder block/oil pan joints.

    G08621843
  2. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.
    NOTE: The stamped steel crankshaft rear seal retainer plate comes with the crankshaft rear seal.

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.

    G08621844
  3. NOTE: Use the 2 handles during installation to avoid touching the sealant.
    NOTE: Lubricate the crankshaft rear seal with clean engine oil.

    Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer. Tilt the seal retainer up and onto the rear of the cylinder block.

    G09069422
  4. Install the 8 crankshaft rear seal retainer plate bolts. Tighten in the sequence shown in illustration.
    • Tighten to 10 Nm (89 lb-in).
      G09069423
  5. Install the 2 oil pan-to-crankshaft rear seal retainer plate bolts.
    • Tighten to 10 Nm (89 lb-in) plus an additional 45 degrees.
      G08337855
  6. If equipped, install the skid plate and the 4 bolts.
    • Tighten to 48 Nm (35 lb-ft).
      Fig 1: Locating Skid Plate Bolts
      G06170373Courtesy of FORD MOTOR CO.
  7. Install the CKP  sensor and the bolt.
    • Tighten to 10 Nm (89 lb-in).
      Fig 2: Locating CKP Sensor And Bolt
      G07958909Courtesy of FORD MOTOR CO.
  8. Connect the CKP  sensor electrical connector.
    Fig 3: Locating CKP Sensor Electrical Connector
    G06270181Courtesy of FORD MOTOR CO.
  9. Install the wiring harness grommet.
    Fig 4: Locating Wiring Harness Grommet
    G07958907Courtesy of FORD MOTOR CO.
  10. Position back the CKP  heat shield. Install the nut and bolt.
    • Tighten to 10 Nm (89 lb-in).
      Fig 5: Locating CKP Heat Shield Bolt And Nut
      G07958906Courtesy of FORD MOTOR CO.

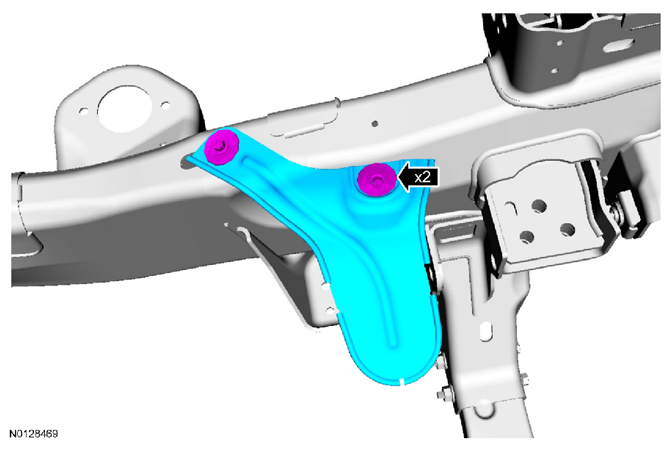

  11. If equipped, install the exhaust system heat shield and the 2 bolts.
    • Tighten to 20 Nm (177 lb-in).
      G08336861
  12. Install the engine-to-transmission spacer plate.
    G07959030
  13. Install the crankshaft sensor ring.
    G08029522
  14. Install the flexplate. Refer to FLEXPLATE .
  15. After completing the repairs, use the scan tool to preform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
