Wheel Bearing and Wheel Hub: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the original wheel bearing and wheel hub is being installed, install a new wheel hub O-ring seal or damage to the wheel bearing may occur.

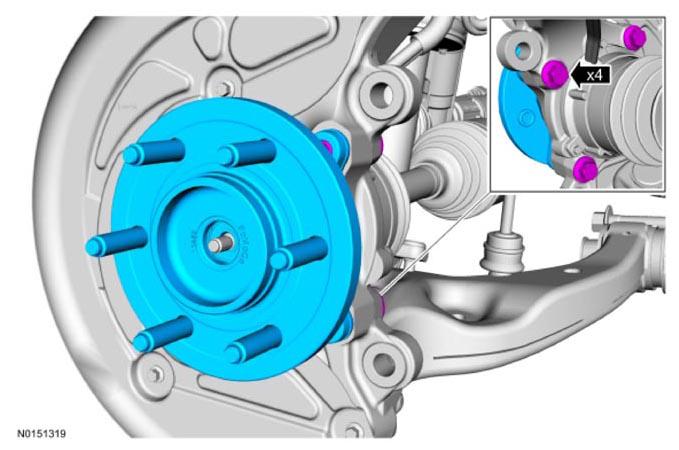

- Tighten to 175 Nm (129 lb-ft).
NOTE: Measure the depth of the Constant Velocity (CV) shaft threaded end to the inner bearing race (shown in illustration). The minimum depth is 15.5 mm (0.61 in). If the depth is less than 15.5 mm (0.61 in) rotate the CV shaft to clear a binding condition between the Integrated Wheel End (IWE) and CV splines. Installing the axle nut and tightening without the proper depth of protrusion will result in damage to the IWE .

Measure the CV shaft threaded end to the inner bearing race.
NOTE: Verify the spline engagement by checking for spline lash before installing the axle nut or component damage may occur.
- Tighten to 40 Nm (30 lb-ft).
Install the brake disc. Refer to FRONT DISC BRAKE .
- Tighten to 12 Nm (106 lb-in).
Install the wheel and tire. Refer to WHEELS AND TIRES .

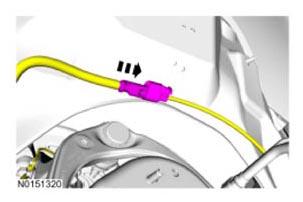

NOTE: The wheel speed sensor electrical connector is located in the engine compartment secured to the fender apron.
