Lower Arm: Removal
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
All vehicles
- Measure the distance from the center of the hub to the lip of the fender with the vehicle in a level, static ground position (curb height).
- Remove the wheel and tire. Refer to WHEELS AND TIRES
.
All except SVT Raptor
-

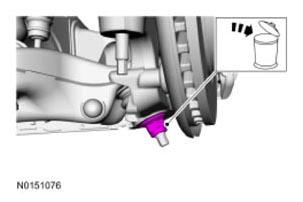

NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.
SVT Raptor
-

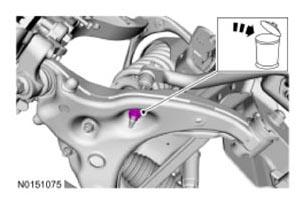

NOTE: Use the hex-holding feature to prevent the stud from turning while removing the nut.
All vehicles
-

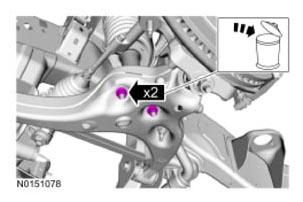

NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result.NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.
Special Tool(s): Separator, Ball Joint 204-592.
