Ball Joint - Lower: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the wheel knuckle. Refer to WHEEL KNUCKLE .

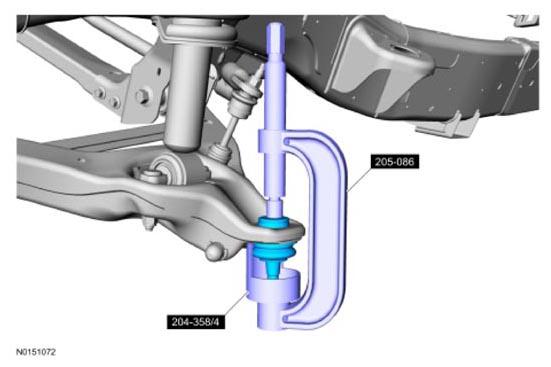

Special Tool(s): Installer/Remover, C-Frame and Screw 205-086. Remover, Ball Joint 204-358/4.

SVT Raptor
Materials: Motorcraft® Metal Surface Prep ZC-31-A.
NOTE: If there is evidence of cracks or damage, a new lower arm must be installed.
