Tire Pressure Monitor (TPM) Module: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

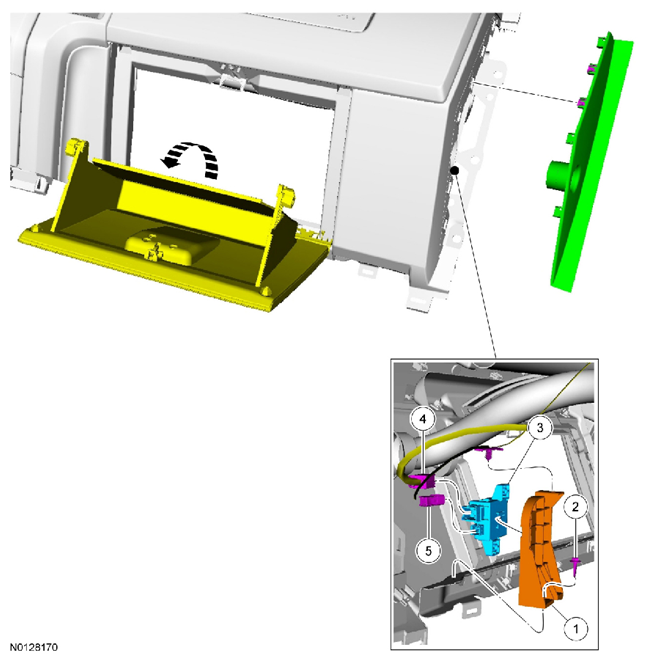

| Item | Part Number | Description |
|---|---|---|
| 1 | 19A435 | TPMS module mounting bracket |
| 2 | W707628 | TPMS screw (1 required) |
| 3 | 15K602 | Tire Pressure Monitoring System (TPMS) module |
| 4 | - | TPMS module electrical connector (part of 14401) |
| 5 | - | External antenna coax connector |
