Service Action Icons
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Service action icons may be used to add information regarding the required action. Refer to SYMBOLS GLOSSARY .

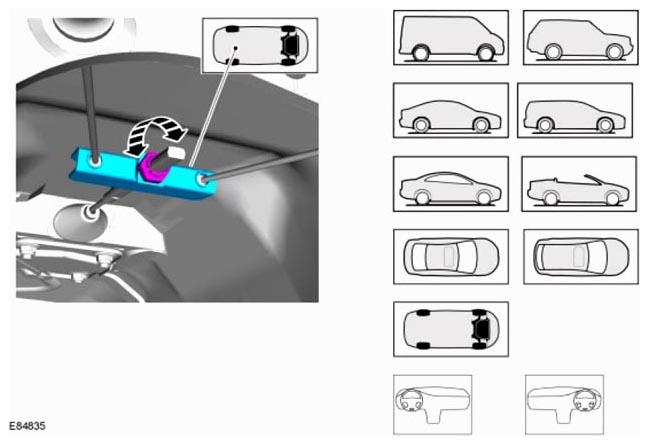

Location symbols show the location of a component or system on the vehicle.
Example of service action icons pointing to highlighted components

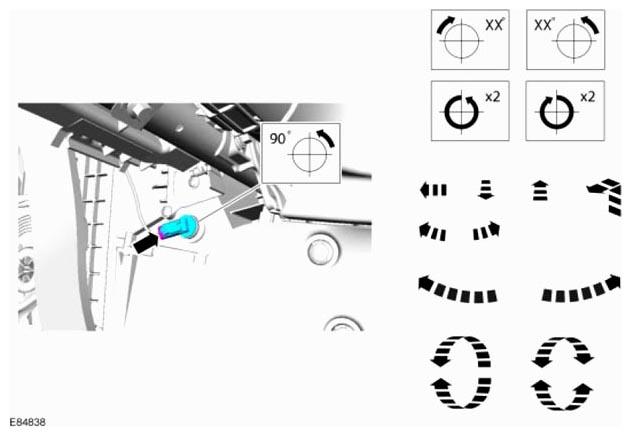

Movement arrows and service action icons show three dimensional or rotational movements.

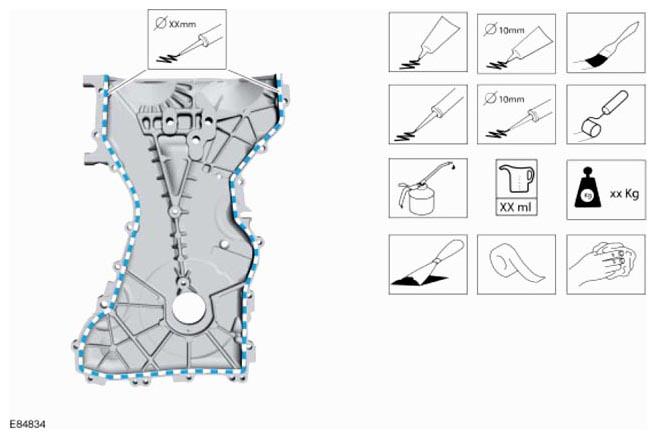

Color-coding and service action icons show application of sealer, lubricant, weight, tape or cleaning liquid.

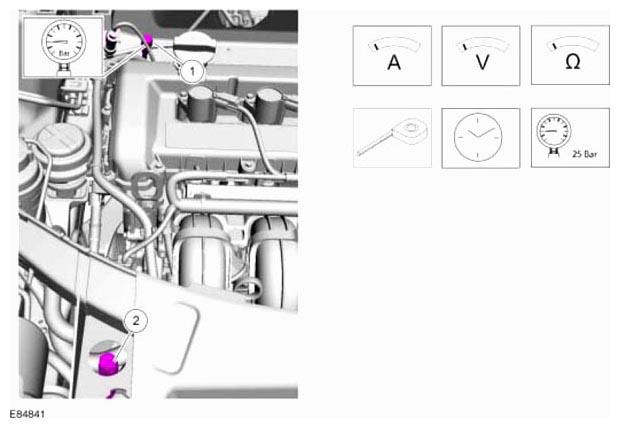

Measurement symbols provide the information required to perform a specific measurement. These symbols may include specific values.
