LH (left-hand) and RH (right-hand) Designations

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All LH and RH vehicle designations are oriented from the driver's seat position looking forward.

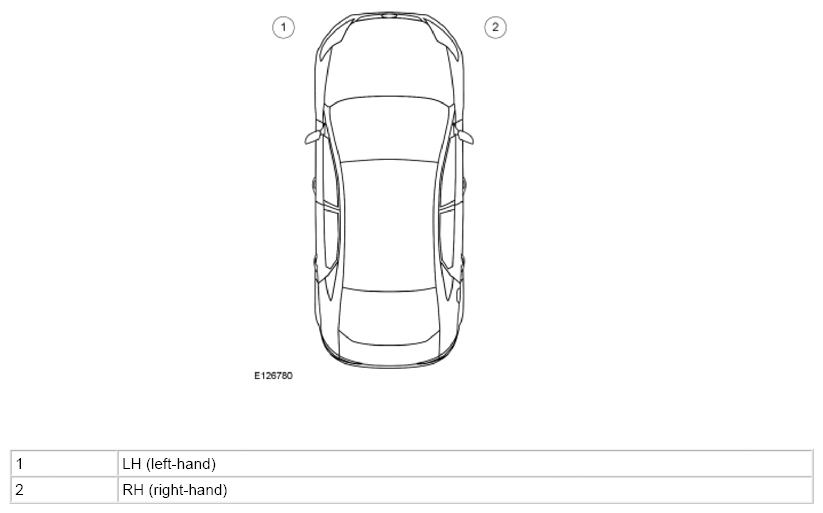

Vehicle LH and RH definition

Fig 1: Identifying LH (Left-Hand) And RH (Right-Hand) Designations
G09537421Courtesy of FORD MOTOR CO.

All LH and RH engine designations are oriented from the flywheel position looking toward the crankshaft pulley.

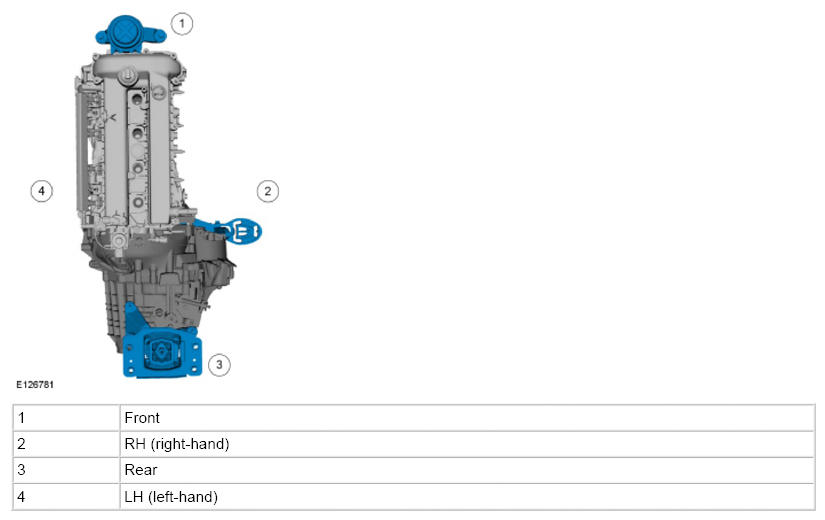

Powertrain LH and RH definition

G09537422
