Section 516 (OEM Component Harness Location Views)
>>
Component Location Views
Component Location Views
WARNING:
This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

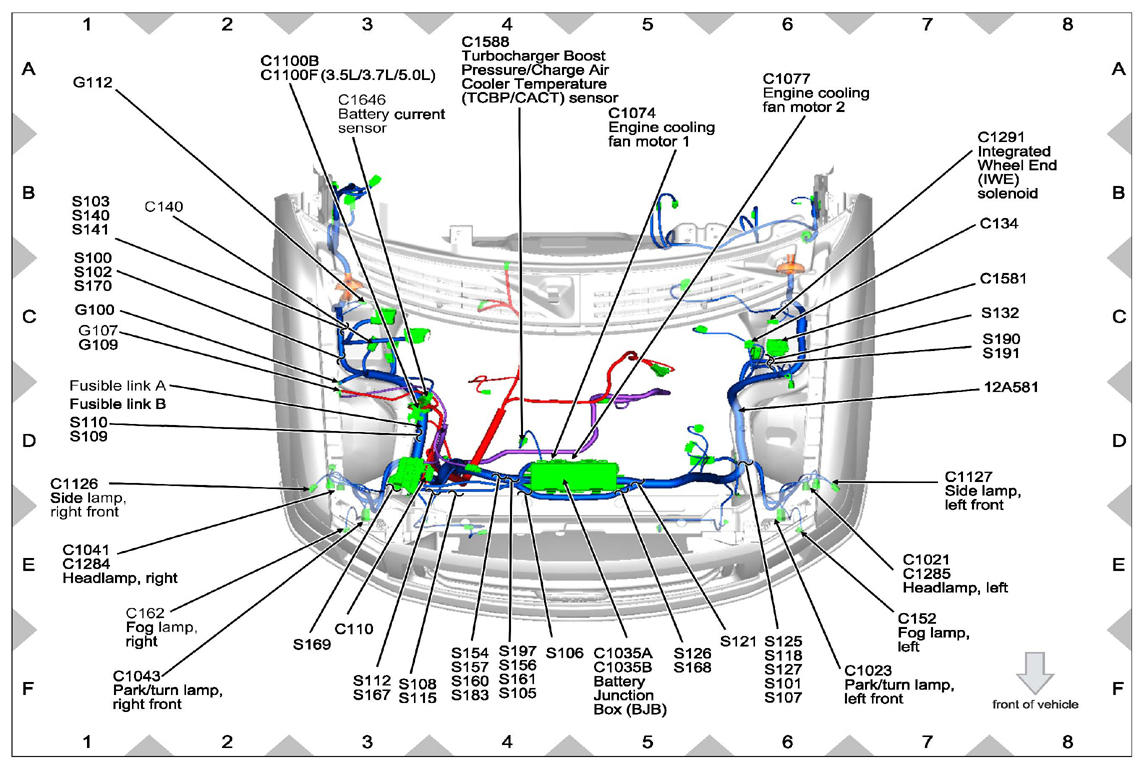

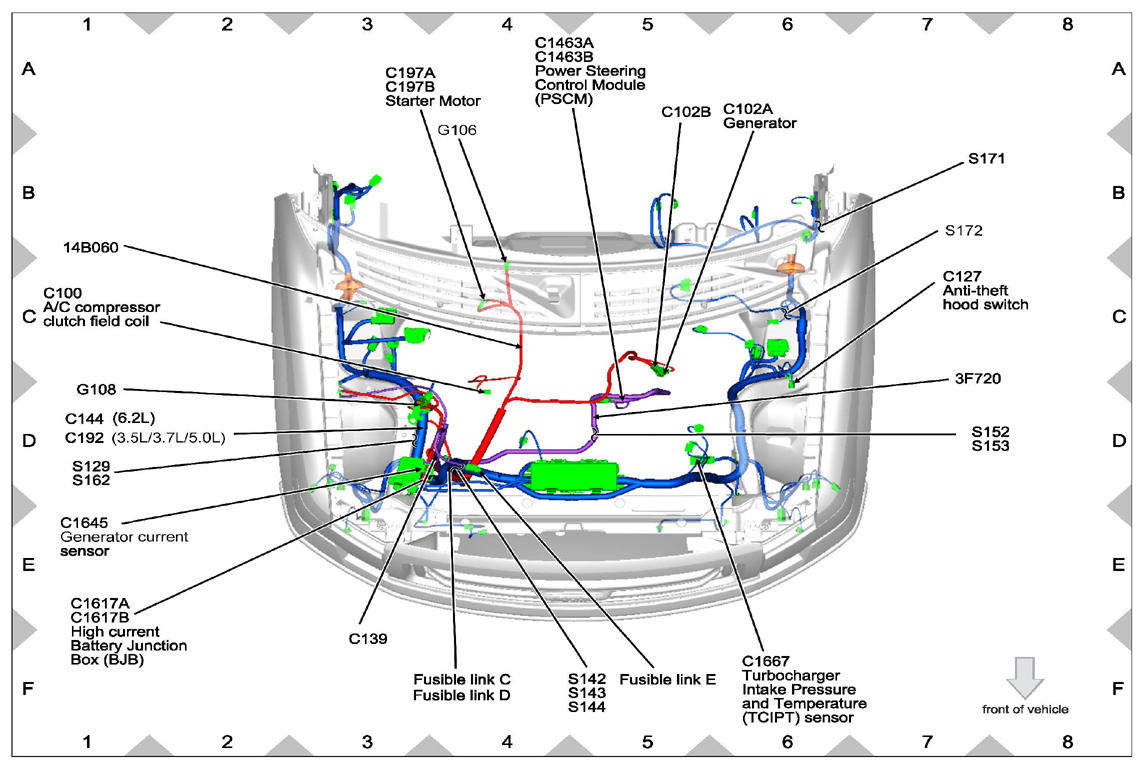

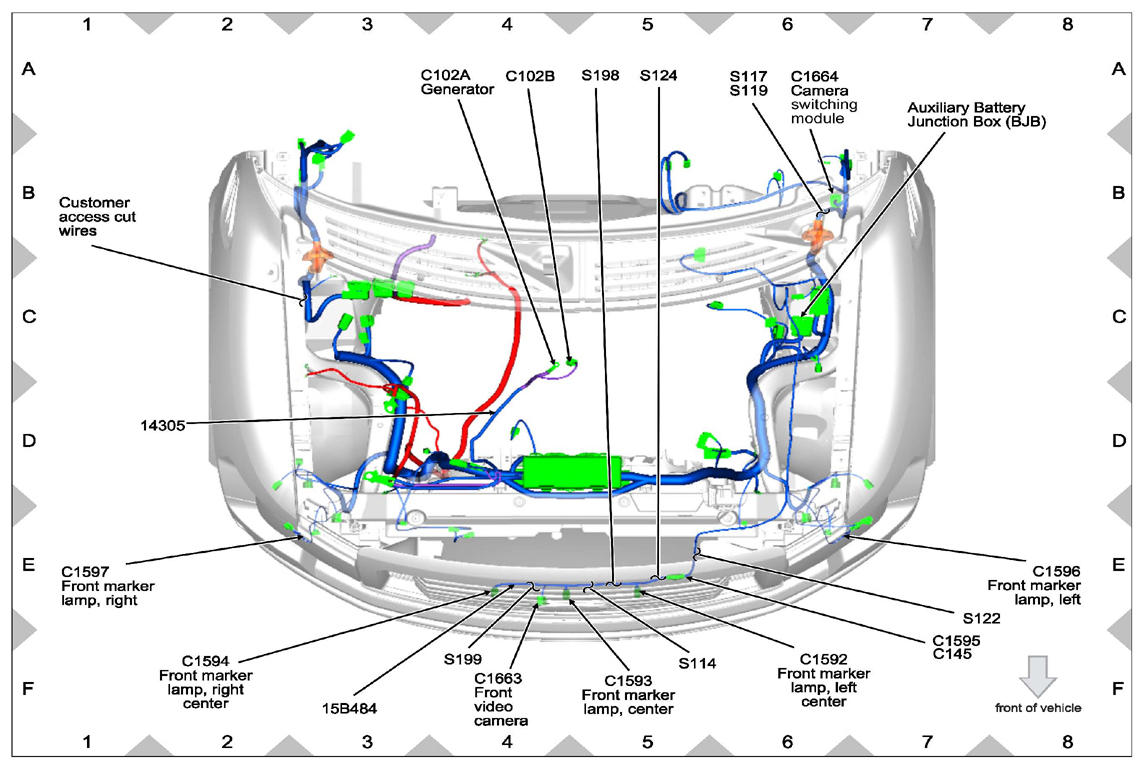

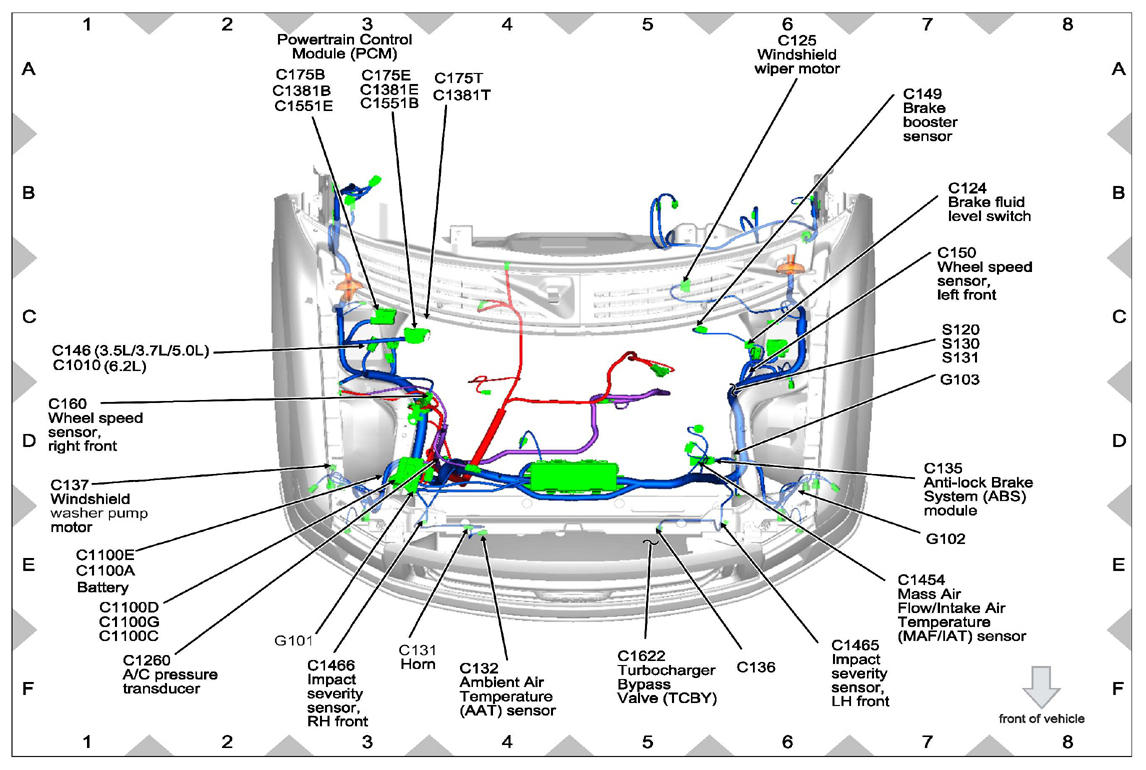

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.
Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

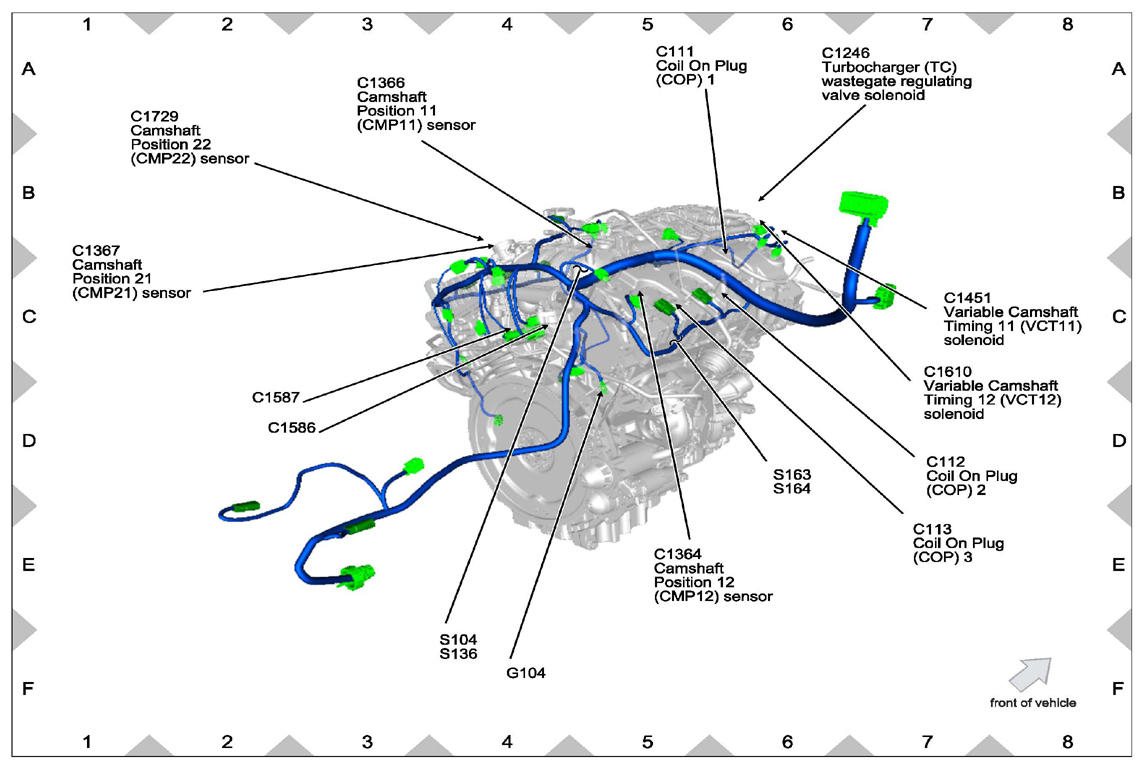

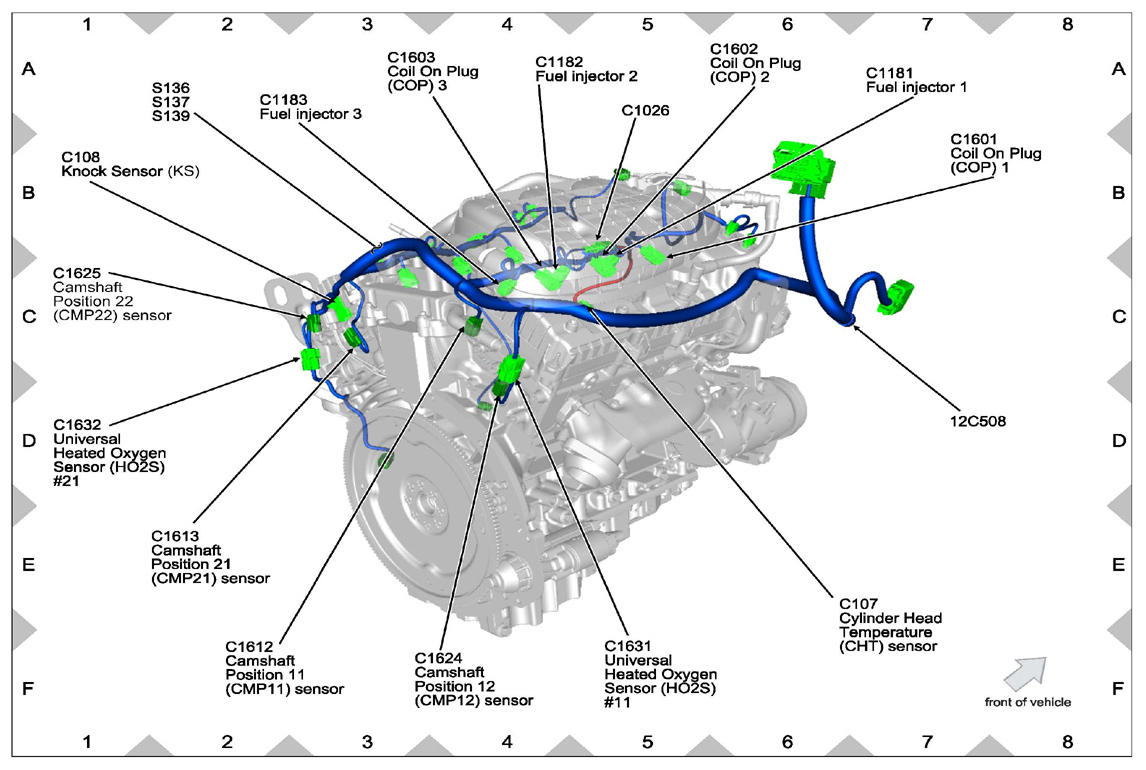

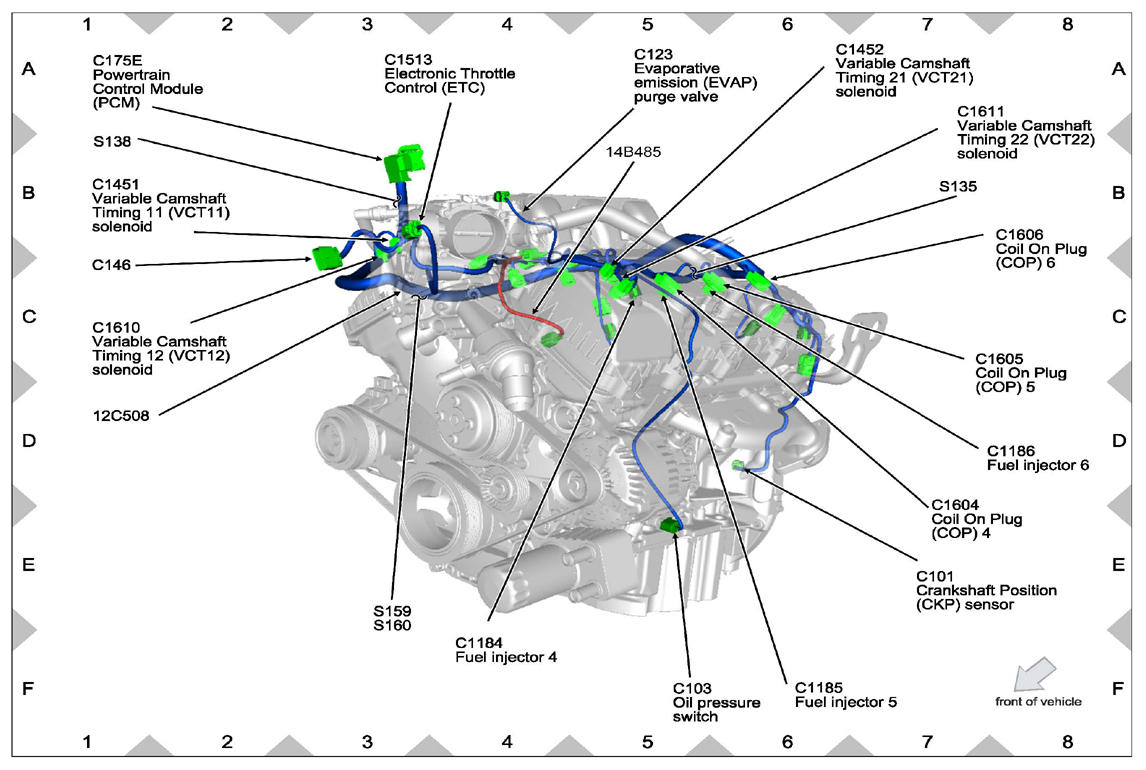

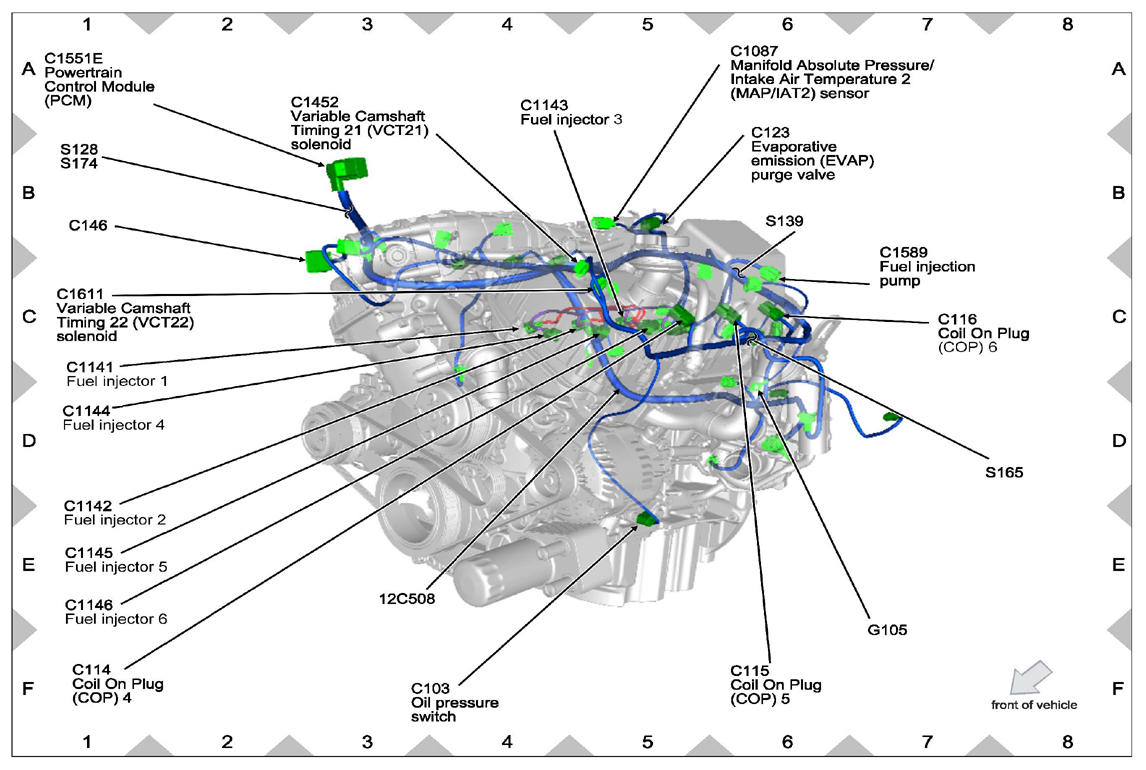

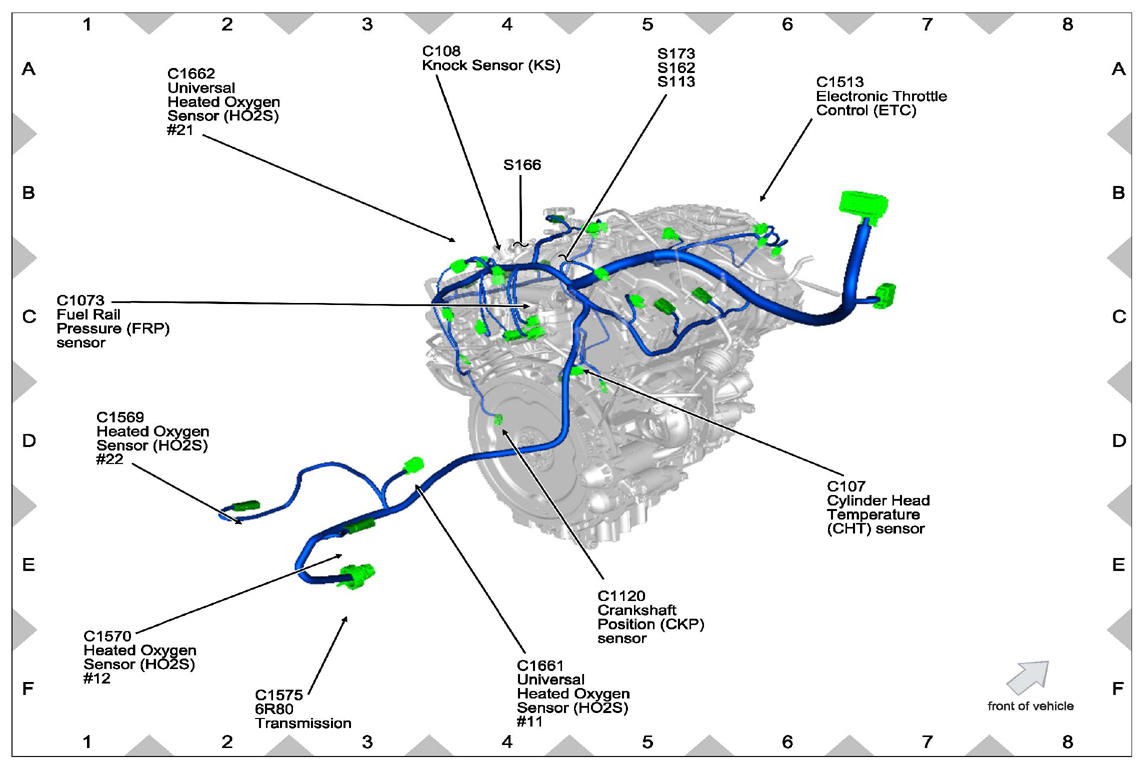

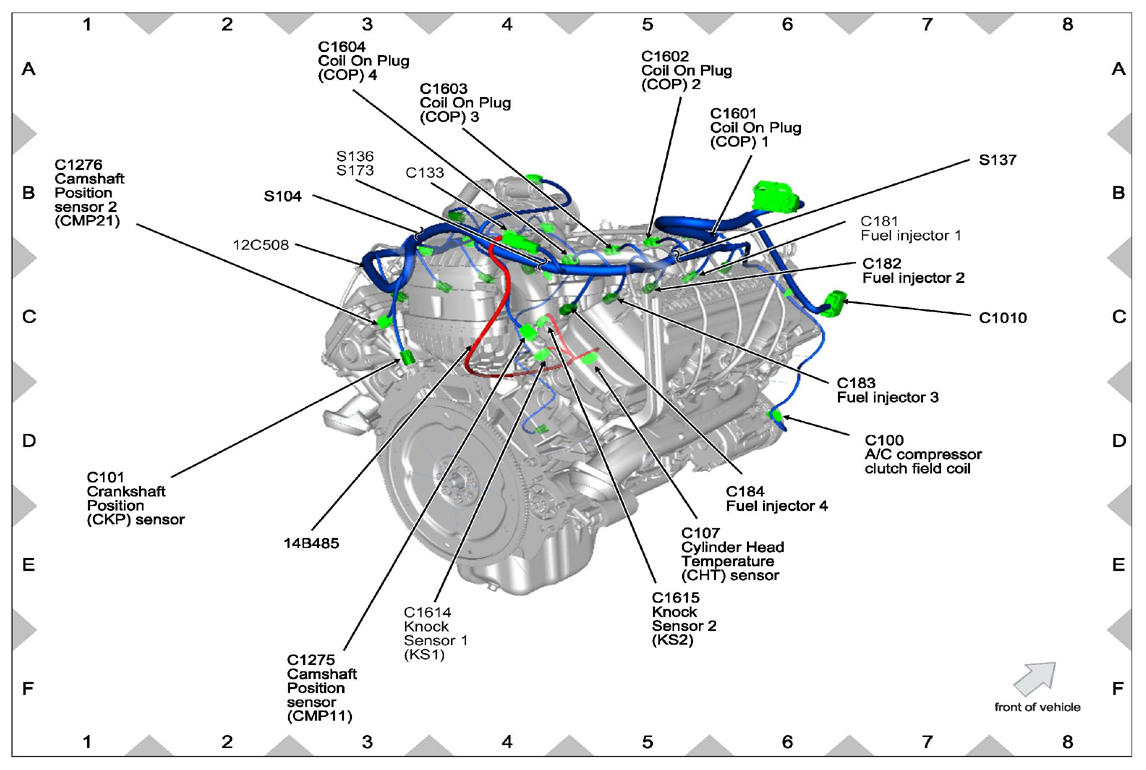

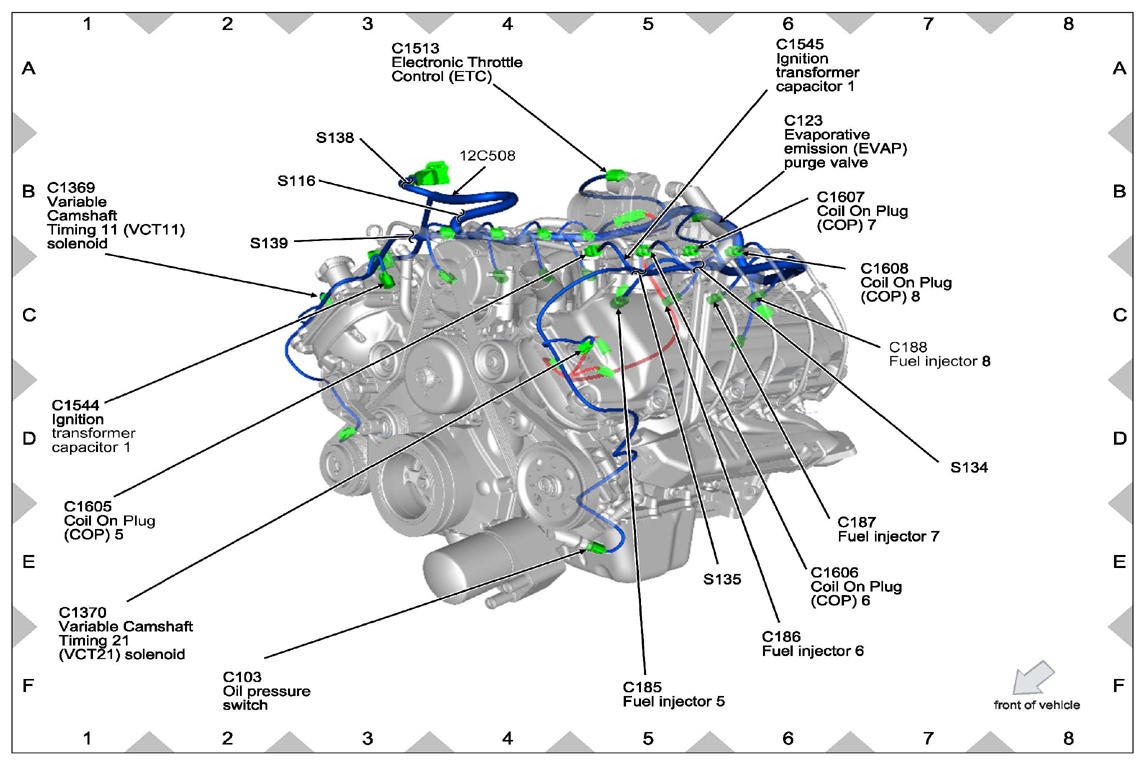

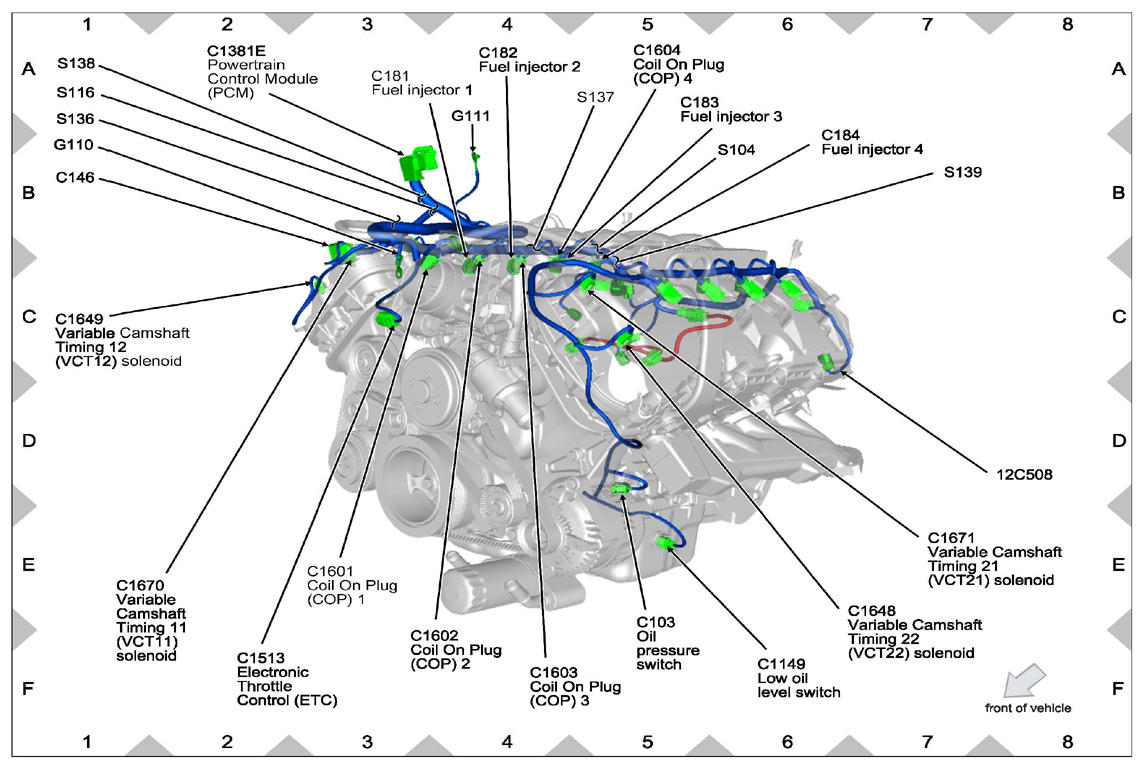

Fig 5: Engine Wiring Harness Connectors Location (1 Of 9)
Courtesy of FORD MOTOR CO.

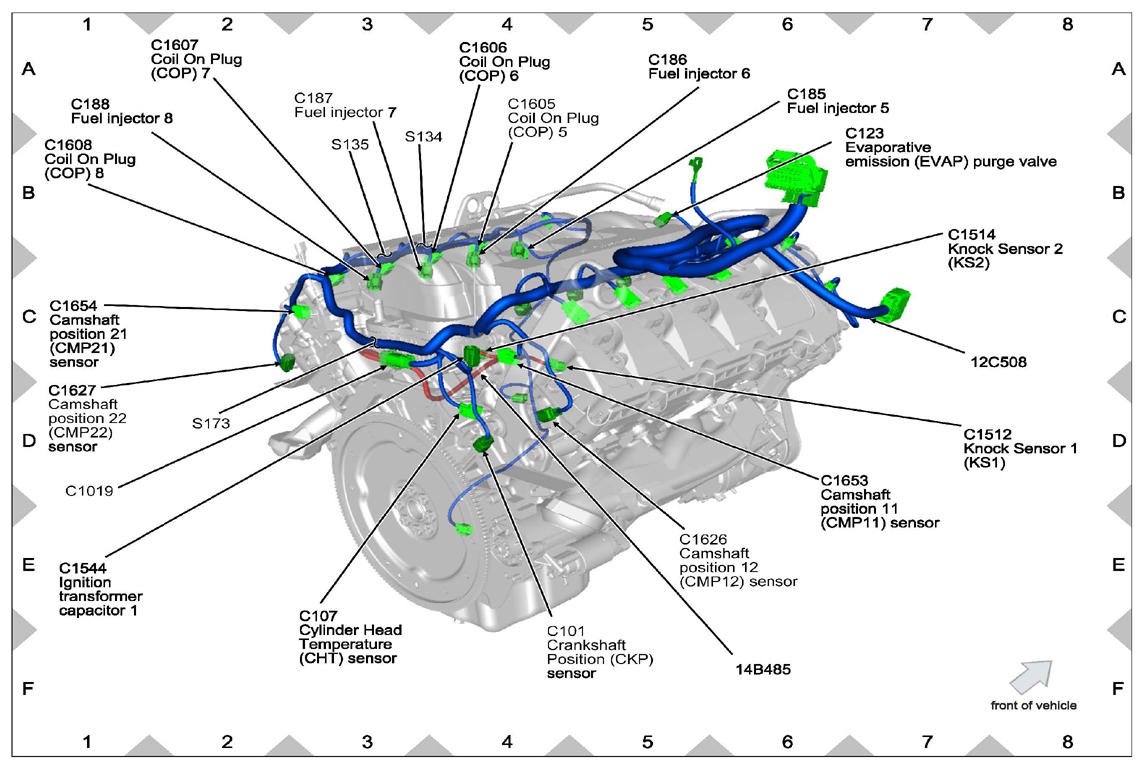

Fig 6: Engine Wiring Harness Connectors Location (2 Of 9)
Courtesy of FORD MOTOR CO.
Fig 7: Engine Wiring Harness Connectors Location (3 Of 9)
Courtesy of FORD MOTOR CO.
Fig 8: Engine Wiring Harness Connectors Location (4 Of 9)
Courtesy of FORD MOTOR CO.
Fig 9: Engine Wiring Harness Connectors Location (5 Of 9)
Courtesy of FORD MOTOR CO.
Fig 10: Engine Wiring Harness Connectors Location (6 Of 9)
Courtesy of FORD MOTOR CO.
Fig 11: Engine Wiring Harness Connectors Location (7 Of 9)
Courtesy of FORD MOTOR CO.
Fig 12: Engine Wiring Harness Connectors Location (8 Of 9)
Courtesy of FORD MOTOR CO.
Fig 13: Engine Wiring Harness Connectors Location (9 Of 9)
Courtesy of FORD MOTOR CO.

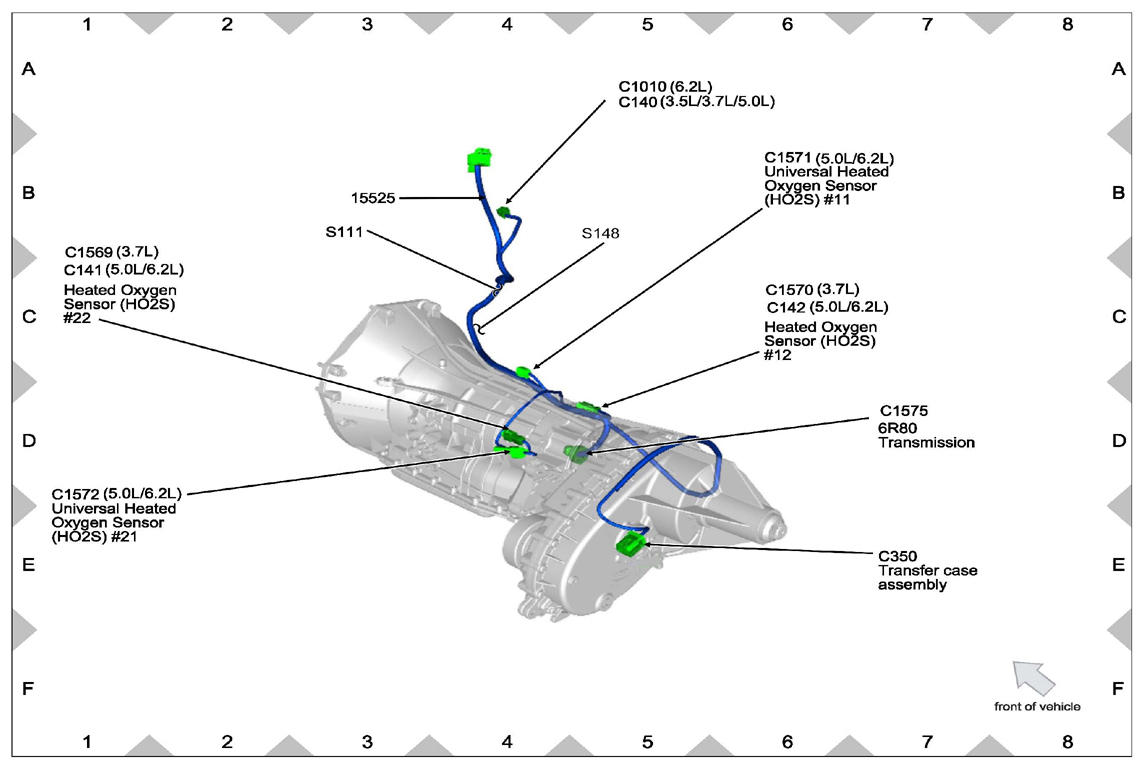

Fig 14: Transmission Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

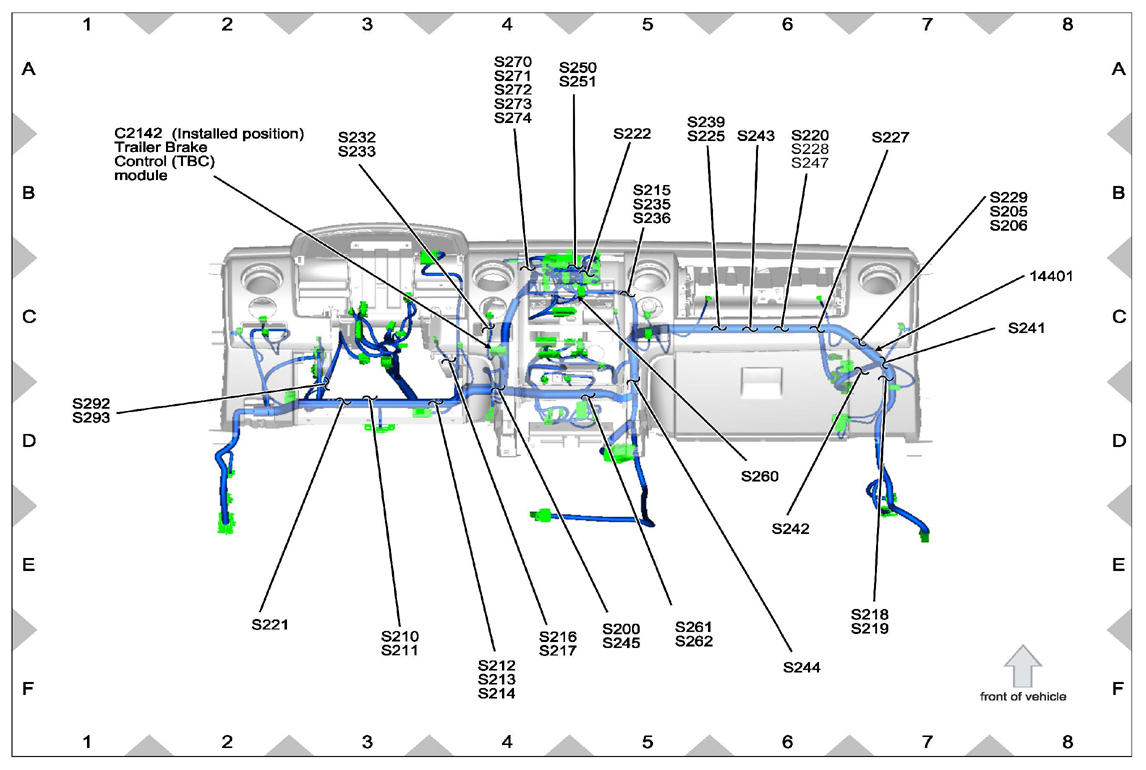

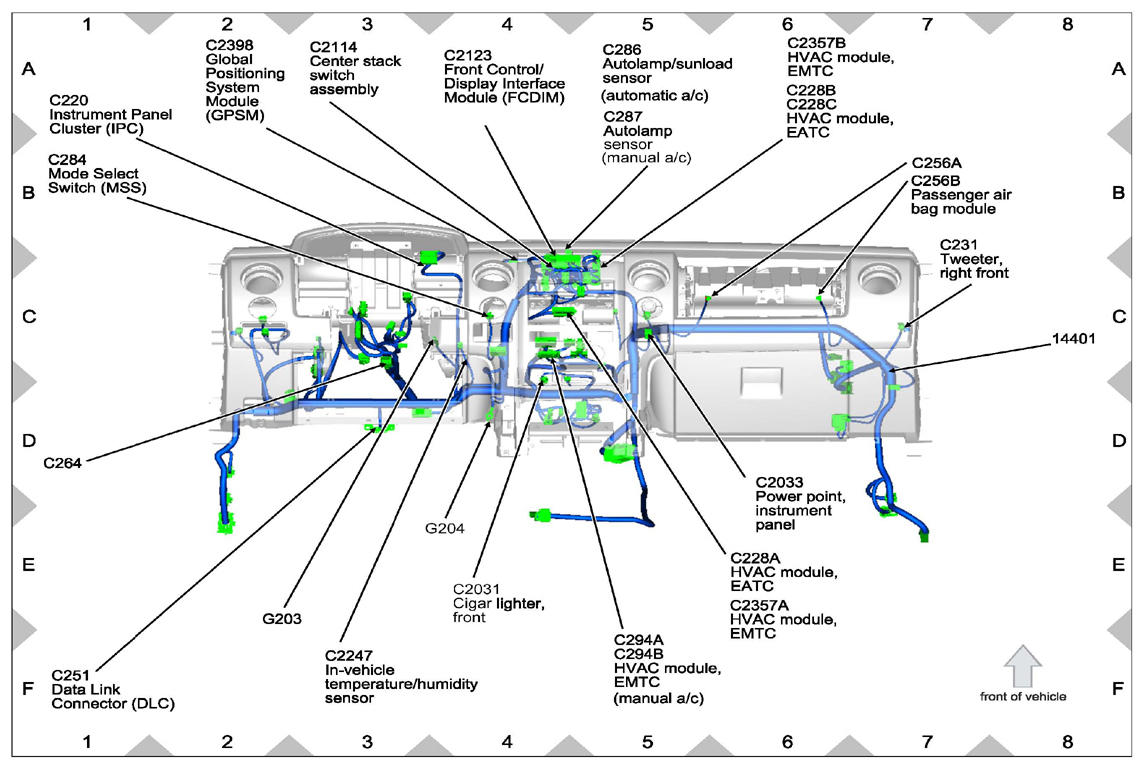

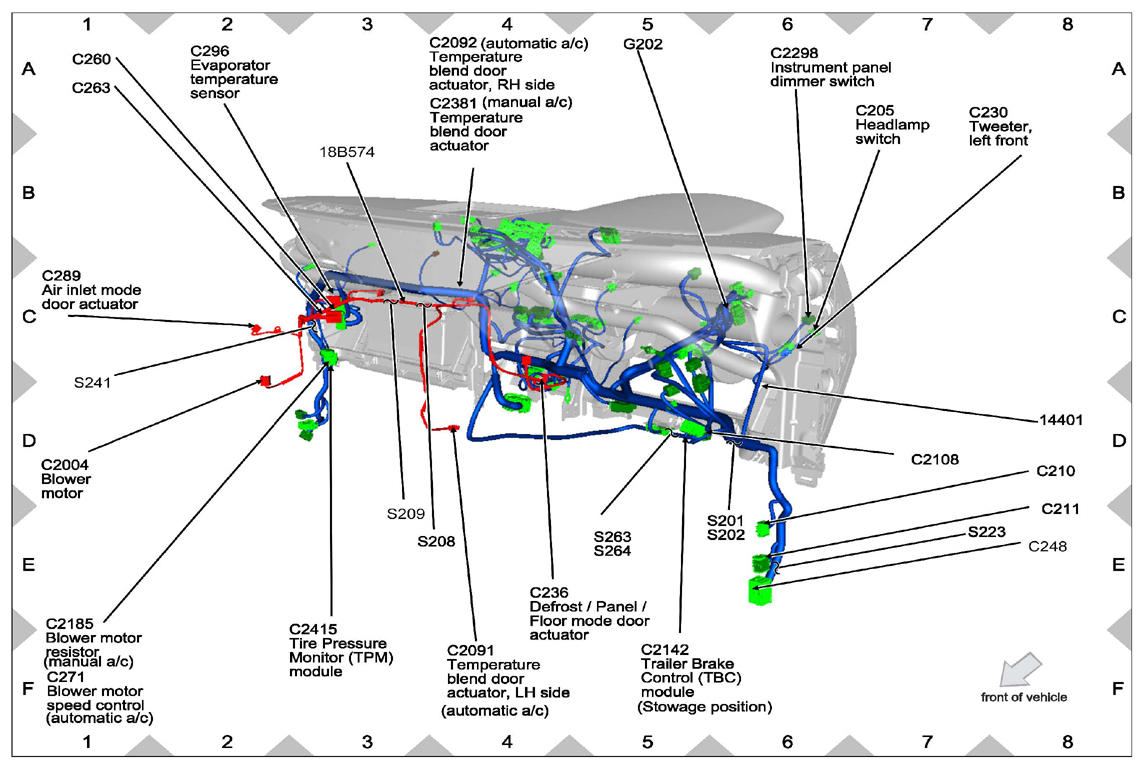

Fig 15: Dashboard Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.

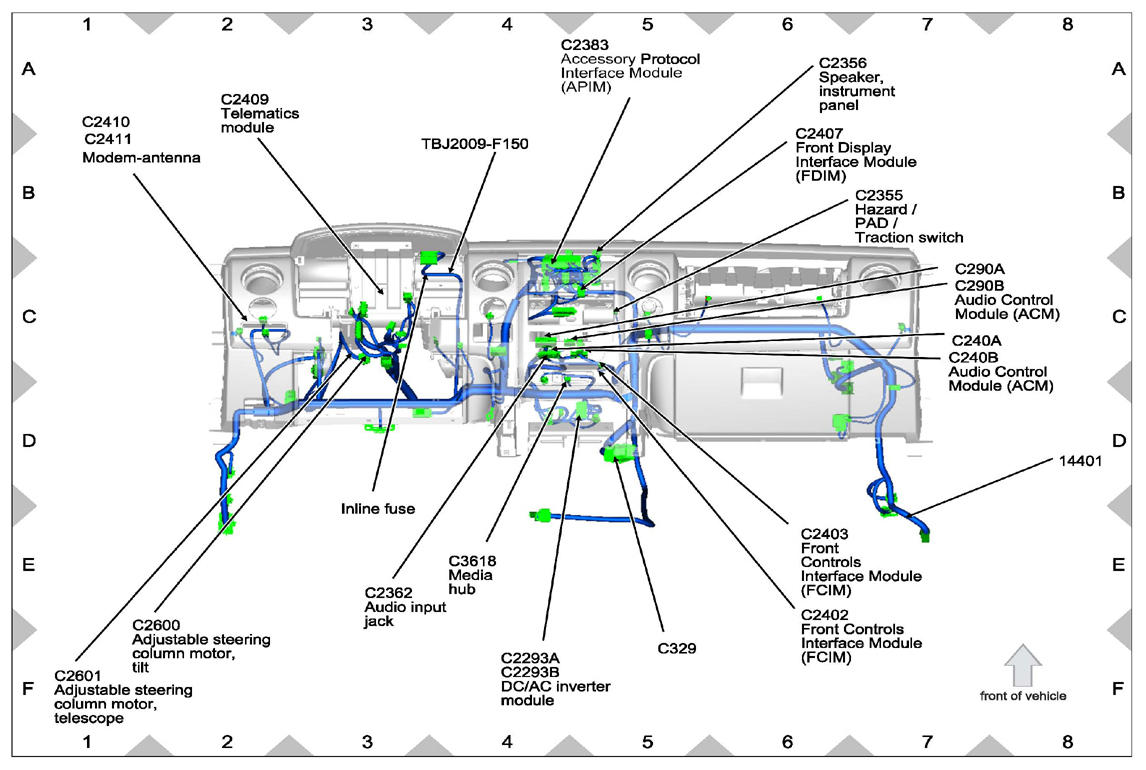

Fig 16: Dashboard Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 17: Dashboard Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 18: Dashboard Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

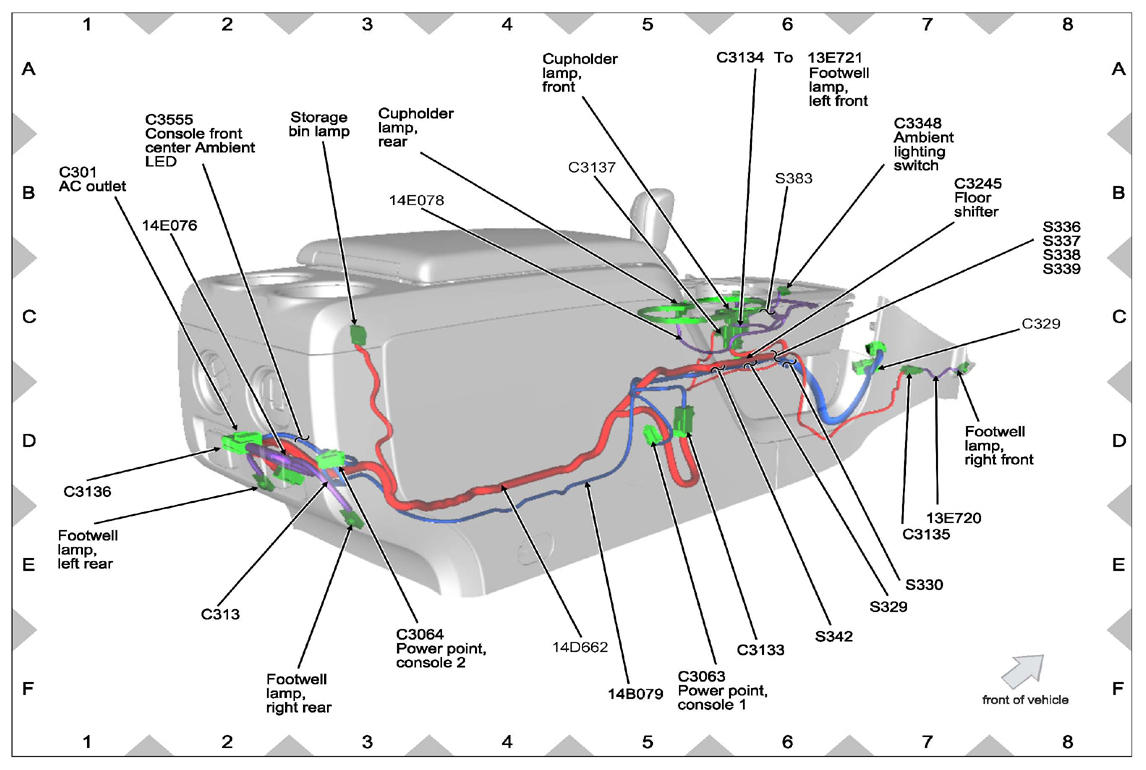

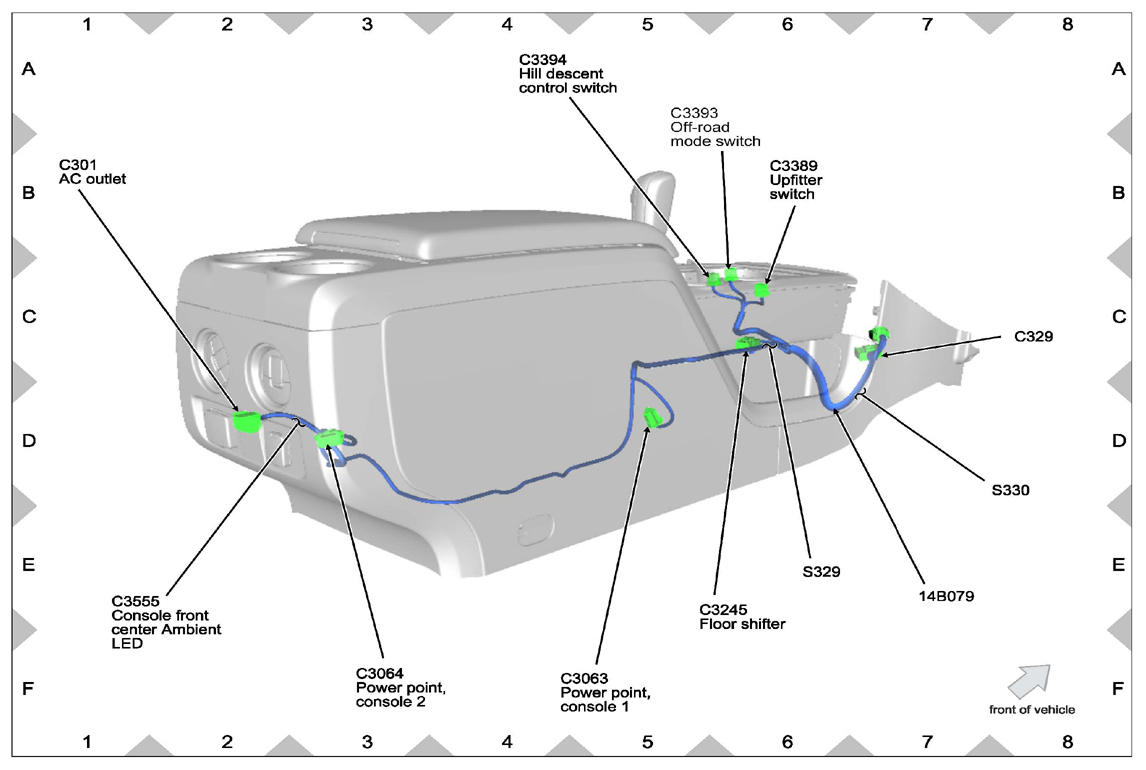

Fig 19: Console Assembly Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 20: Console Assembly Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 21: Parking Brake Switch Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 22: BCM Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

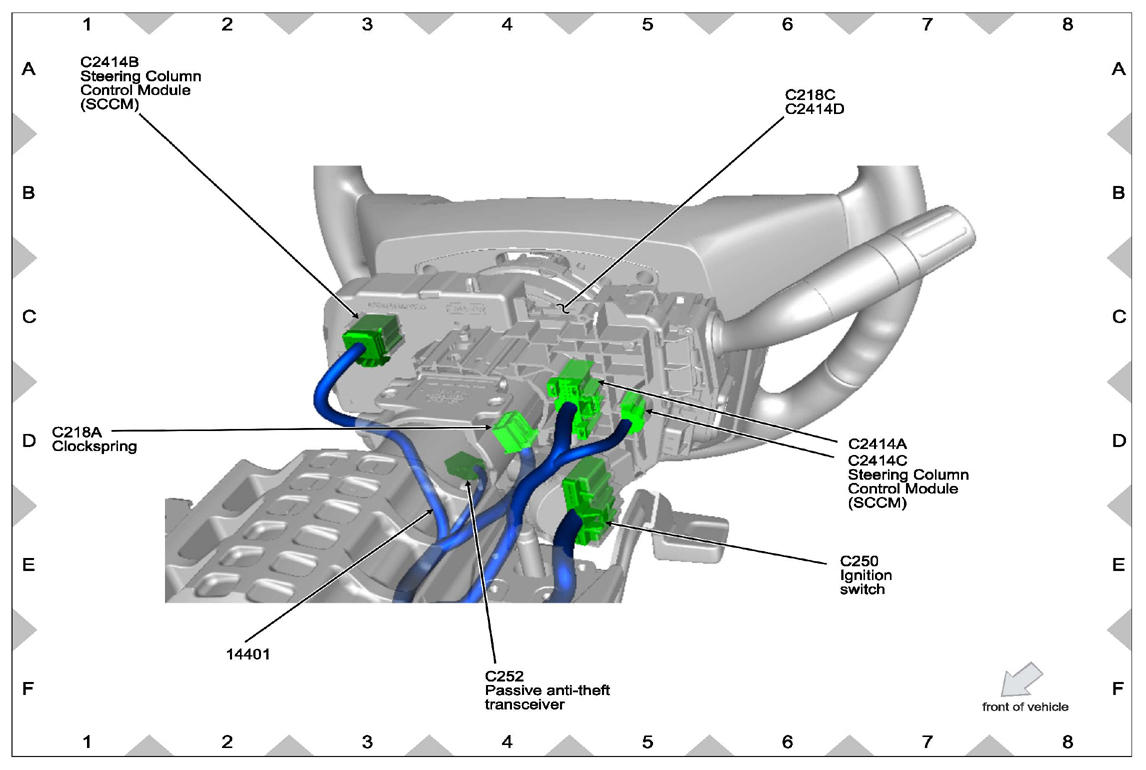

Fig 23: Steering Column Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

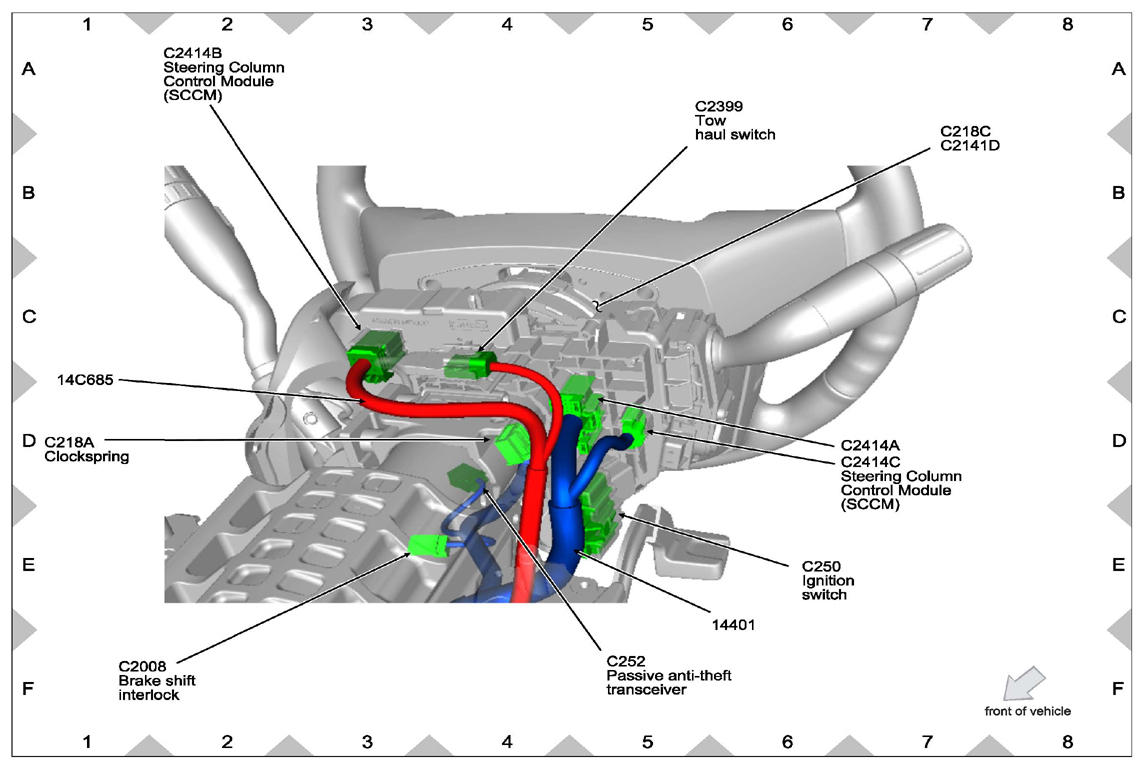

Fig 24: Steering Column Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

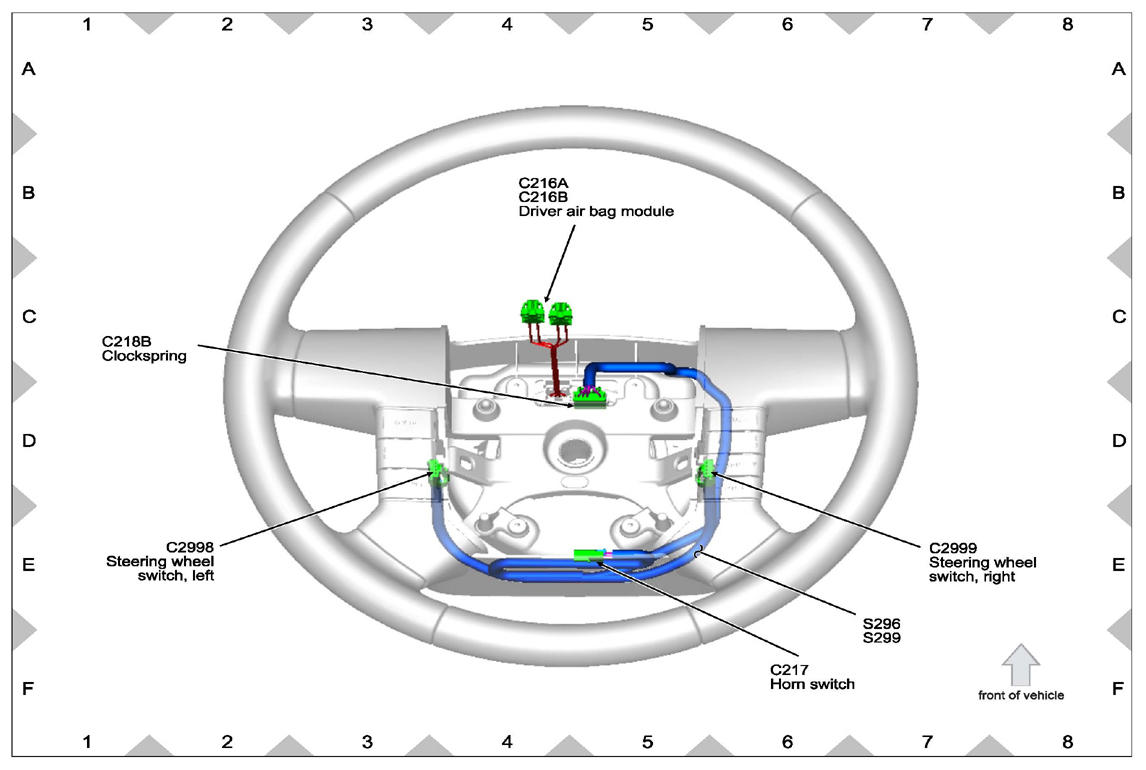

Fig 25: Steering Wheel Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

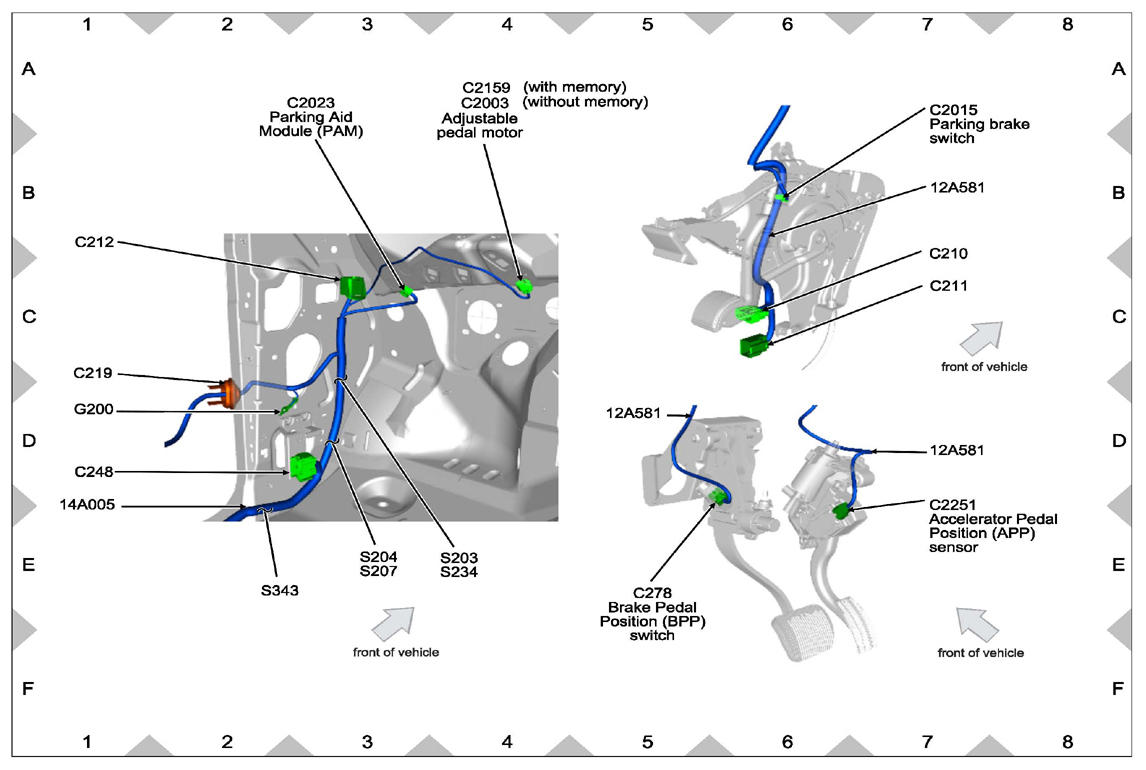

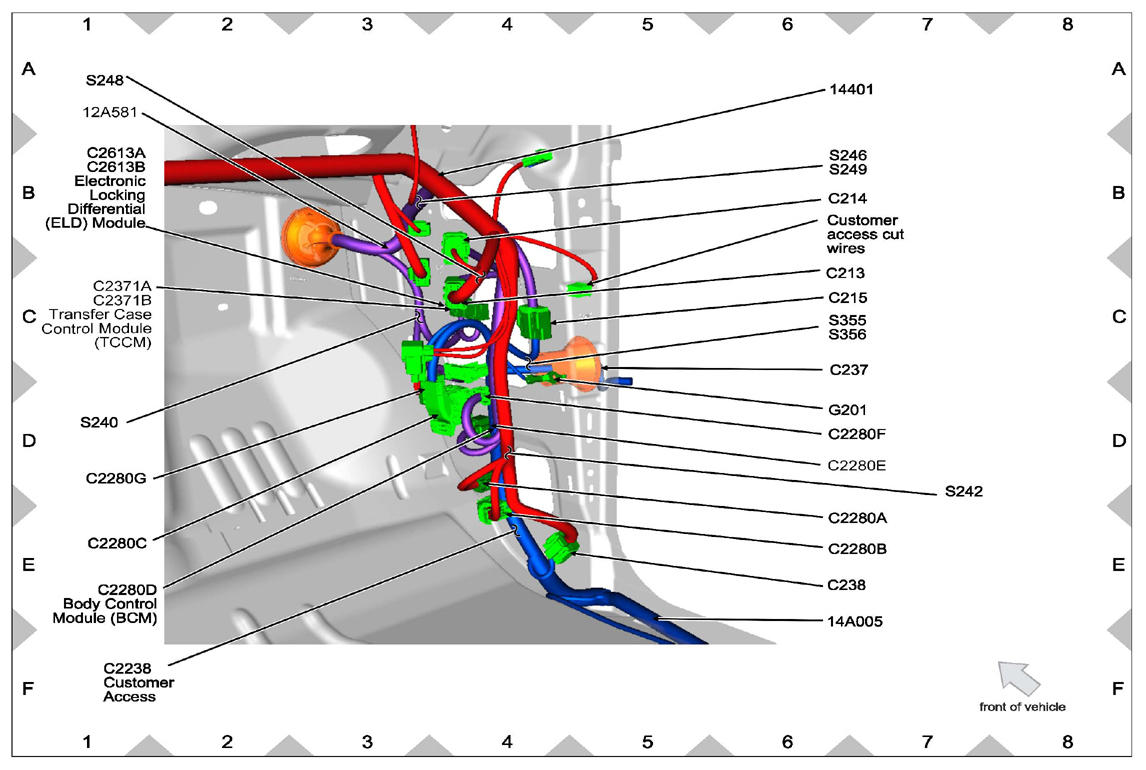

Fig 26: Driver Side Front Compartment Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 27: Driver Side Front Compartment Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 28: Driver Side Front Compartment Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.
Fig 29: Passenger Side Front Compartment Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 30: Passenger Side Front Compartment Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 31: Passenger Side Front Compartment Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

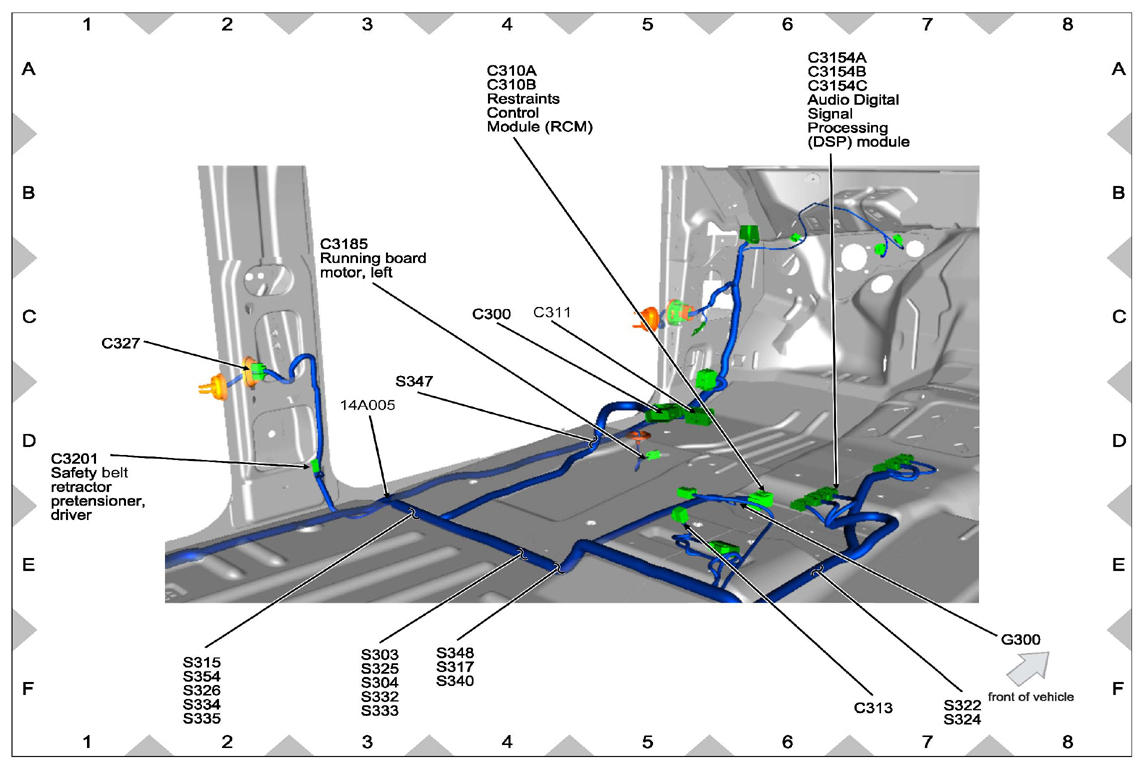

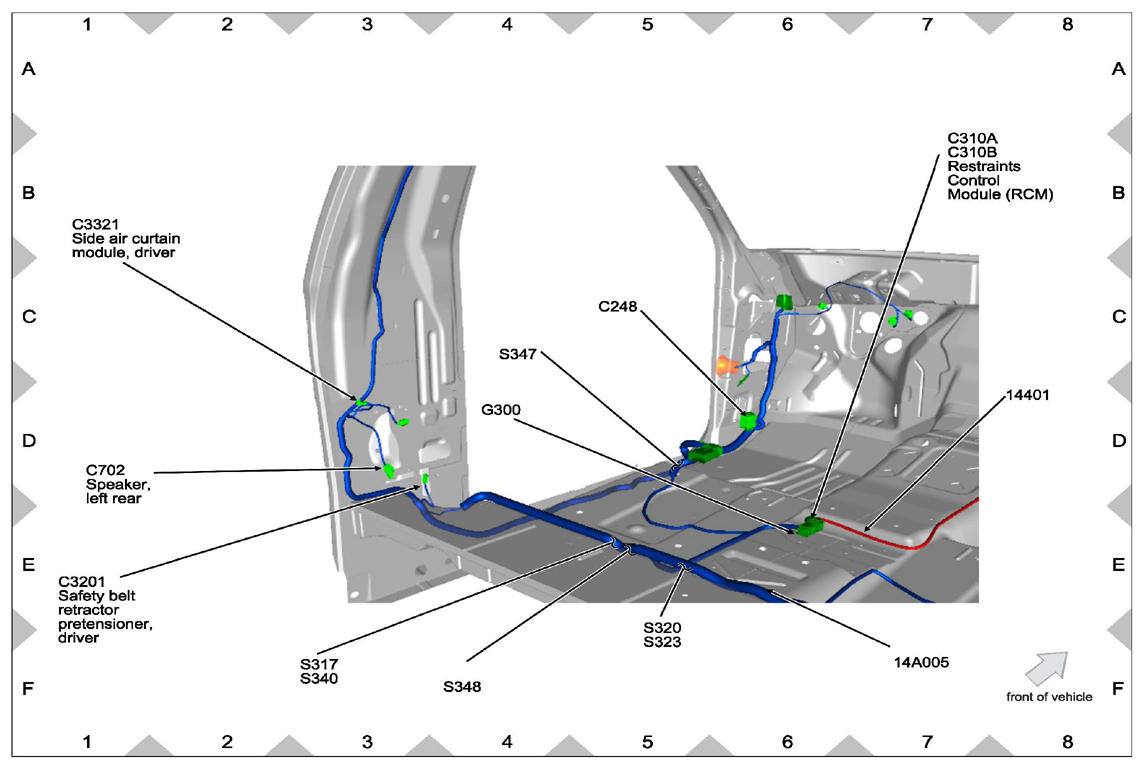

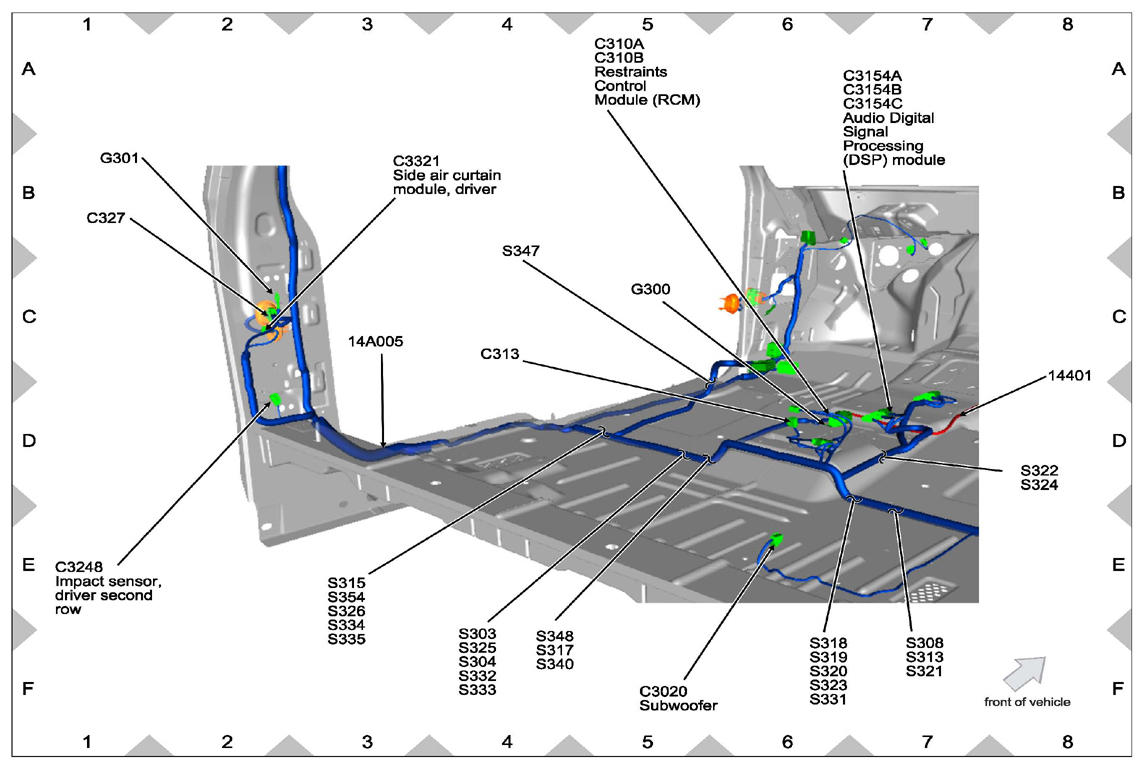

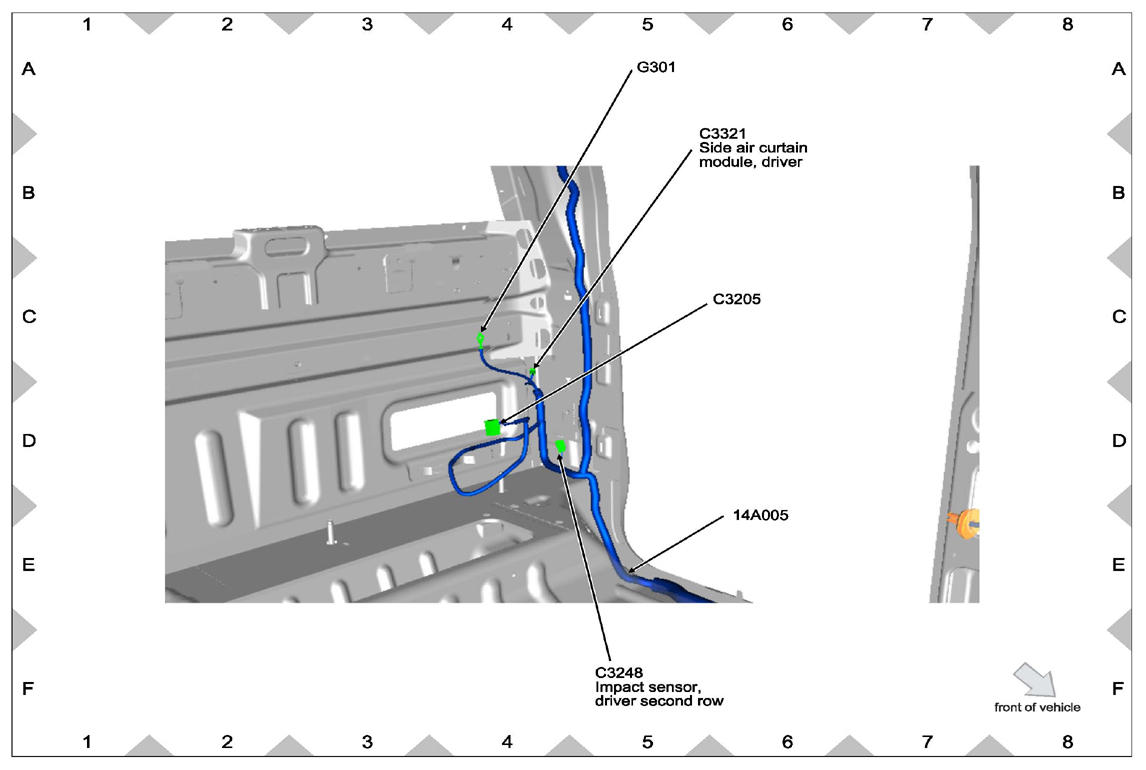

Fig 32: Driver Side Rear Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

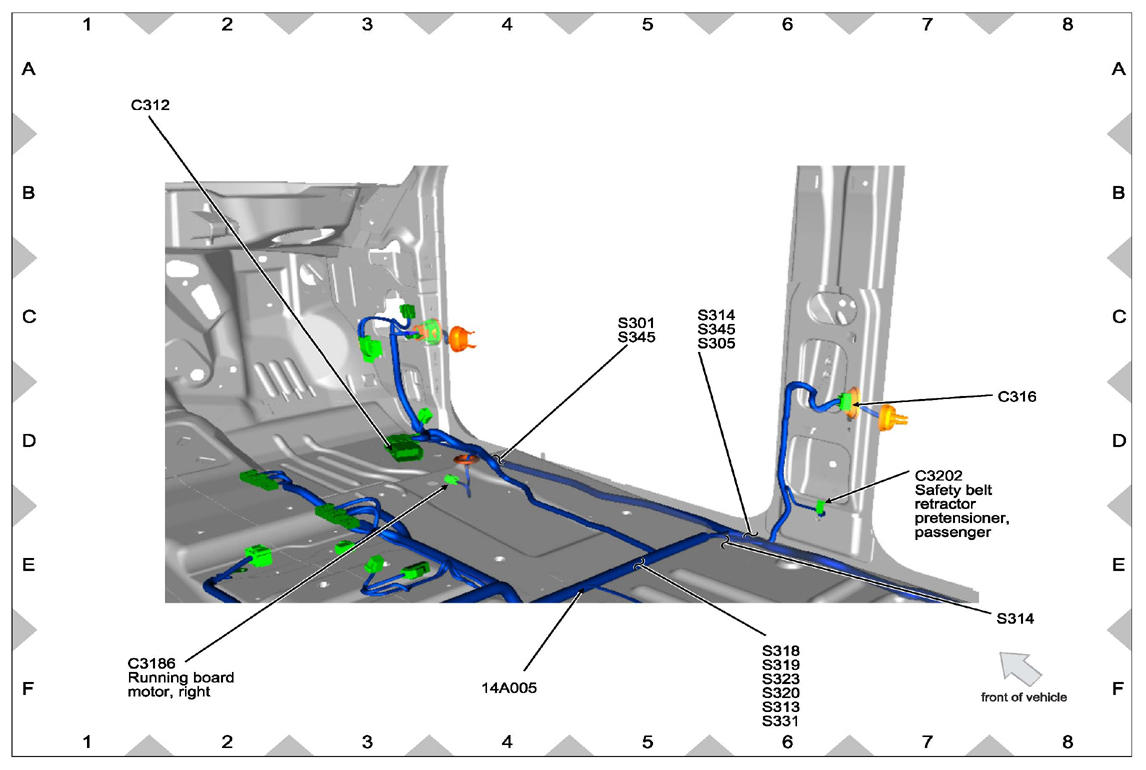

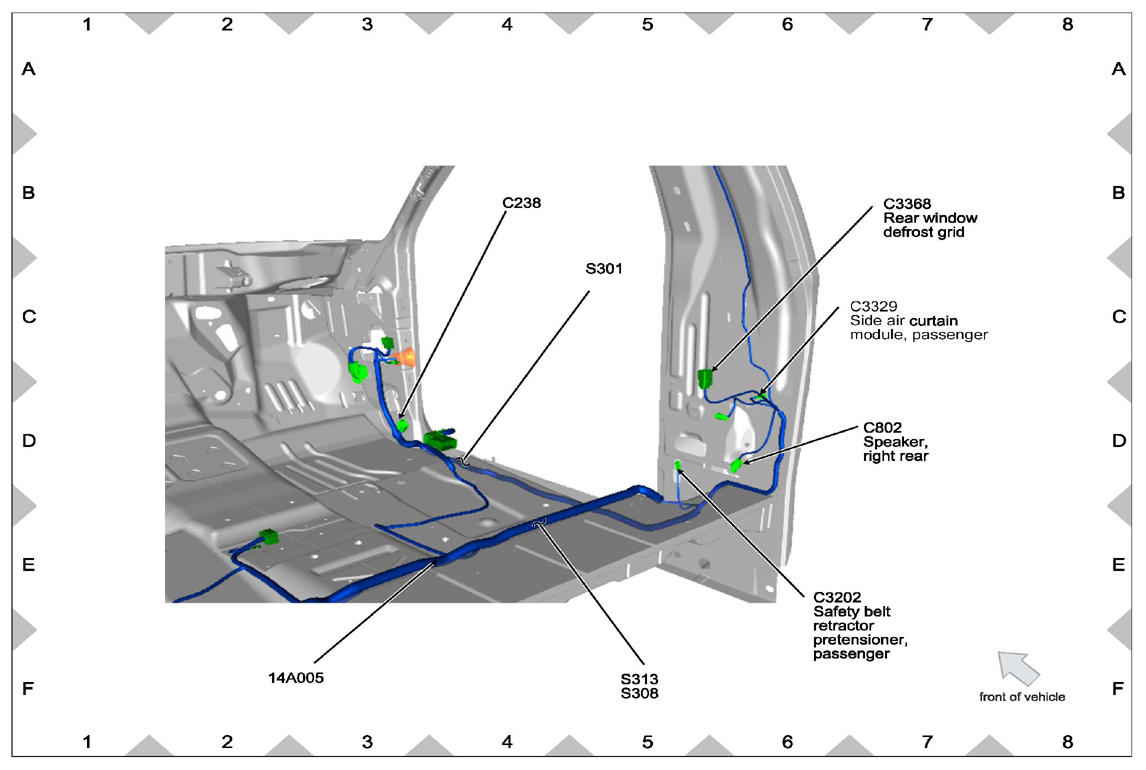

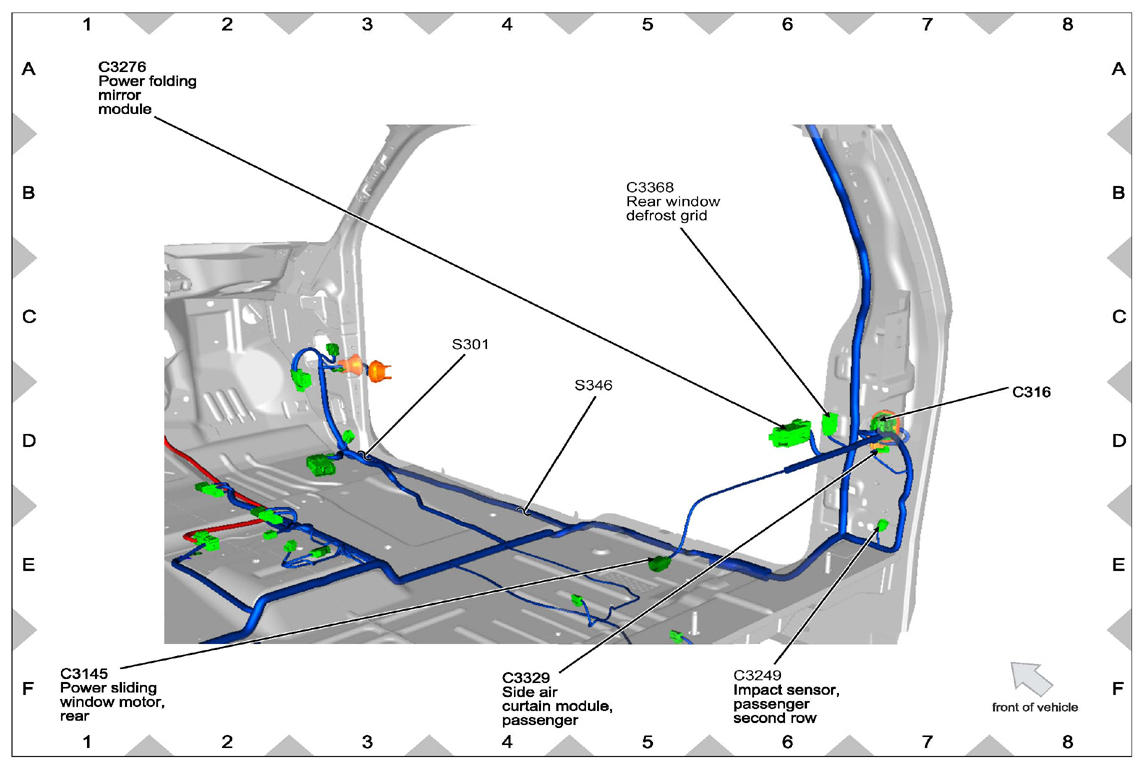

Fig 33: Passenger Side Rear Compartment Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

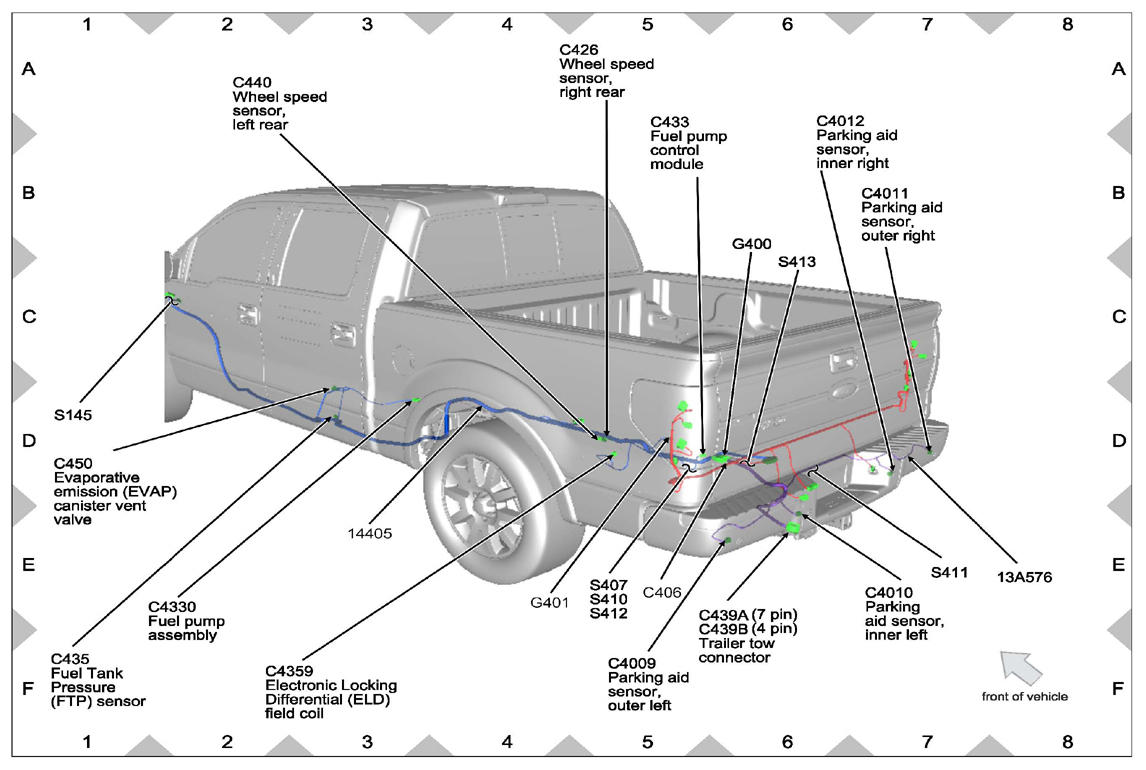

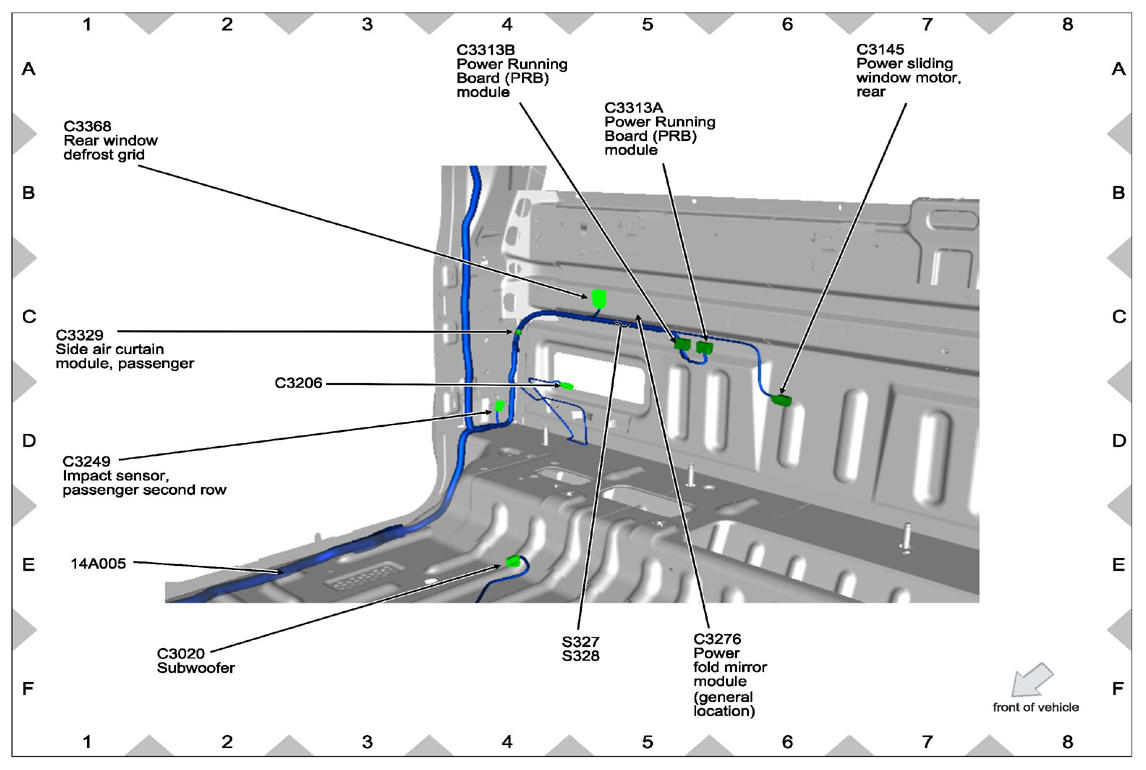

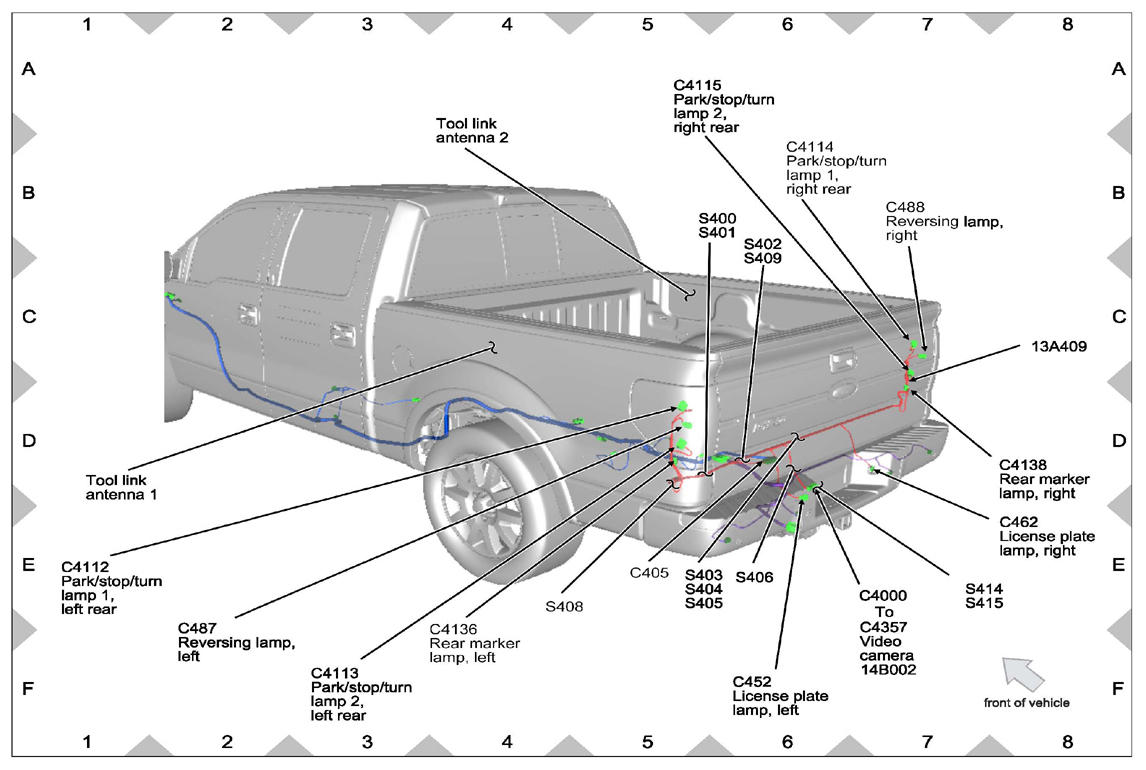

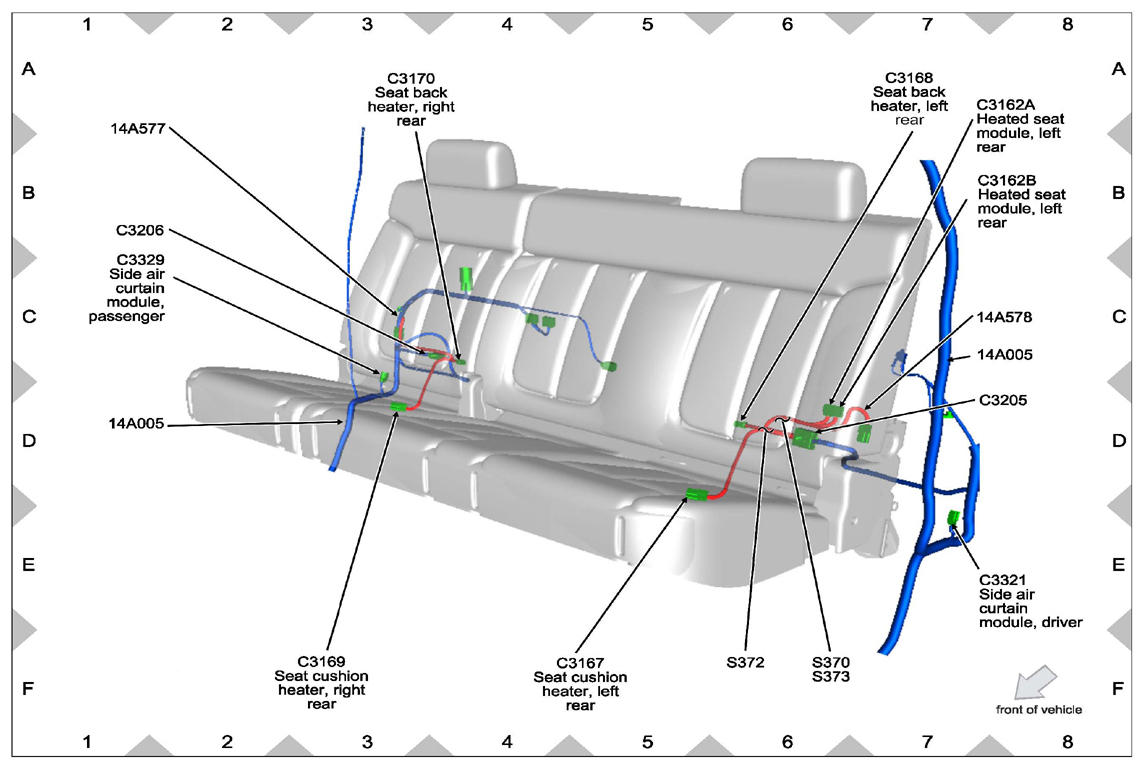

Fig 34: Rear Body Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 35: Rear Body Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

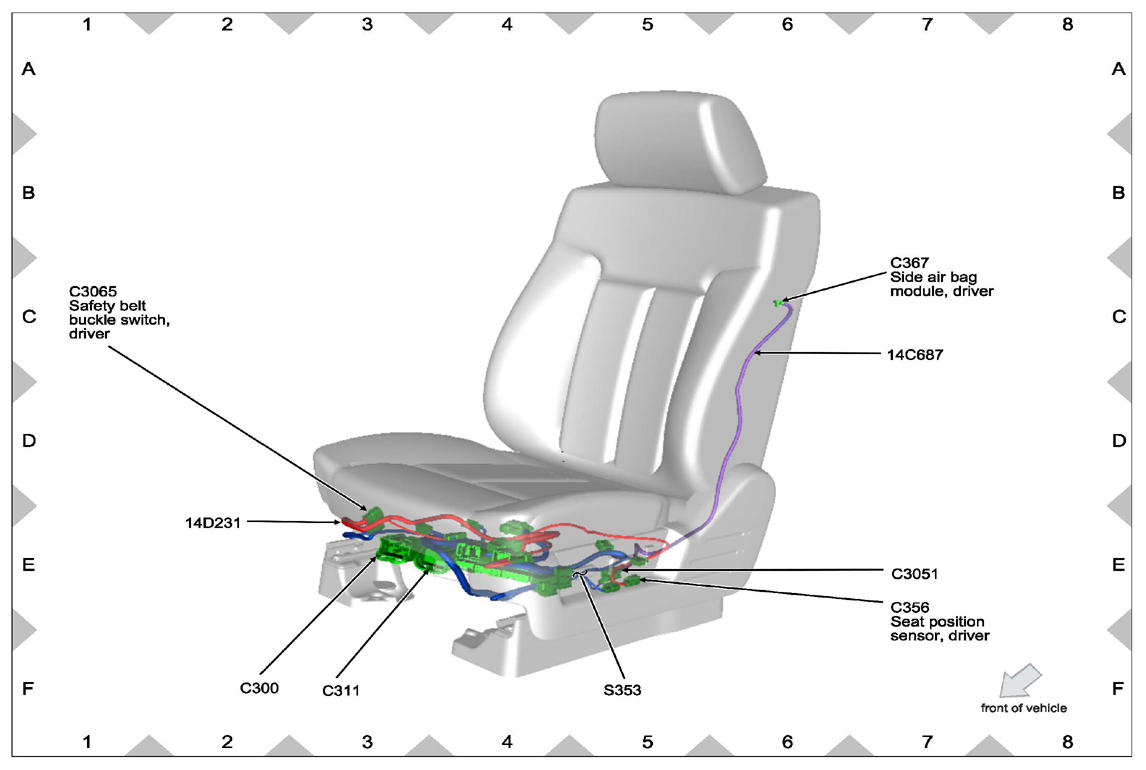

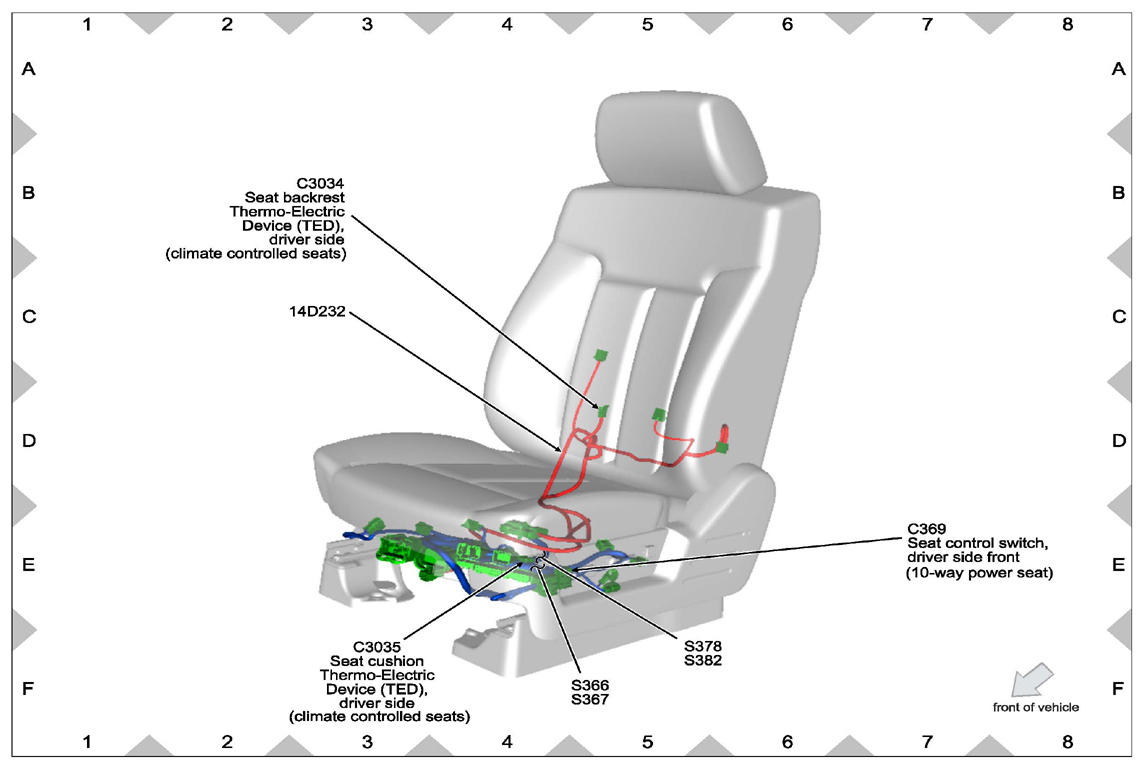

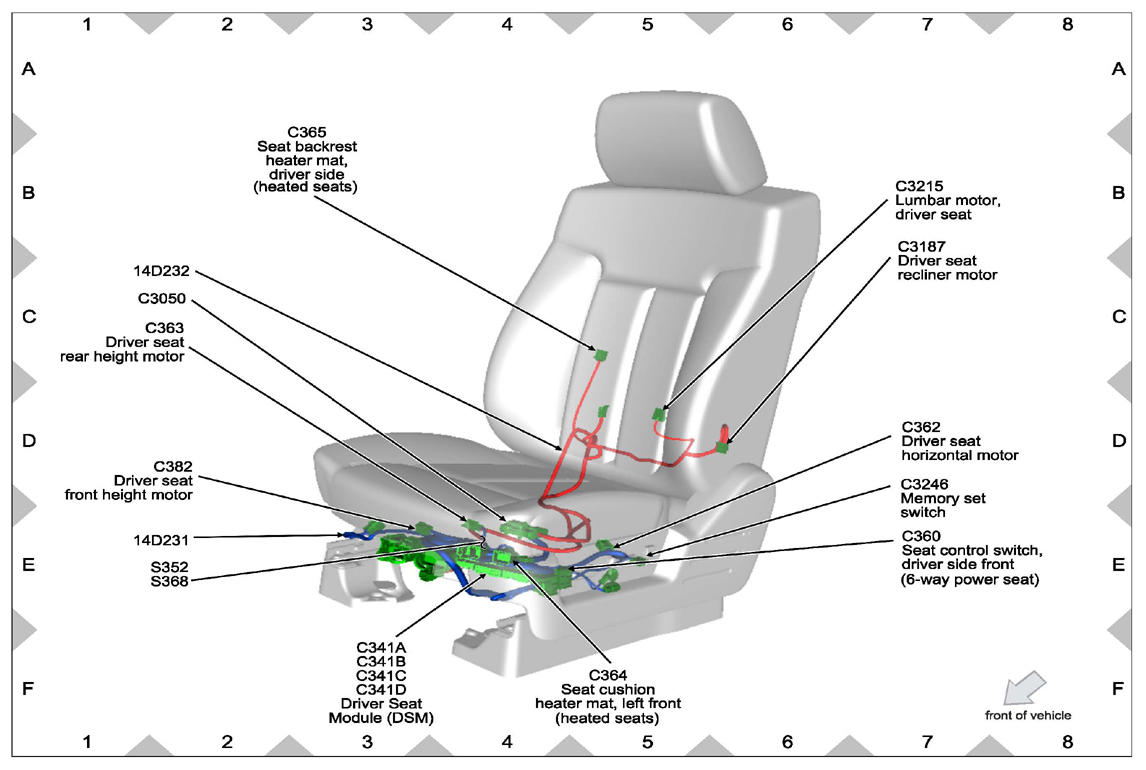

Fig 36: Driver Side Seat Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 37: Driver Side Seat Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 38: Driver Side Seat Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

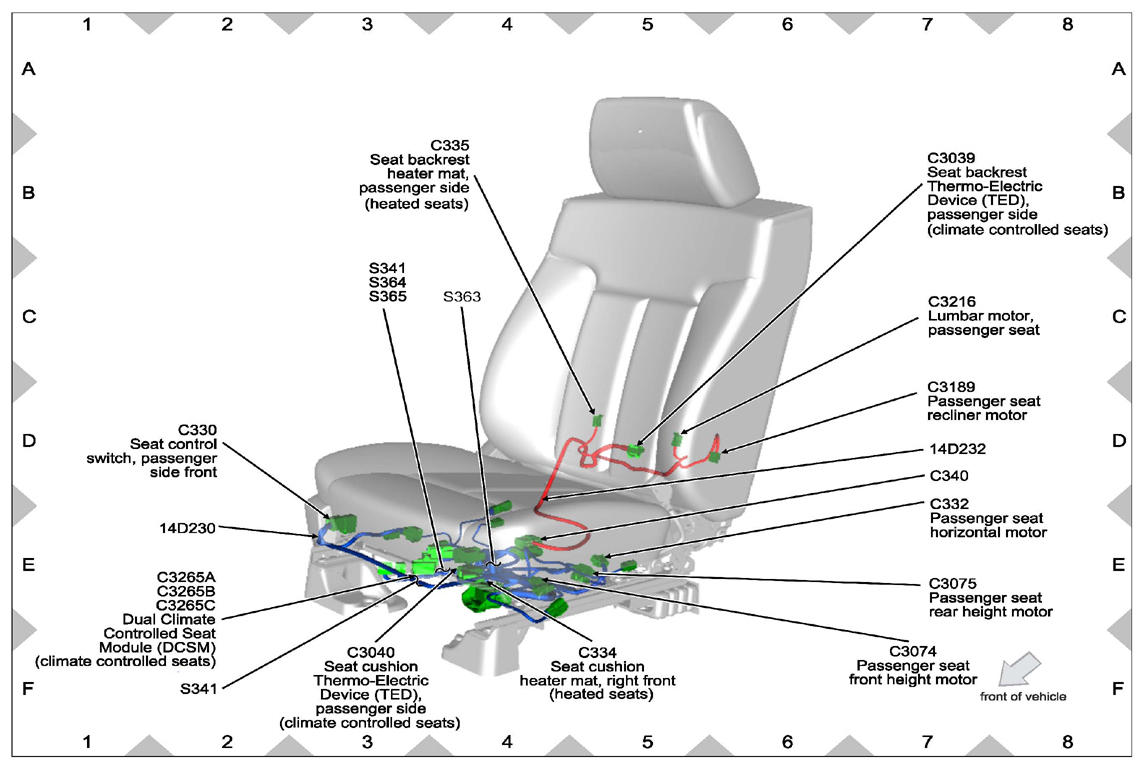

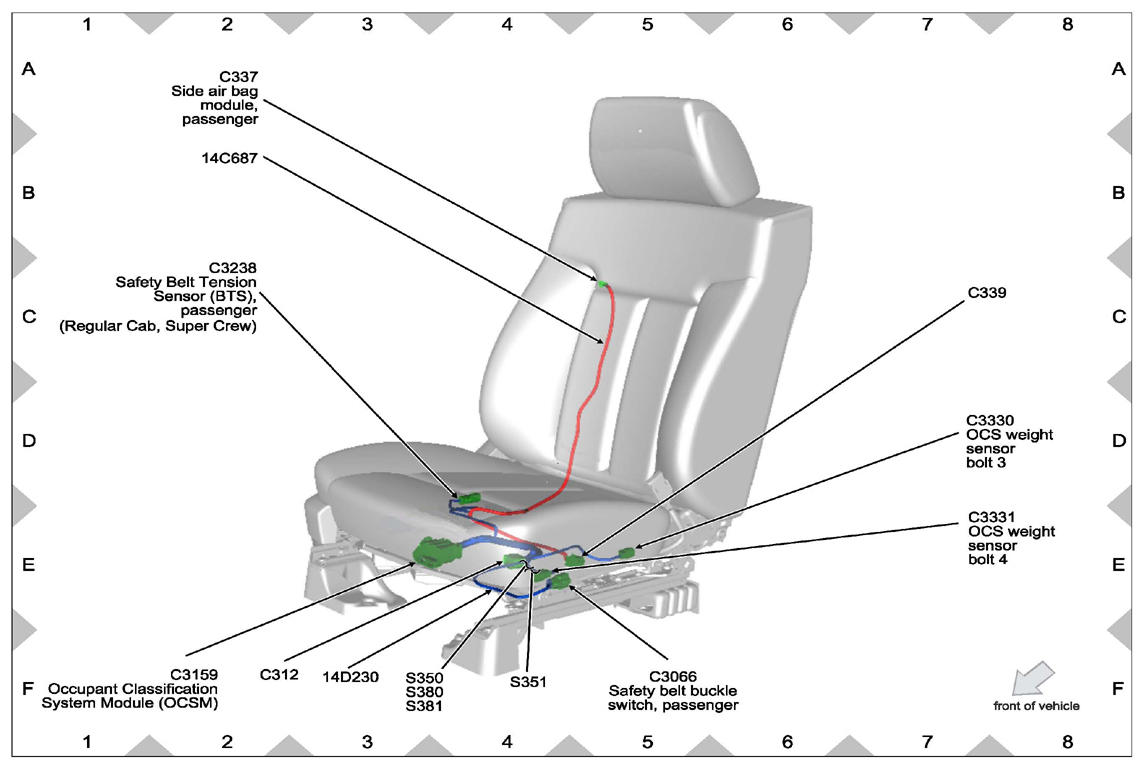

Fig 39: Passenger Seat Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 40: Passenger Seat Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 41: Passenger Seat Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

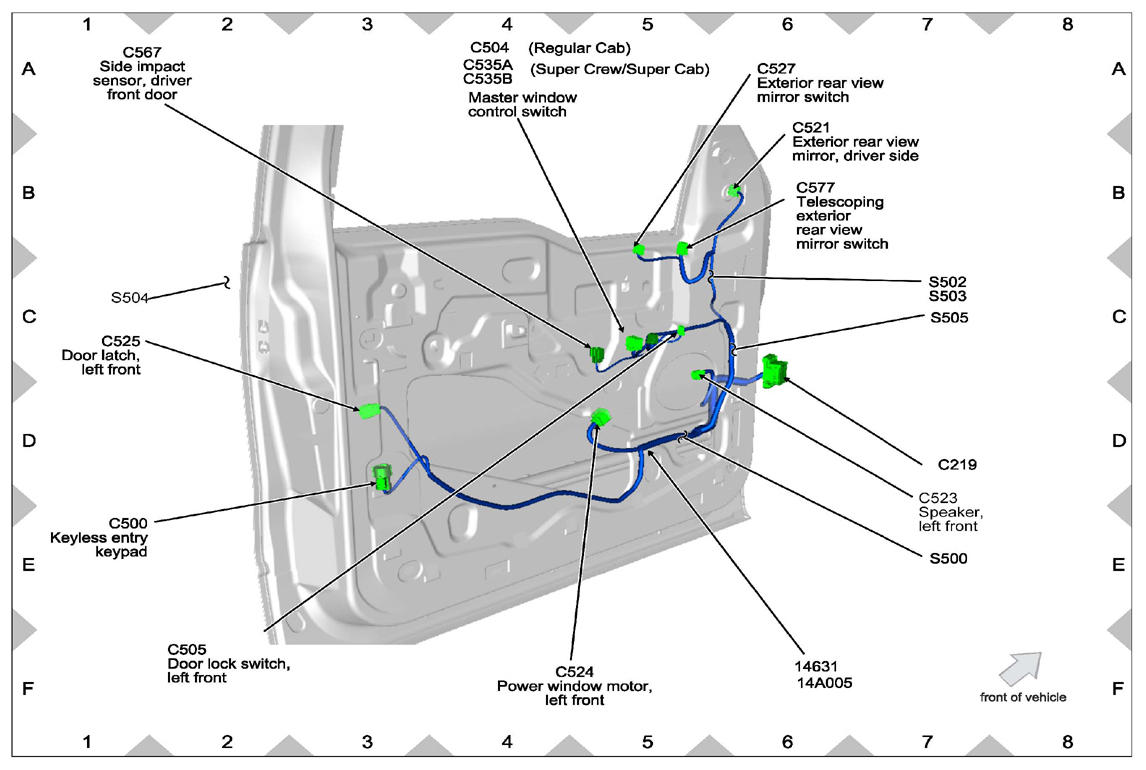

Fig 42: Driver Side Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

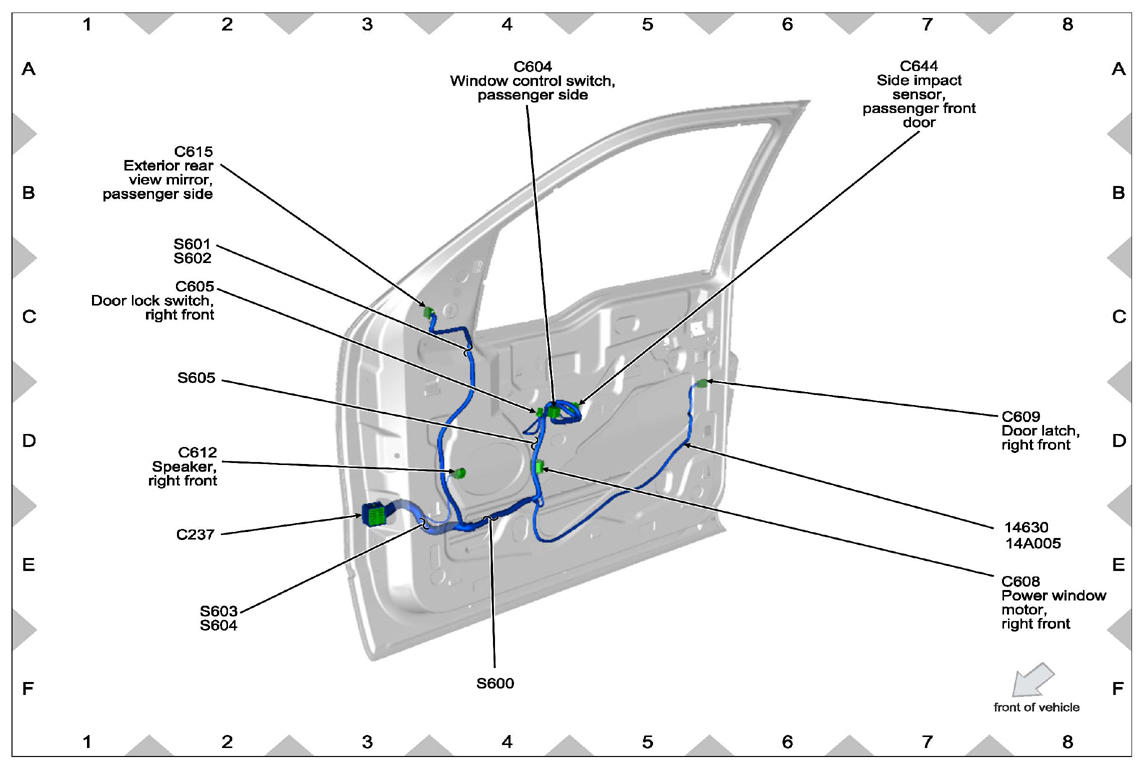

Fig 43: Passenger Side Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

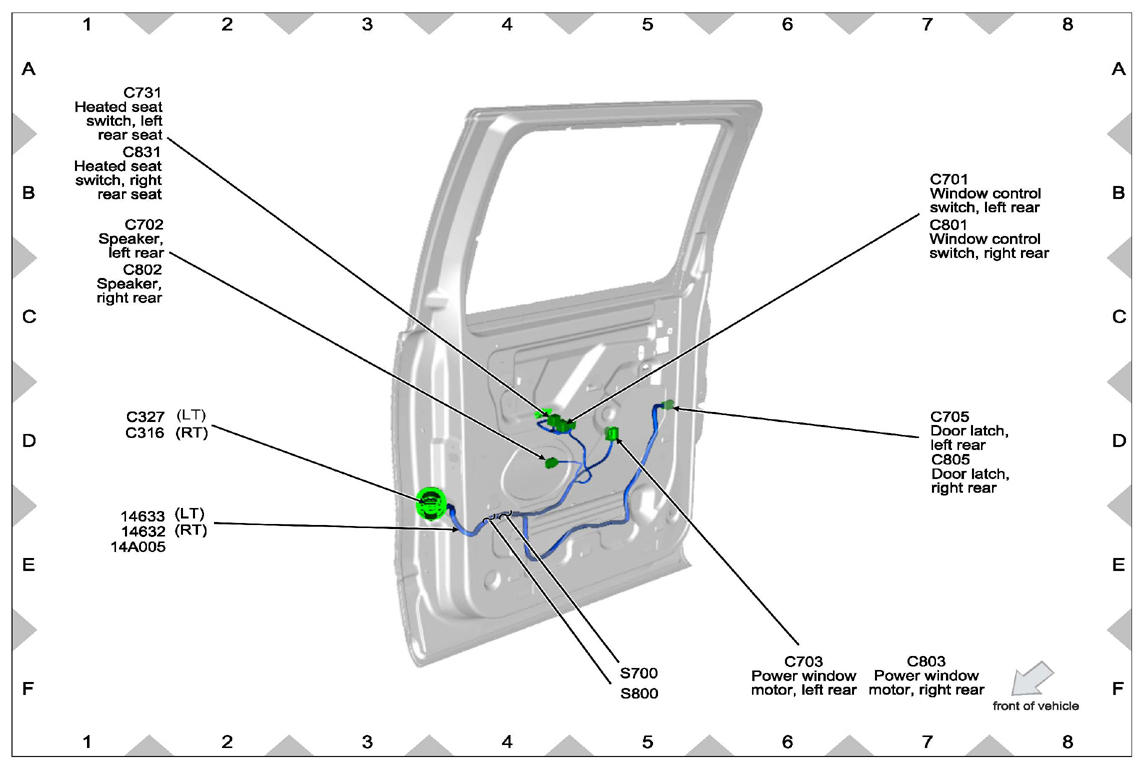

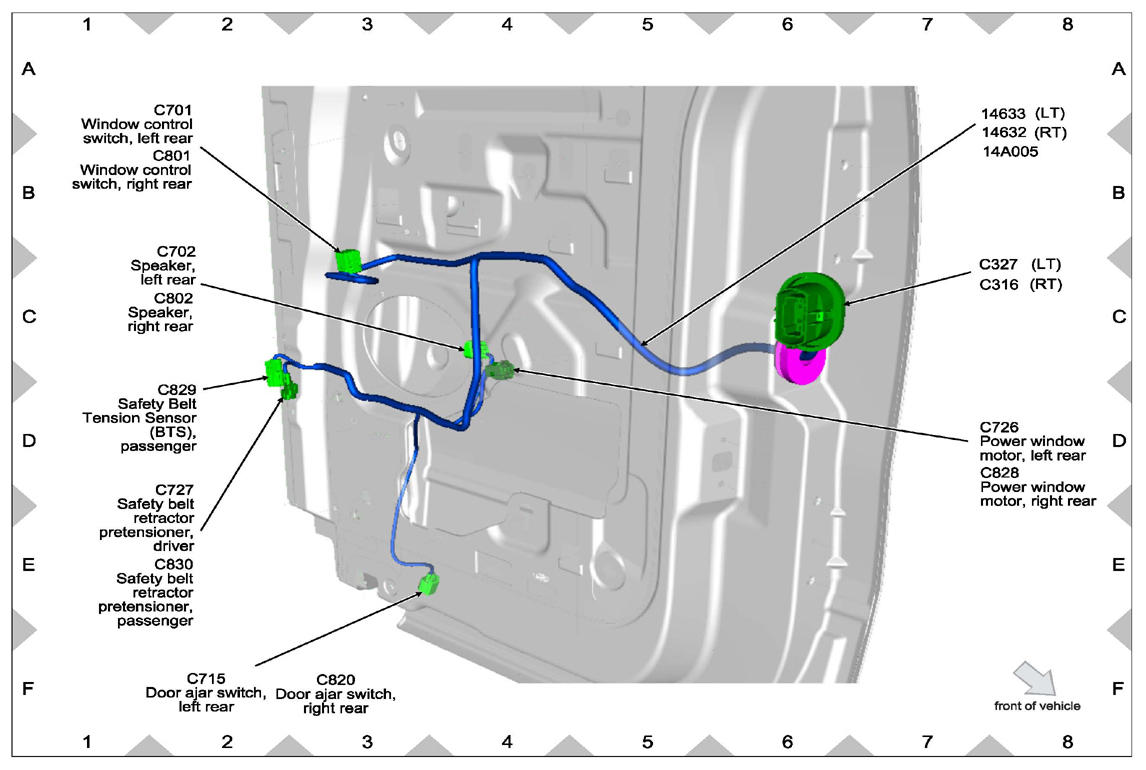

Fig 44: Right Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
Fig 45: Left Rear Door Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

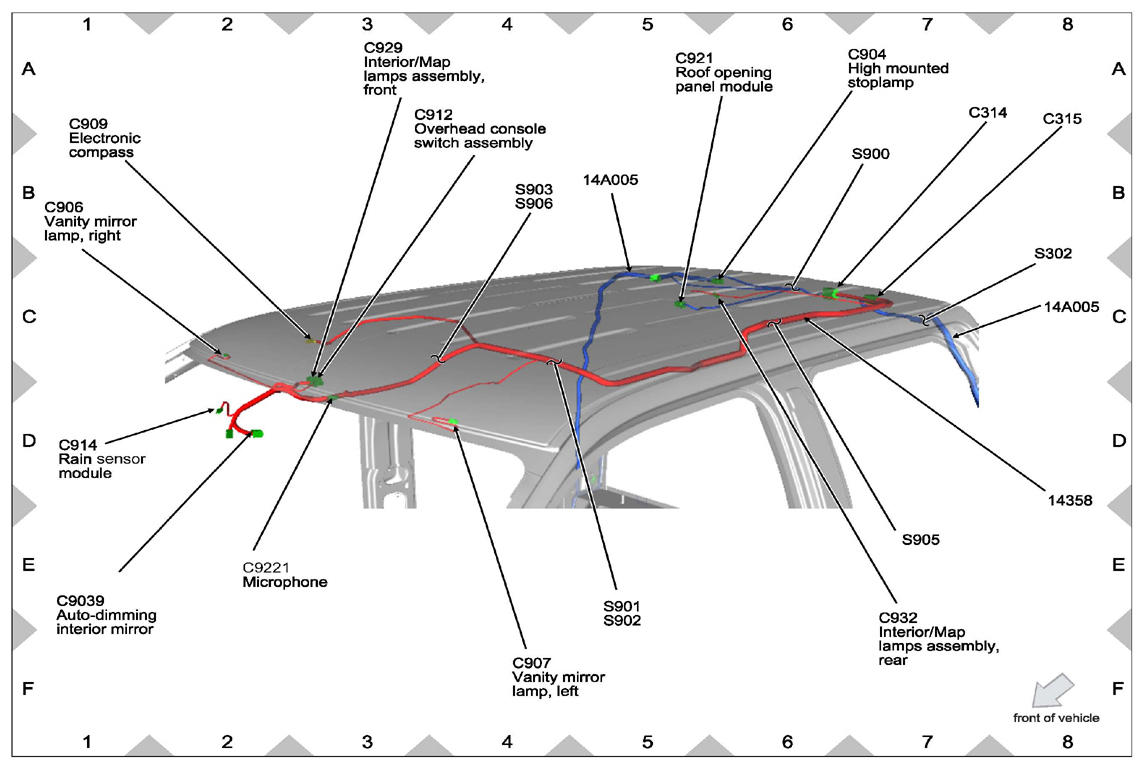

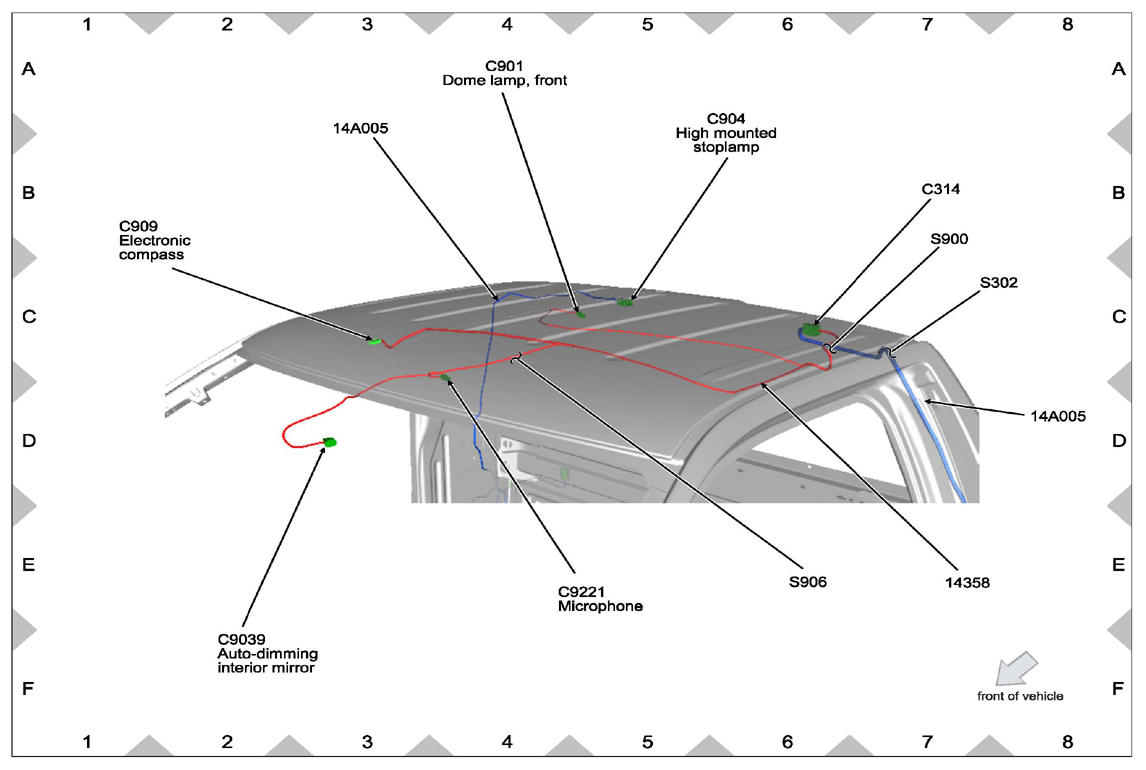

Fig 46: Roof Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.

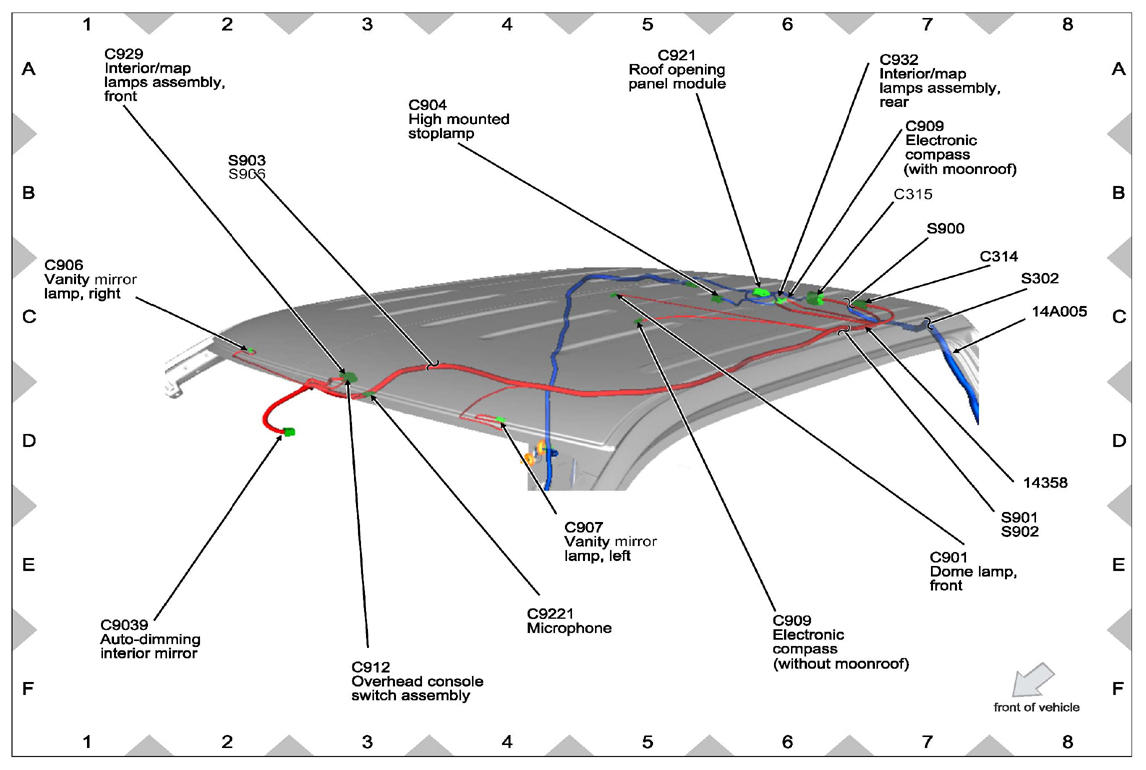

Fig 47: Roof Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 48: Roof Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

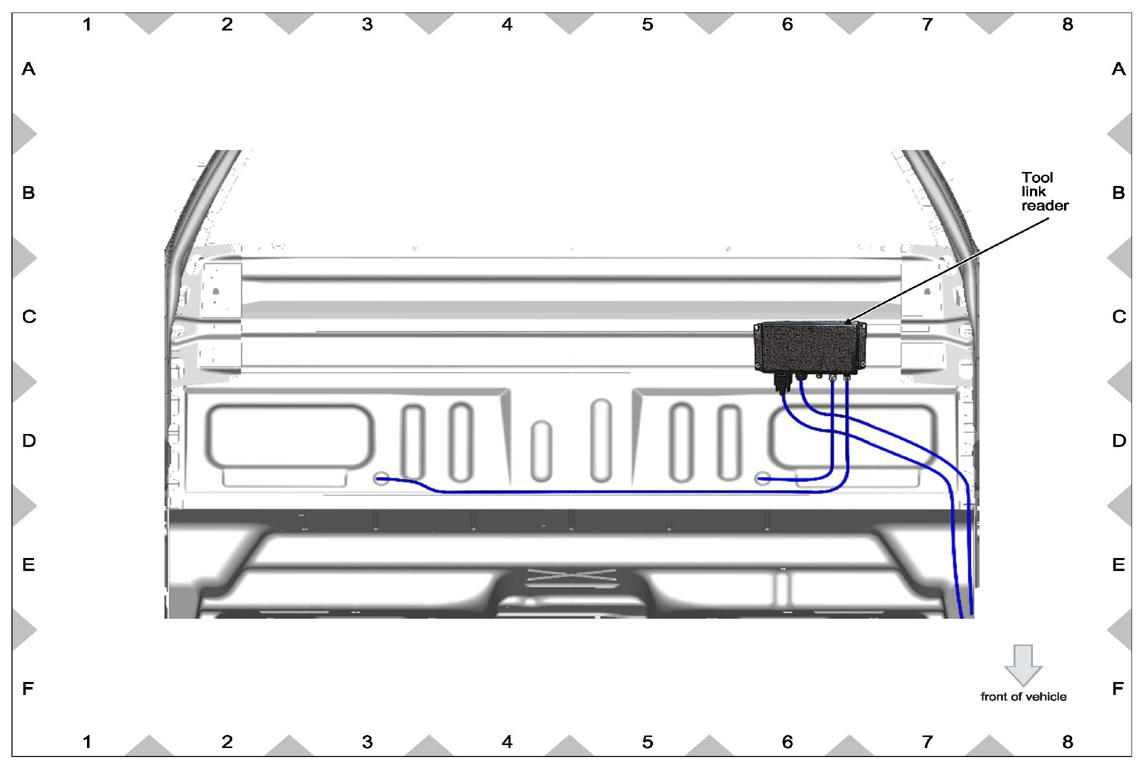

Fig 49: Tool Link Reader Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
