Vehicle Dynamic Systems

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

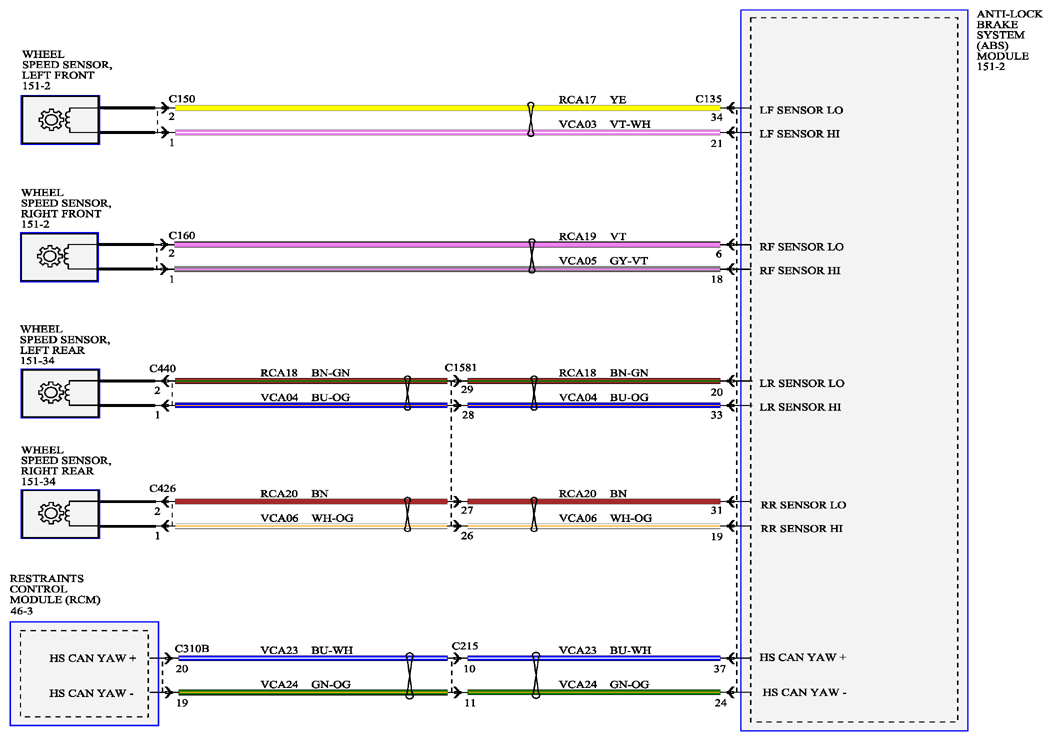

Fig 1: Vehicle Dynamic Systems - Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR CO.

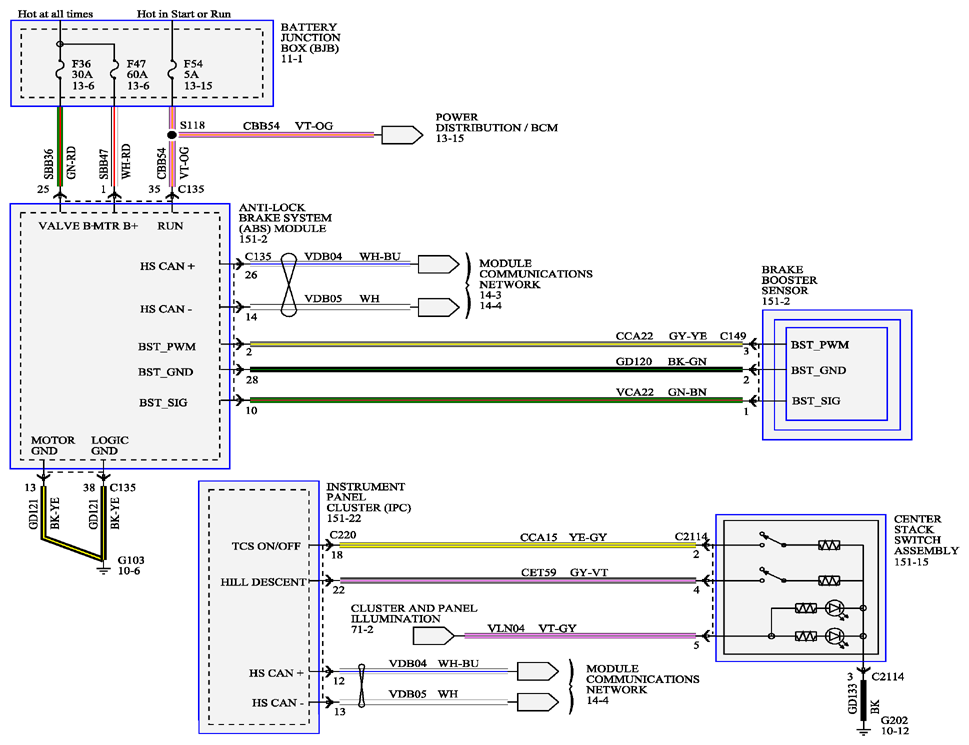

Fig 2: Vehicle Dynamic Systems - Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR CO.

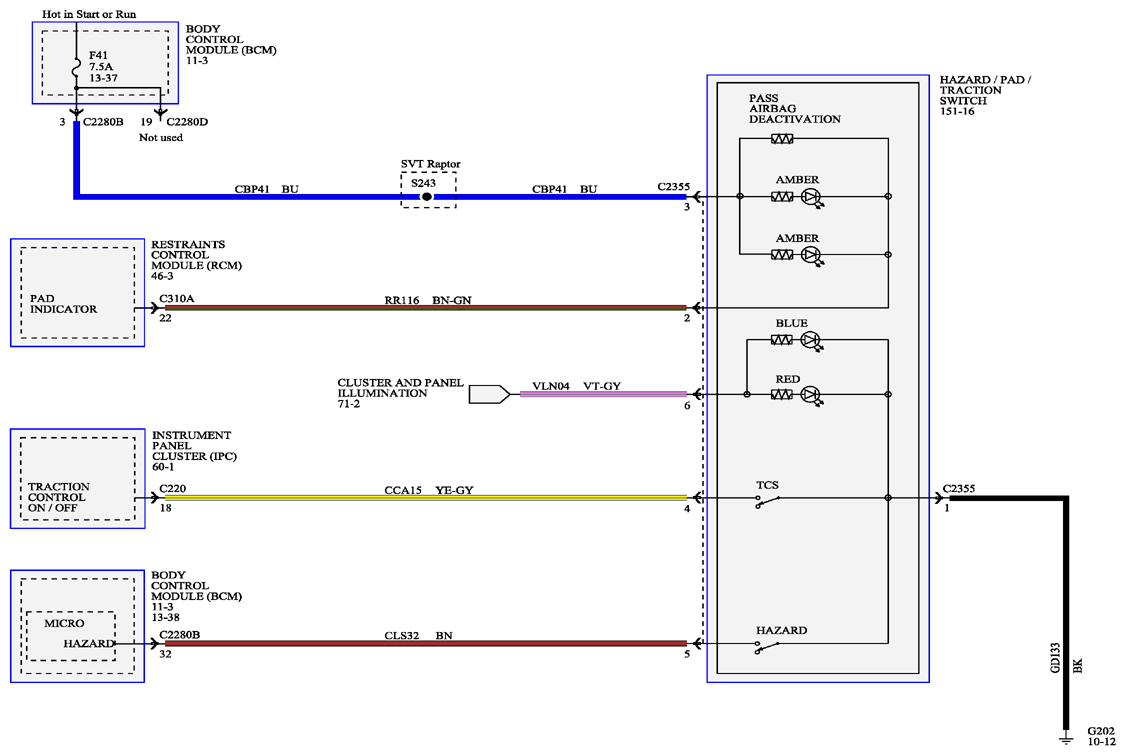

Fig 3: Vehicle Dynamic Systems - Wiring Diagram (3 Of 4)

Courtesy of FORD MOTOR CO.

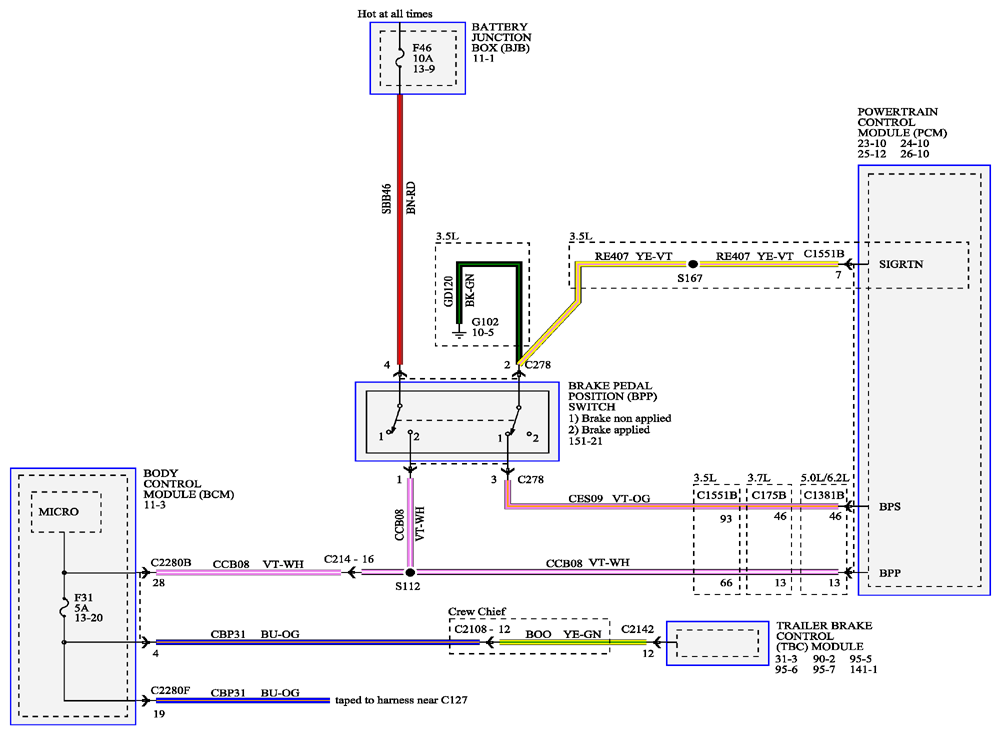

Fig 4: Vehicle Dynamic Systems - Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR CO.
