Transmission Controls - 6R80: 3.5L

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

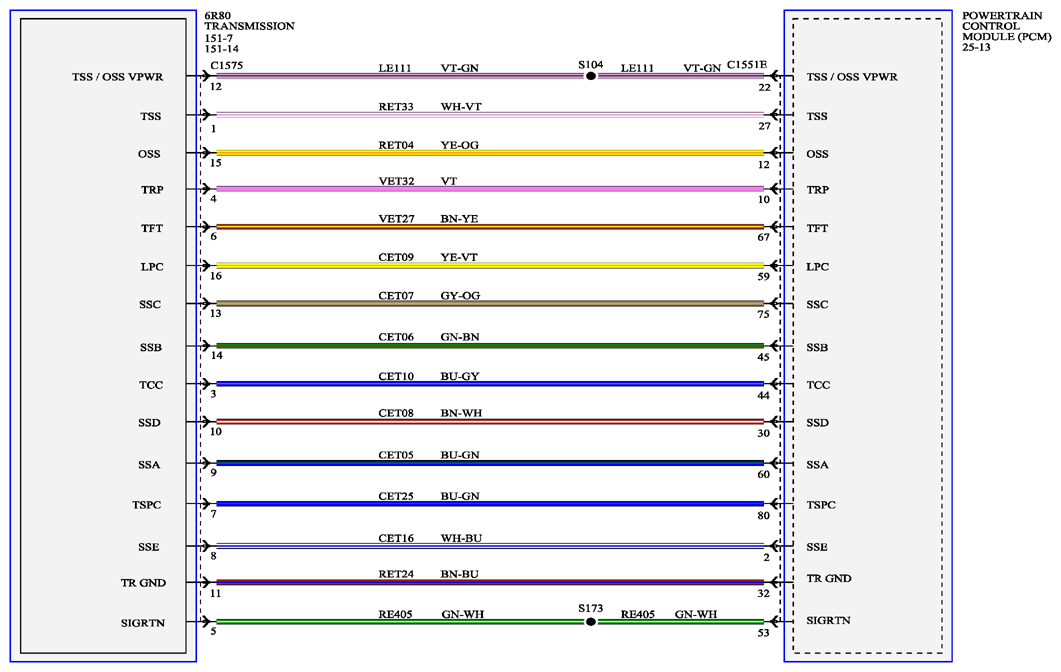

Fig 1: Transmission Controls - 6R80 - Wiring Diagram (3.5L; 1 Of 2)
G09257534Courtesy of FORD MOTOR CO.

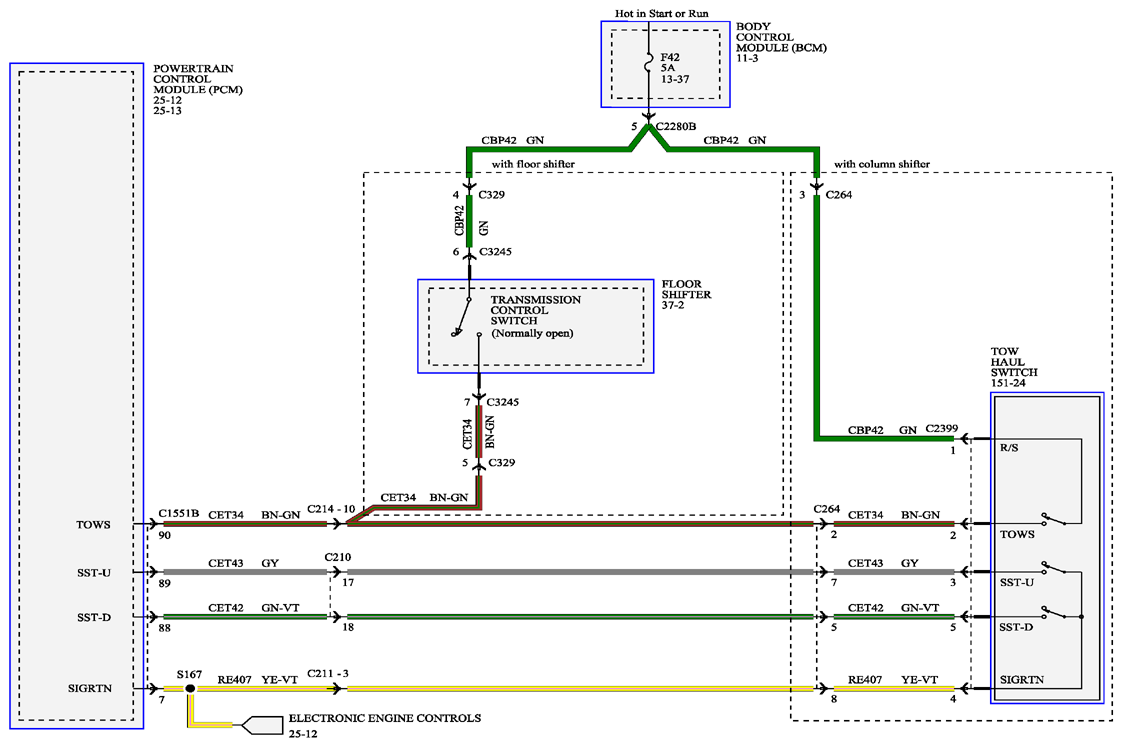

Fig 2: Transmission Controls - 6R80 - Wiring Diagram (3.5L; 2 Of 2)
G09257535Courtesy of FORD MOTOR CO.
