Trailer Camper Adapter: Notes

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

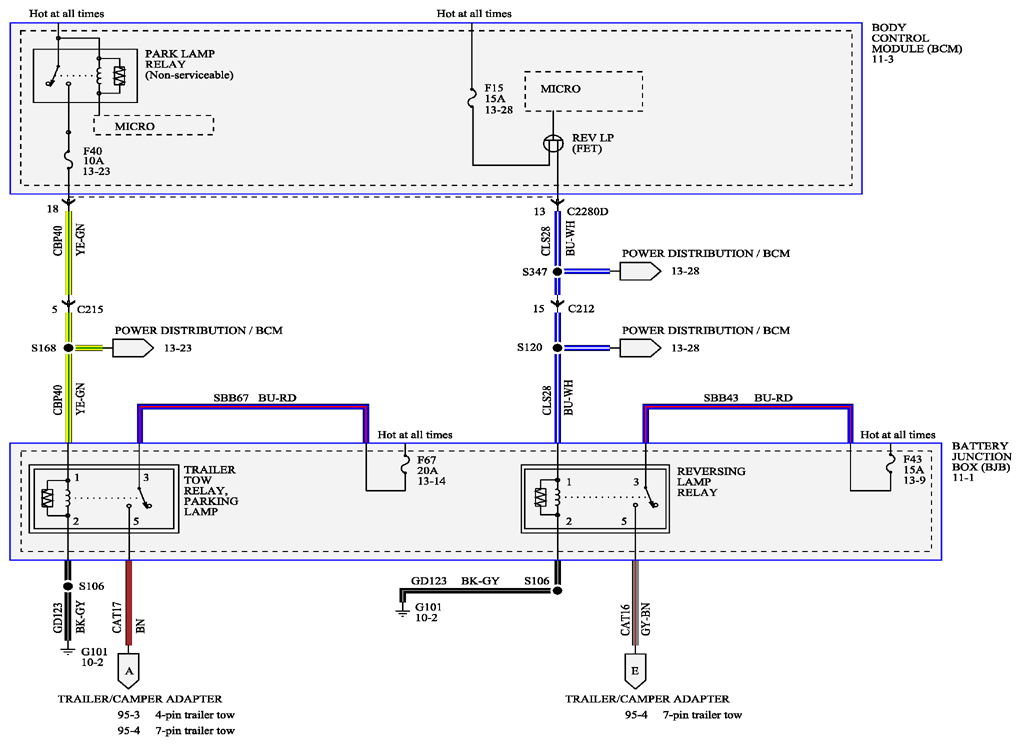

Fig 1: Trailer Camper Adapter - Wiring Diagram (1 Of 2)
G09257630Courtesy of FORD MOTOR CO.

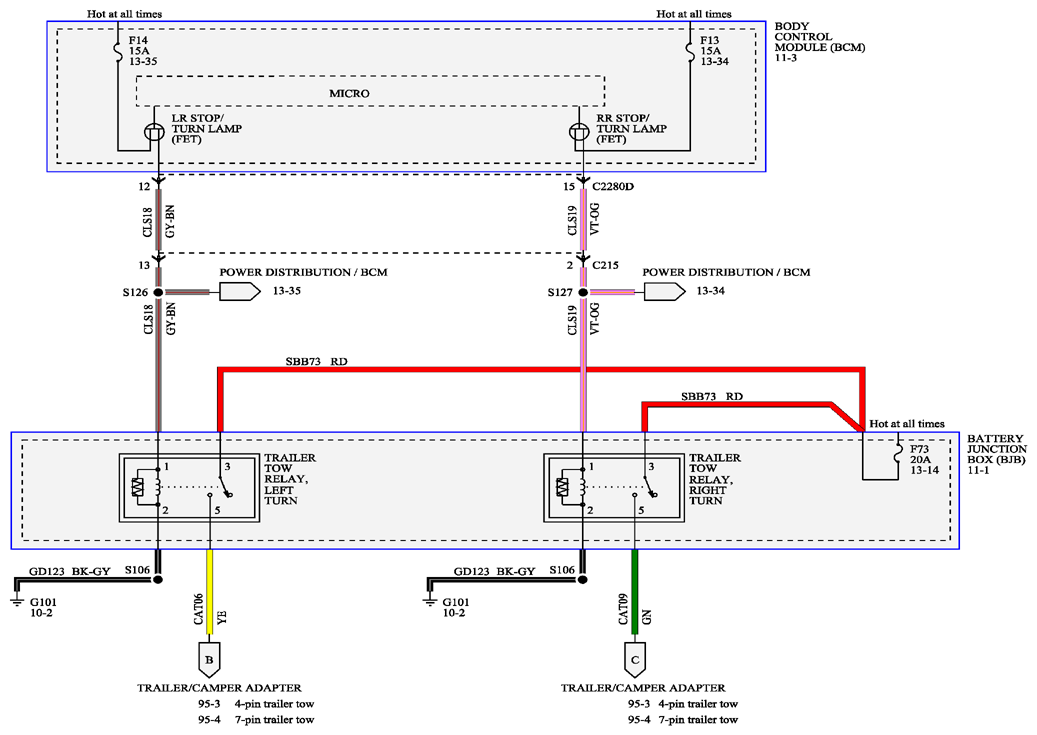

Fig 2: Trailer Camper Adapter - Wiring Diagram (2 Of 2)
G09257631Courtesy of FORD MOTOR CO.
