Floor Shifter

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

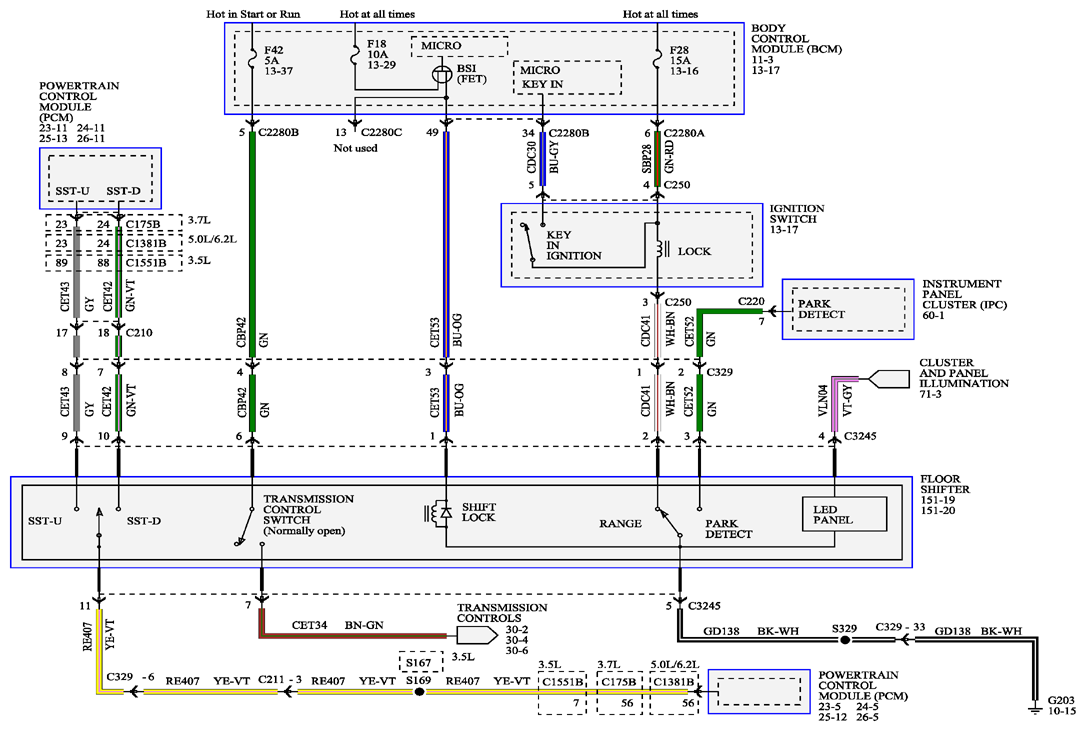

Fig 1: Shift Interlock - Wiring Diagram (Floor Shifter)
G09257552Courtesy of FORD MOTOR CO.
