Section 514 (OEM Wiring Diagrams)
>>
Retractable Running Boards
Retractable Running Boards
WARNING:
This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

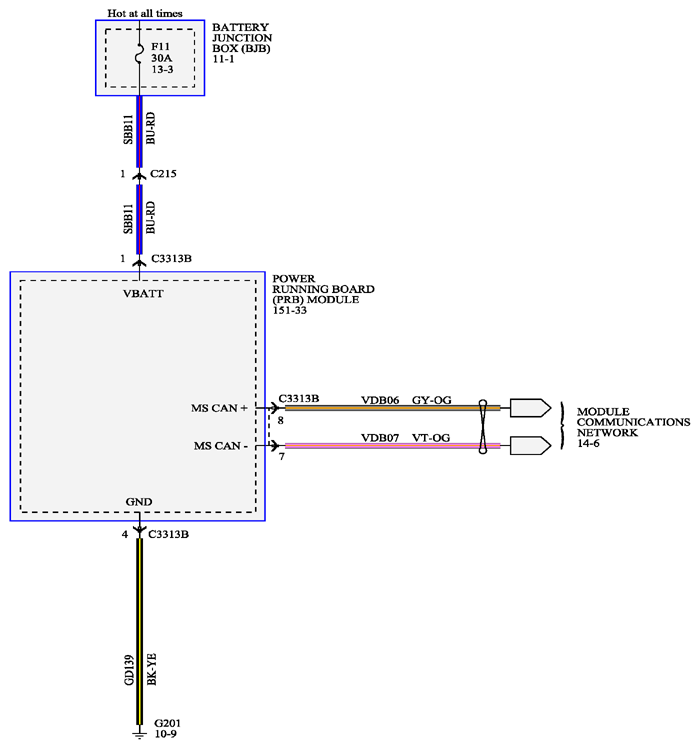

Fig 1: Retractable Running Boards - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

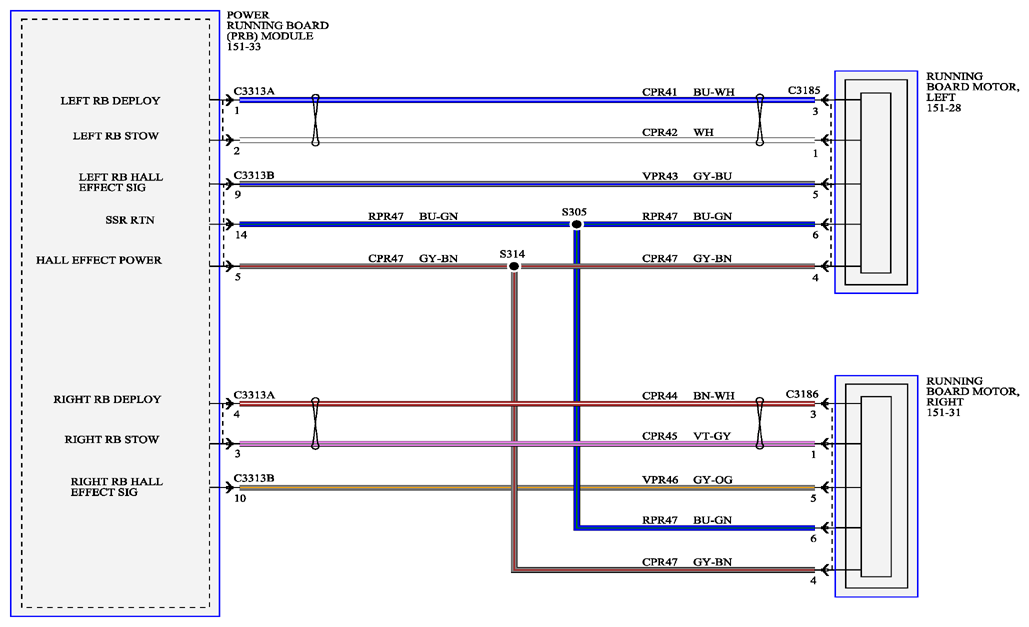

Fig 2: Retractable Running Boards - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
