With Power Sliding Rear Window

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

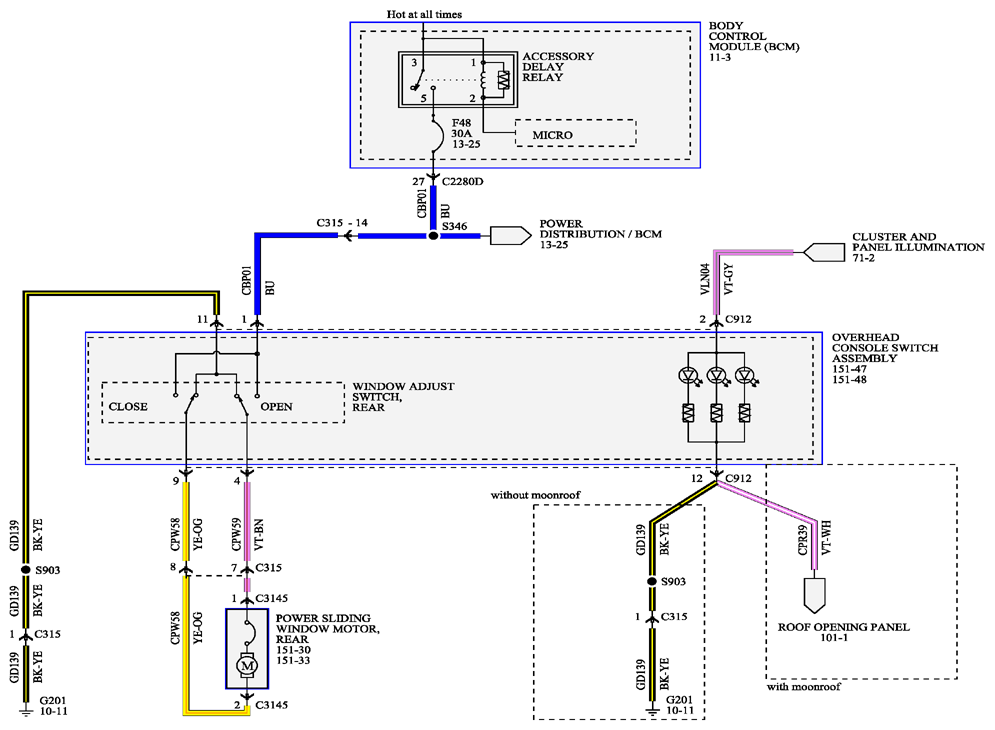

Fig 1: Power Windows - Circuit Diagram (With Power Sliding Rear Window)
G09257641Courtesy of FORD MOTOR CO.
