Power Steering Controls: 3.5/3.7/5.0L

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

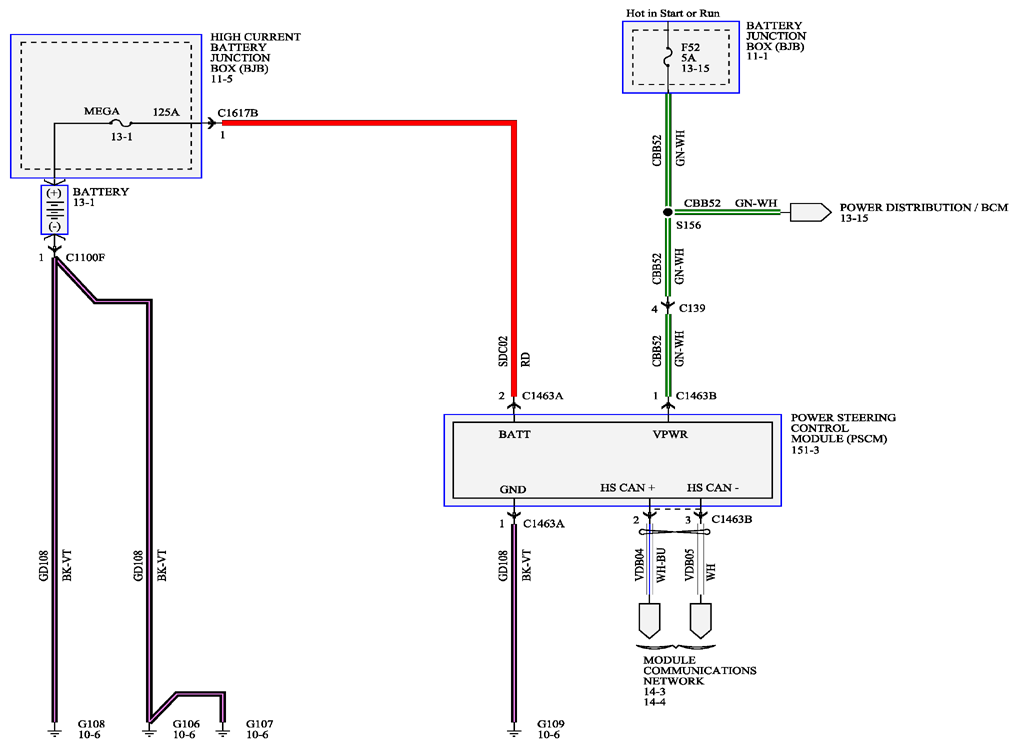

Fig 1: Power Steering Controls - Wiring Diagram (3.5/3.7/5.0L)

Courtesy of FORD MOTOR CO.
