6-Way Power Seat Without Memory - Driver

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

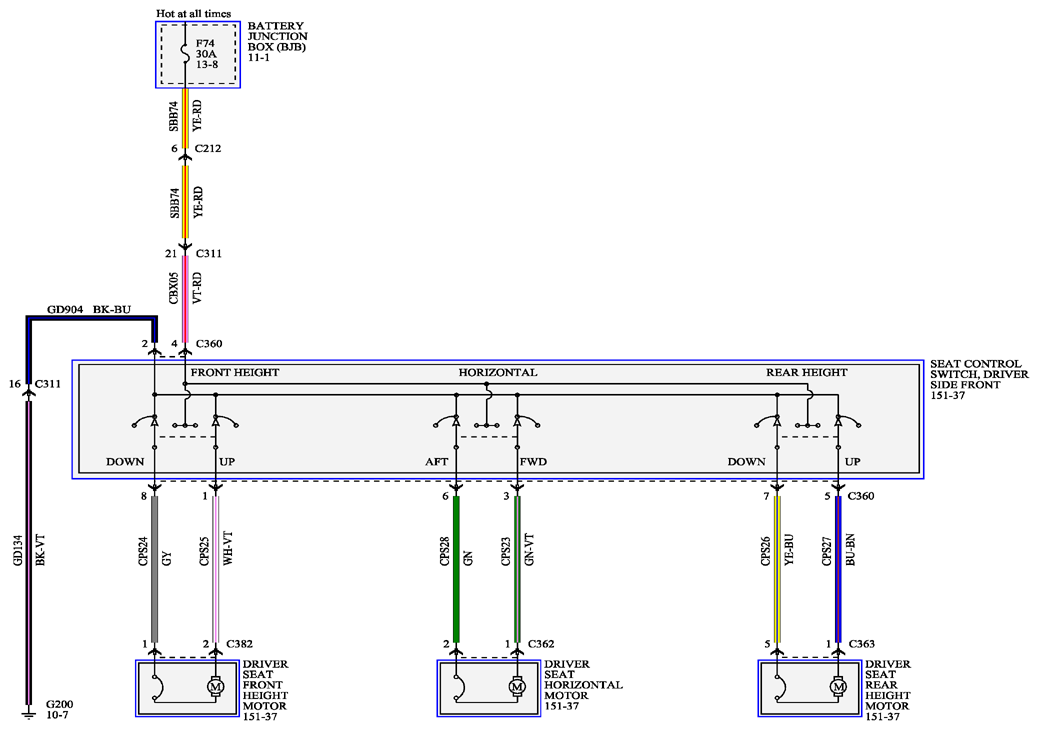

Fig 1: Power Seats - Wiring Diagram (6-Way Power Seat Without Memory - Driver)
G09257663Courtesy of FORD MOTOR CO.
