W/O Memory With Inline Connector At Doors

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

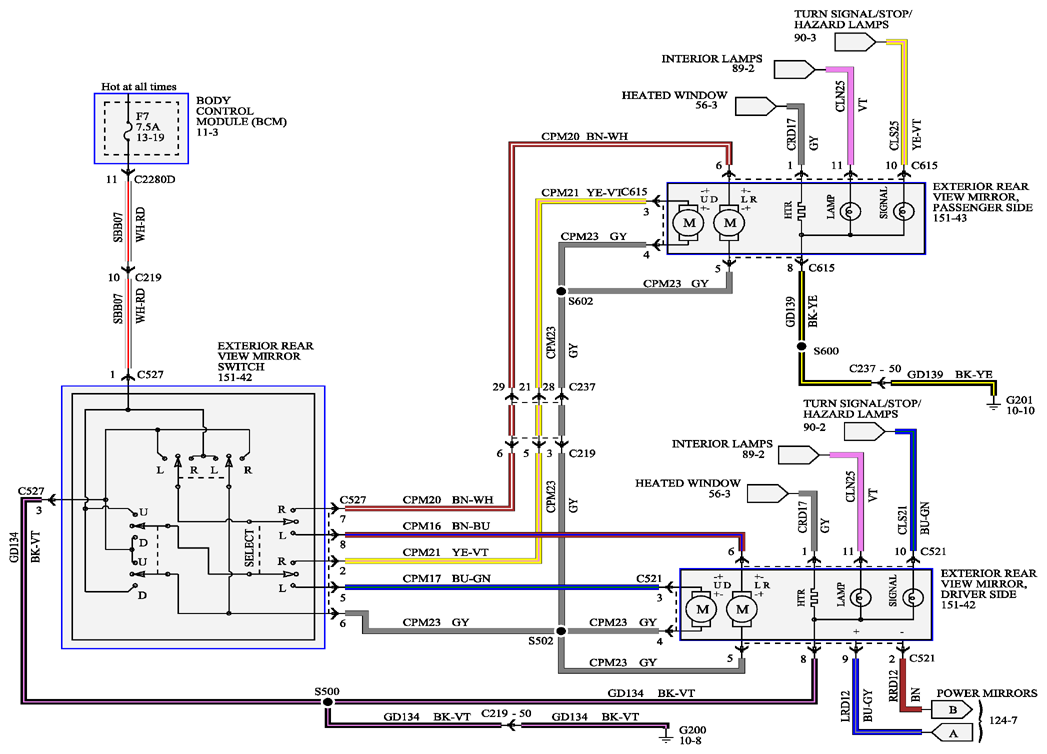

Fig 1: Power Mirrors - Wiring Diagram (W/O Memory With Inline Connector At Doors)

Courtesy of FORD MOTOR CO.
