Super Crew

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

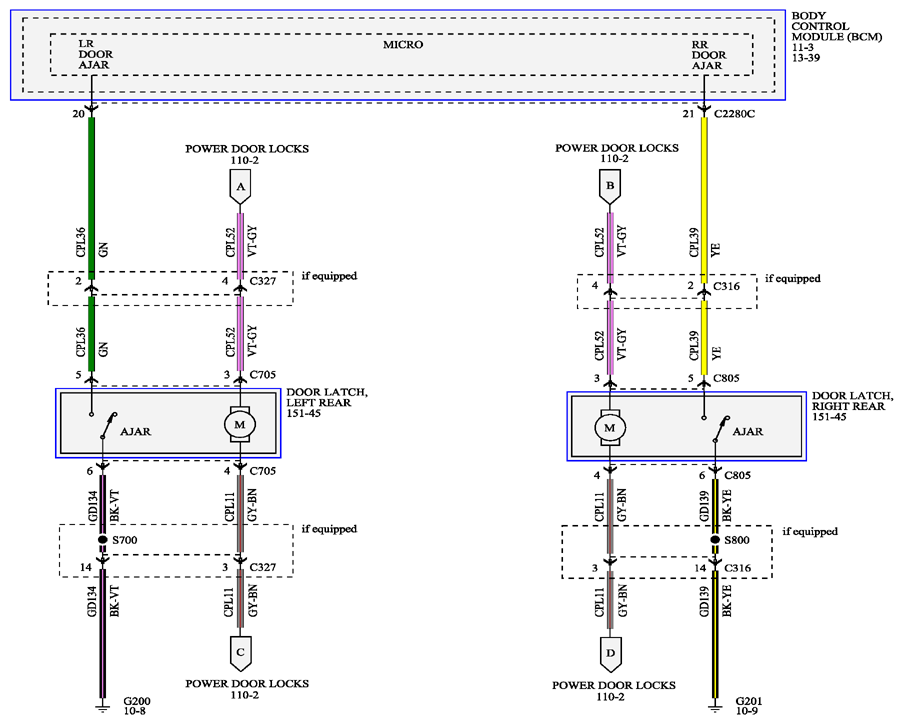

Fig 1: Power Door Locks - Wiring Diagram (Super Crew)
G09257647Courtesy of FORD MOTOR CO.
