F9, F23, F27, F43, F44, F46

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

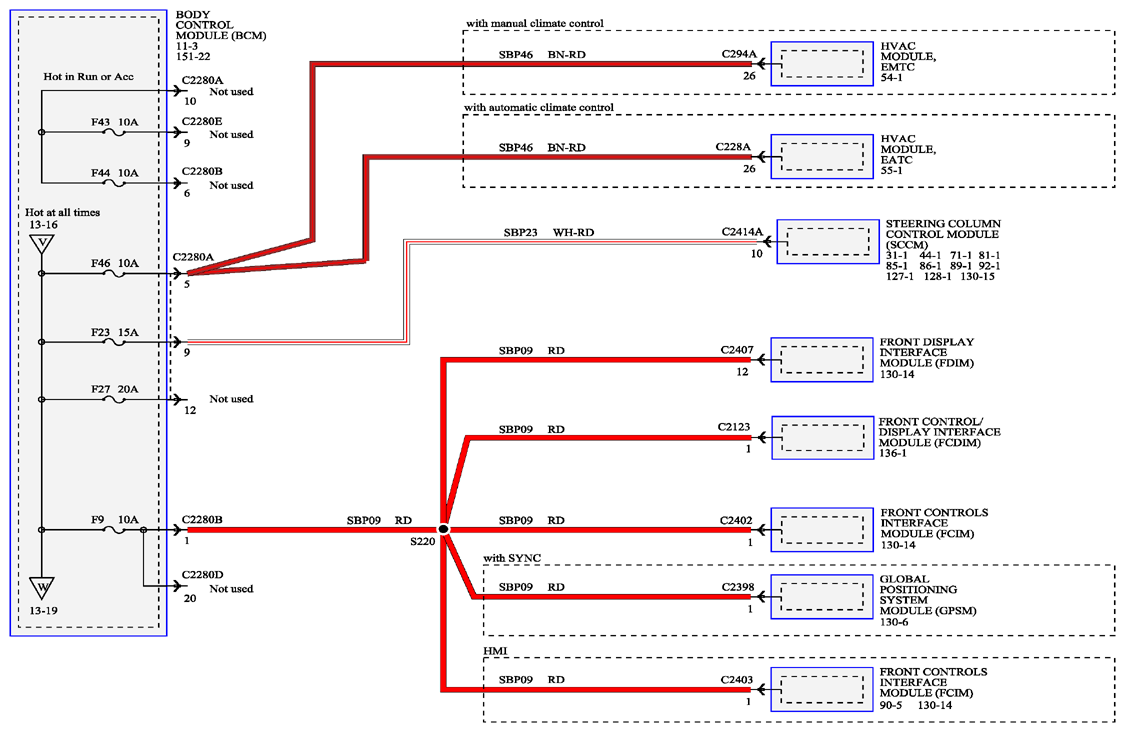

Fig 1: Power Distribution/BCM - Wiring Diagram (F9, F23, F27, F43, F44 And F46)
G09257453Courtesy of FORD MOTOR CO.
