F65, F66, F68, F69, F72

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

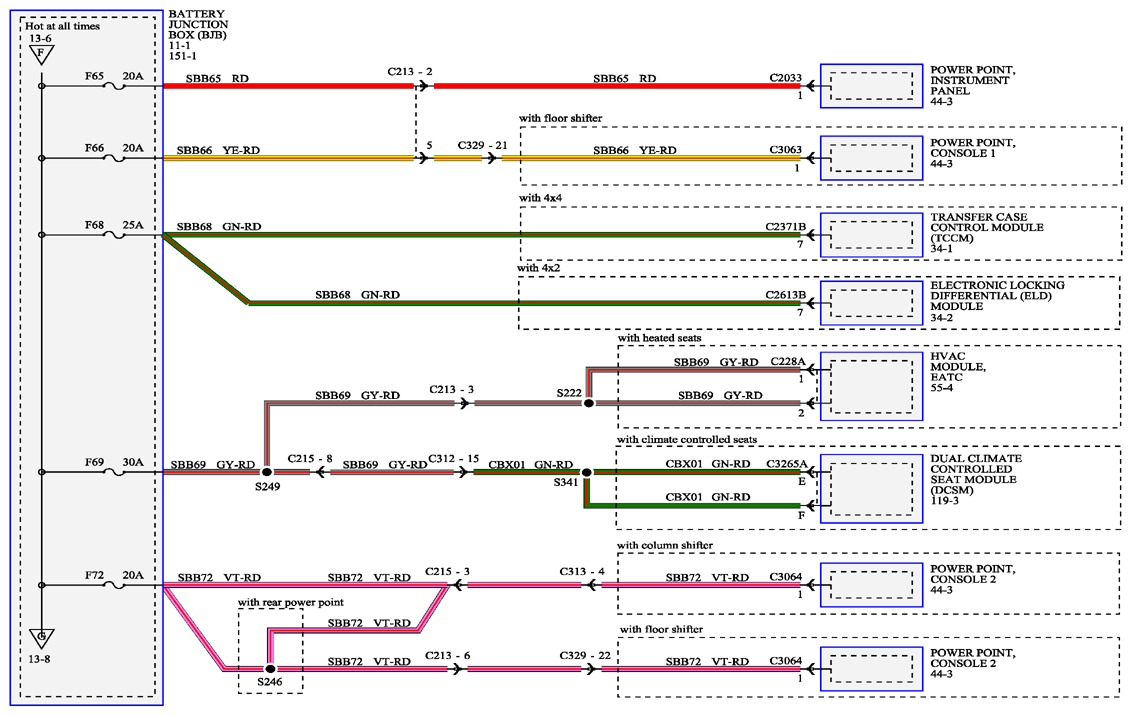

Fig 1: Power Distribution/BCM - Wiring Diagram (F65, F66, F68, F69 And F72)

Courtesy of FORD MOTOR CO.
