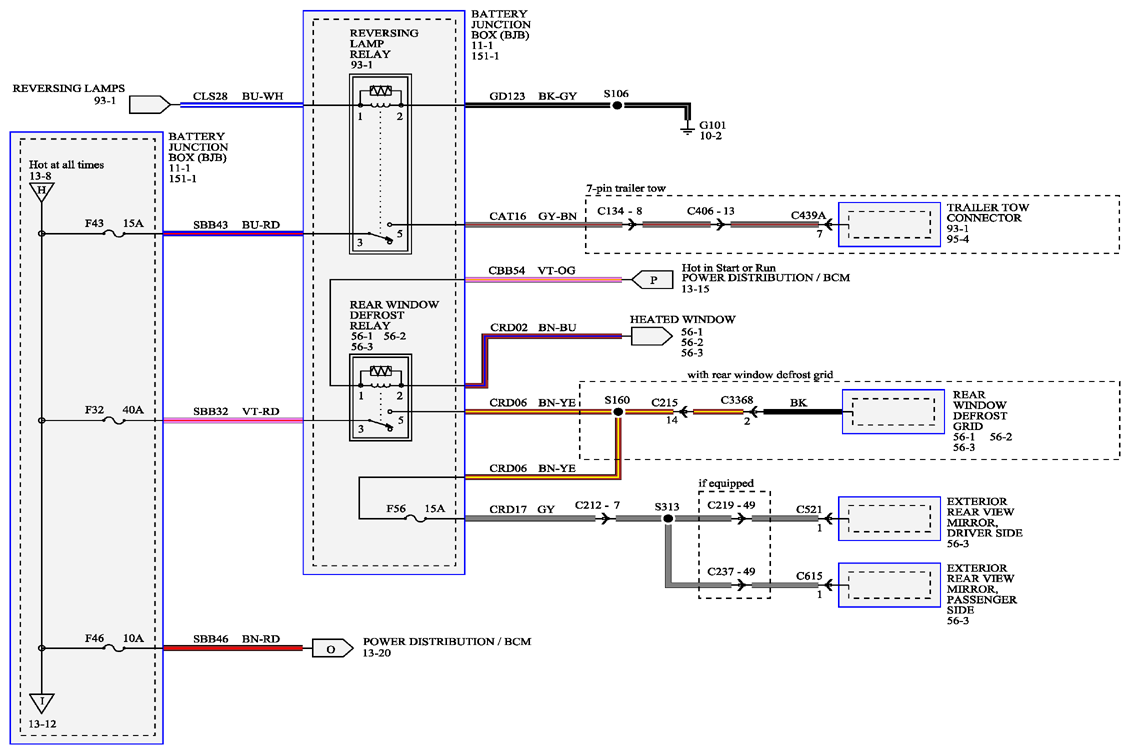

Fig 1: Power Distribution/BCM - Wiring Diagram (F32, F43, F46 And F56)
G09257444Courtesy of FORD MOTOR CO.
