F31, F42, F67, 71, F73

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

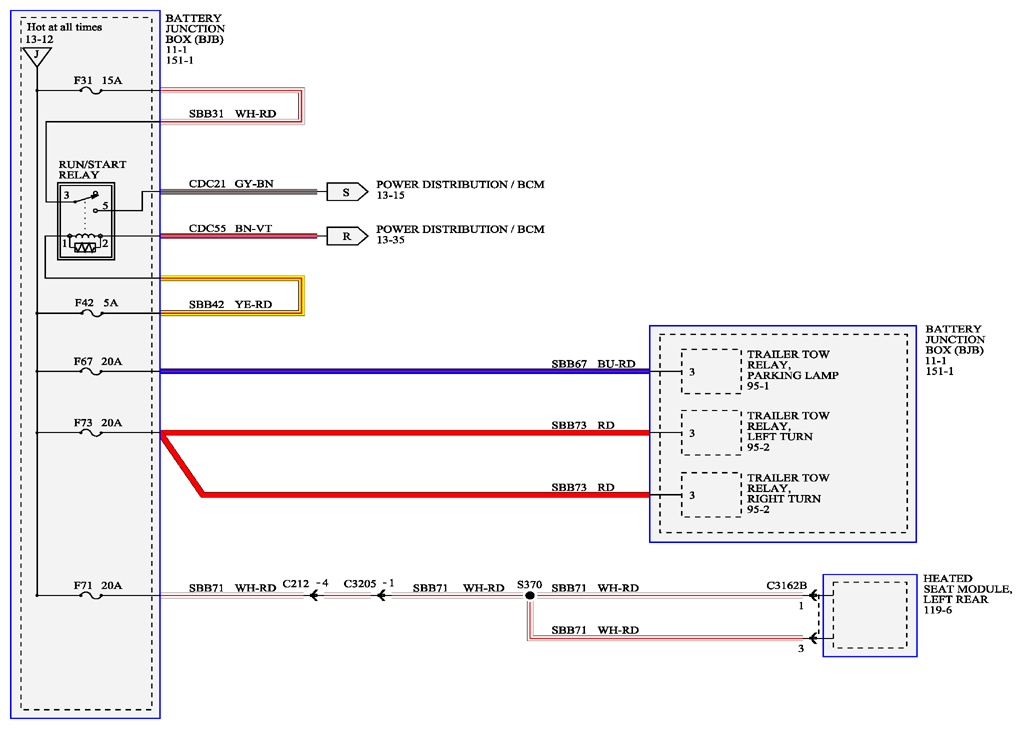

Fig 1: Power Distribution/BCM - Wiring Diagram (F31, F42, F67, F71 And F73)
G09257449Courtesy of FORD MOTOR CO.
