F30, F48, F51, F74

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

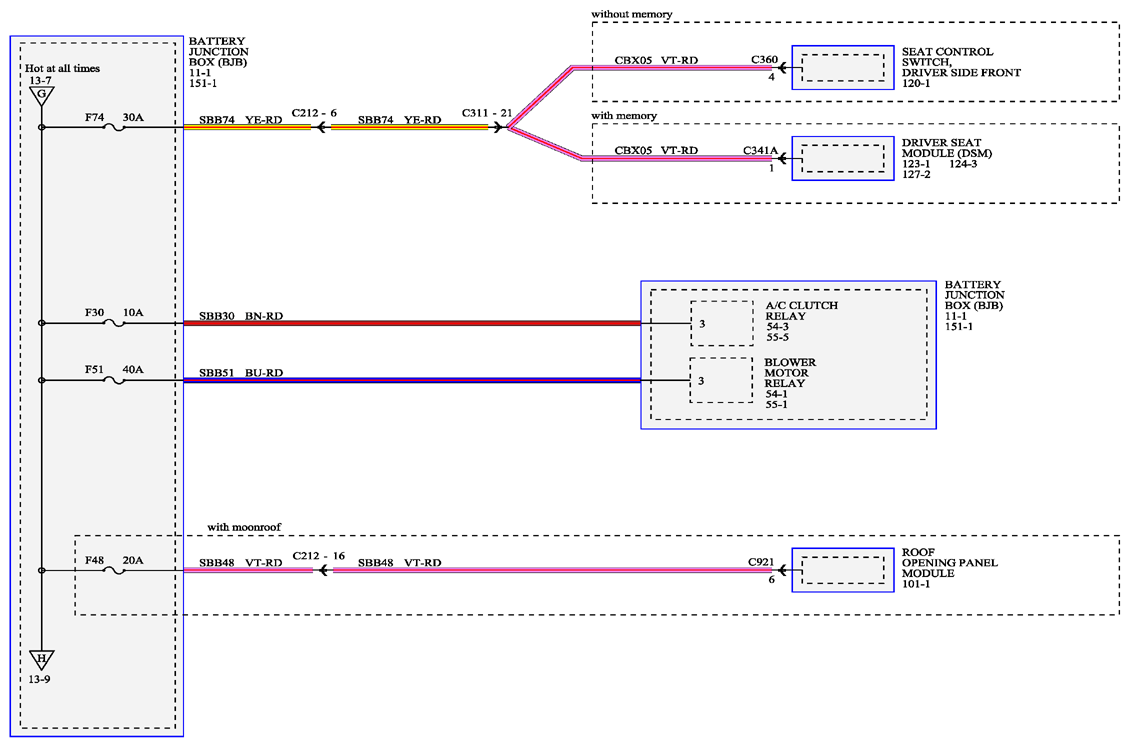

Fig 1: Power Distribution/BCM - Wiring Diagram (F30, F48, F51 And F74)
G09257443Courtesy of FORD MOTOR CO.
