Power Distribution BCM: F18

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

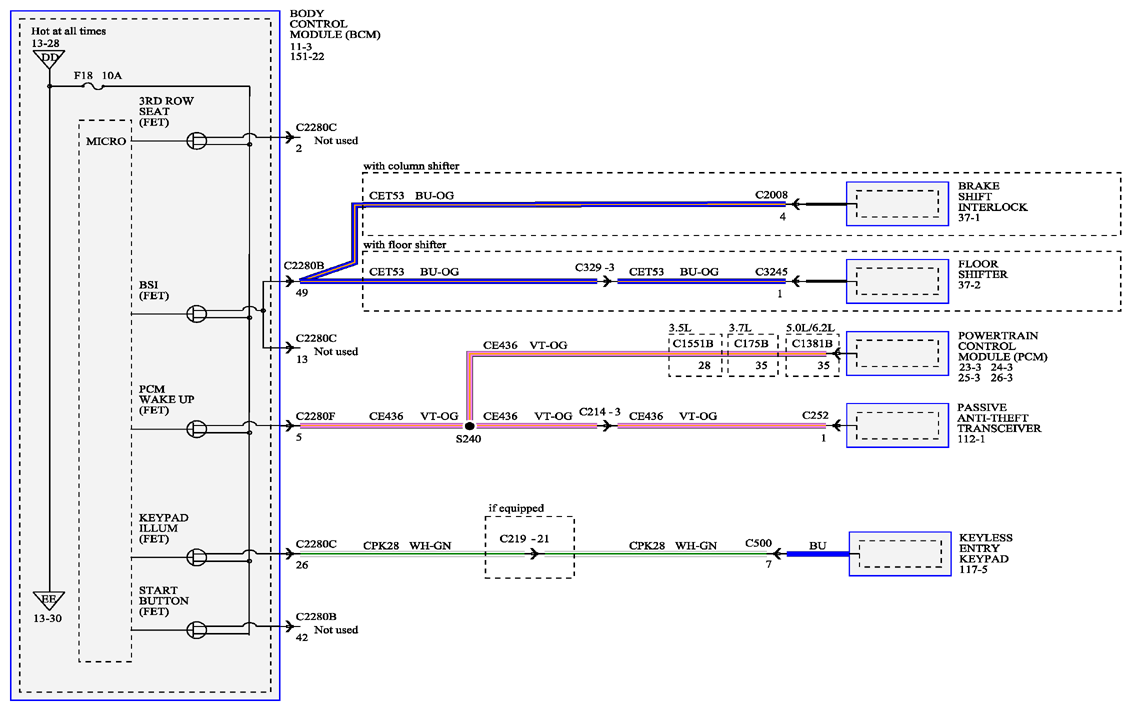

Fig 1: Power Distribution/BCM - Wiring Diagram (F18)
G09257464Courtesy of FORD MOTOR CO.
