F11, F24, F28, F29

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

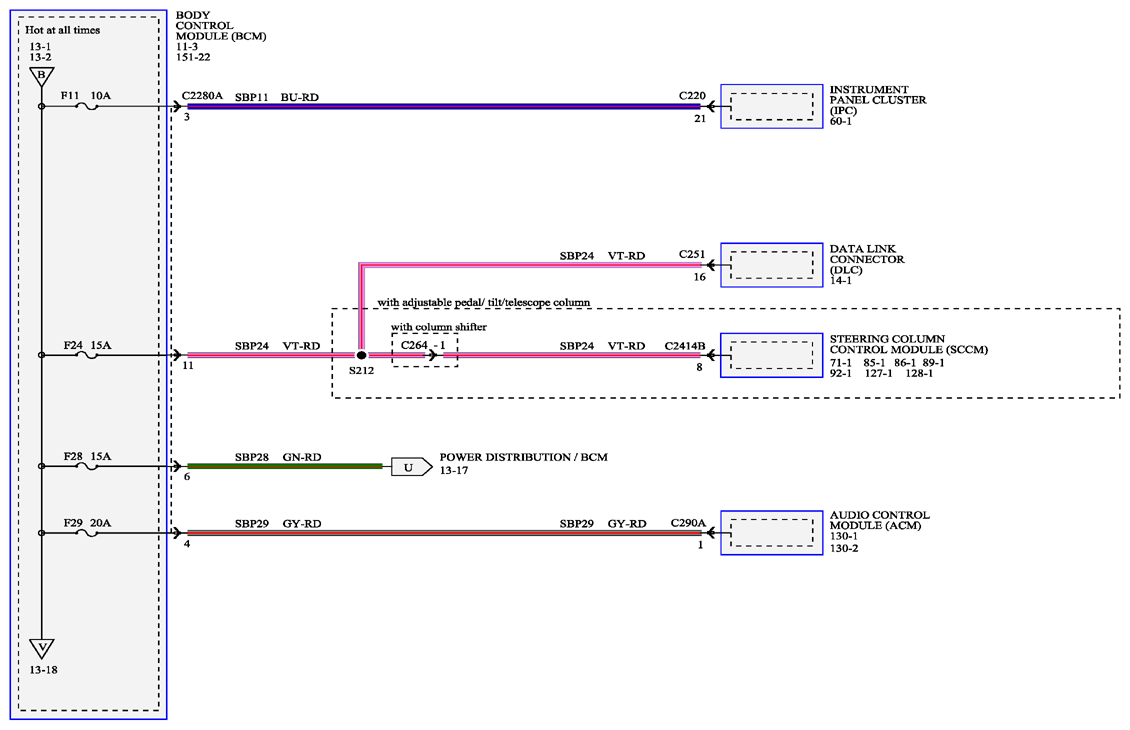

Fig 1: Power Distribution/BCM - Wiring Diagram (F11, F24, F28 And F29)
G09257451Courtesy of FORD MOTOR CO.
