F10, F16, F17, F79

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

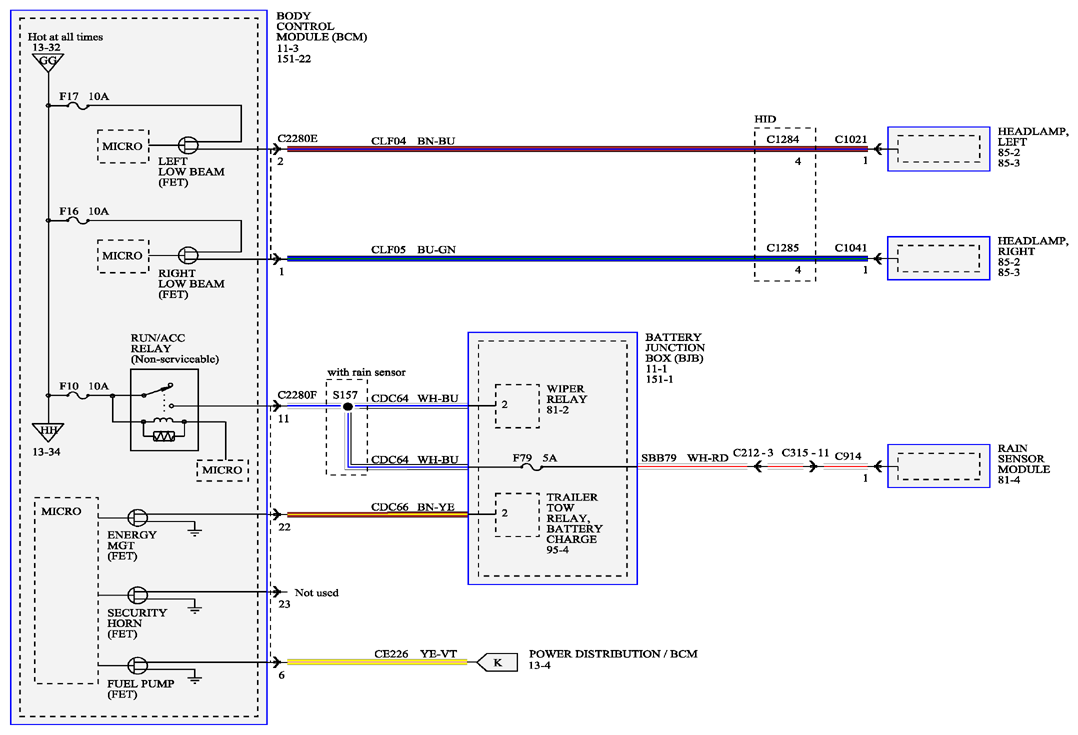

Fig 1: Power Distribution/BCM - Wiring Diagram (F10, F16, F17 And F79)
G09257468Courtesy of FORD MOTOR CO.
