6.2L F45, Mega 125A, 250A

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

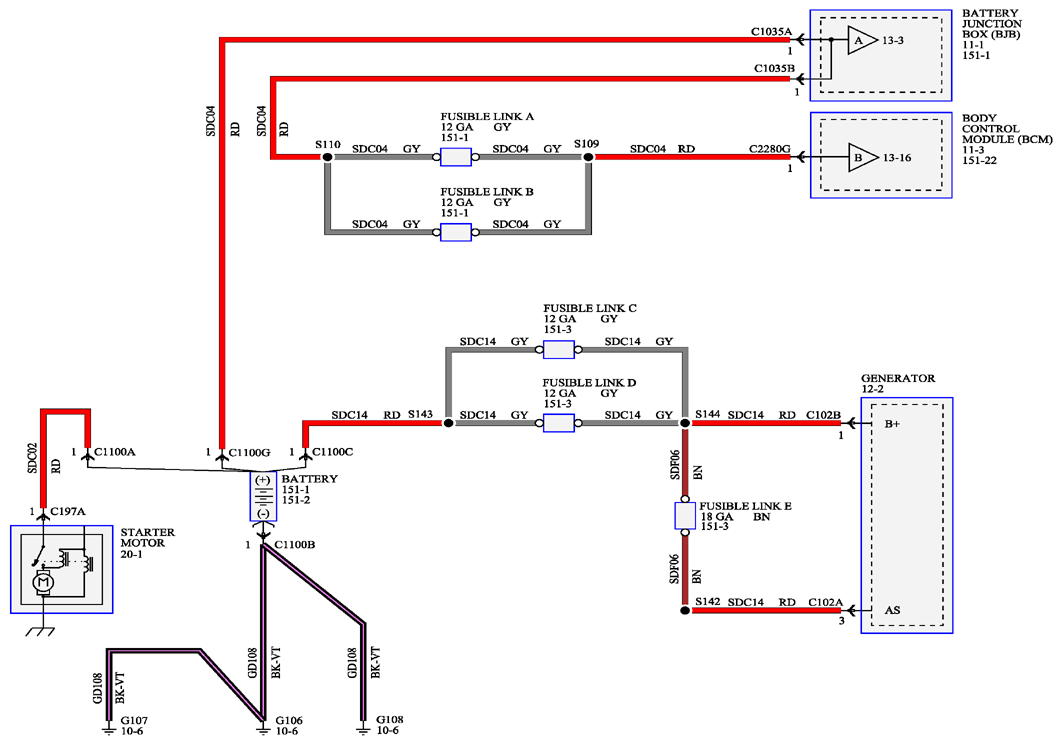

Fig 1: Power Distribution/BCM - Wiring Diagram (6.2L)
G09257437Courtesy of FORD MOTOR CO.
