3.5L/3.7L/5.0L - F45, Mega 125A, 250A

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

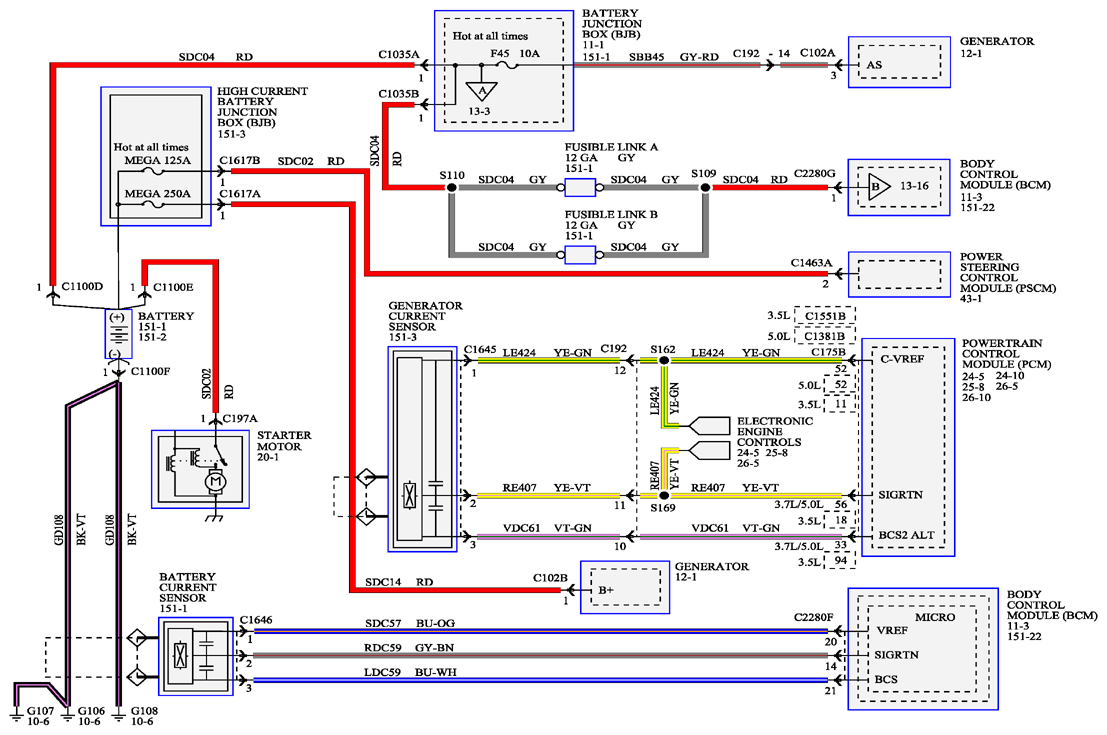

Fig 1: Power Distribution/BCM - Wiring Diagram (3.5L/3.7L/5.0L - F45, MEGA 125A And 250A)

Courtesy of FORD MOTOR CO.
