Manual Climate Control System: Base

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

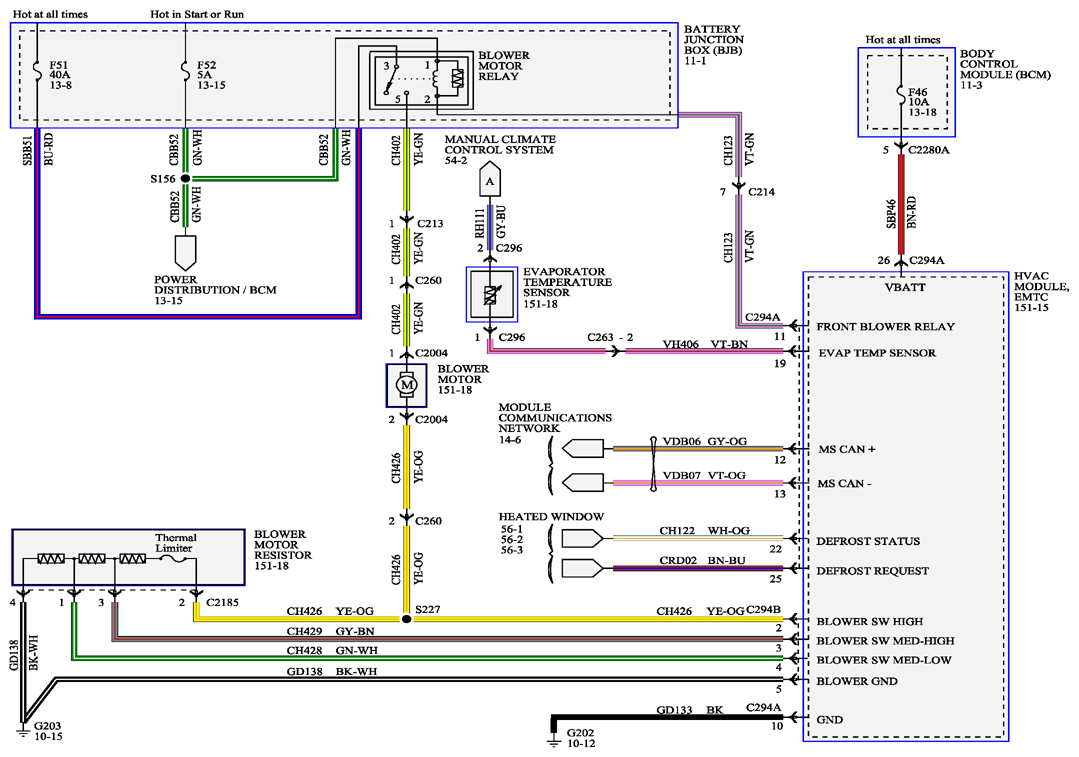

Fig 1: Manual Climate Control System - Wiring Diagram (Base; 1 Of 3)

Courtesy of FORD MOTOR CO.

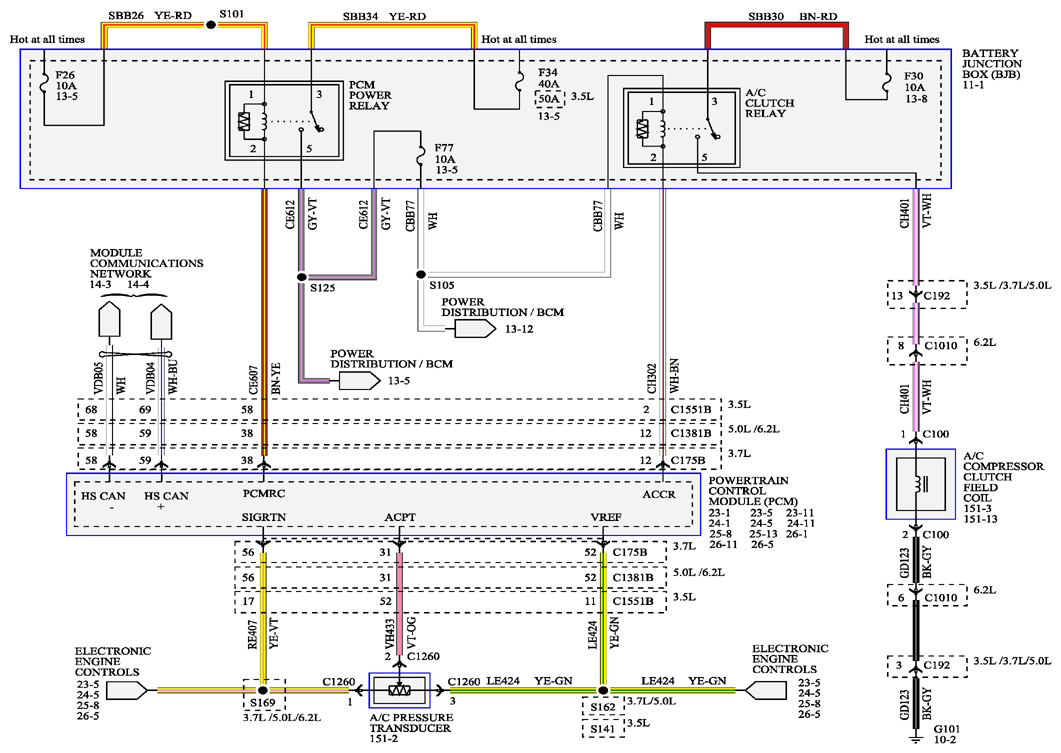

Fig 2: Manual Climate Control System - Wiring Diagram (Base; 2 Of 3)

Courtesy of FORD MOTOR CO.

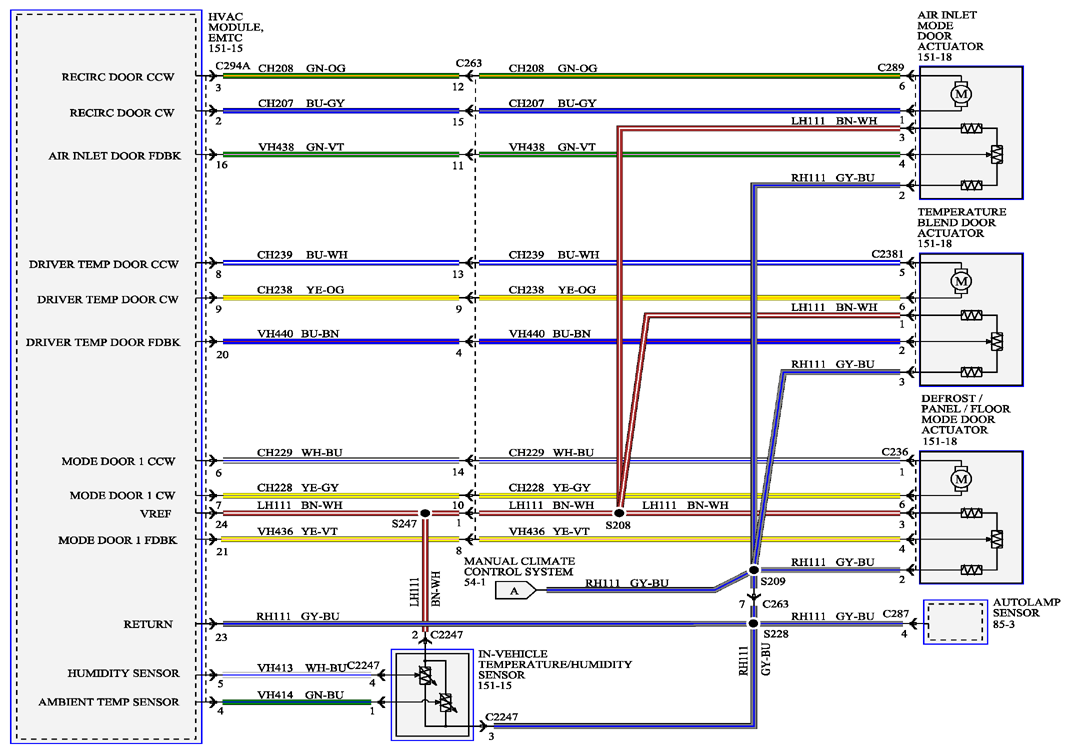

Fig 3: Manual Climate Control System - Wiring Diagram (Base; 3 Of 3)

Courtesy of FORD MOTOR CO.
