5-Button Message Center

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

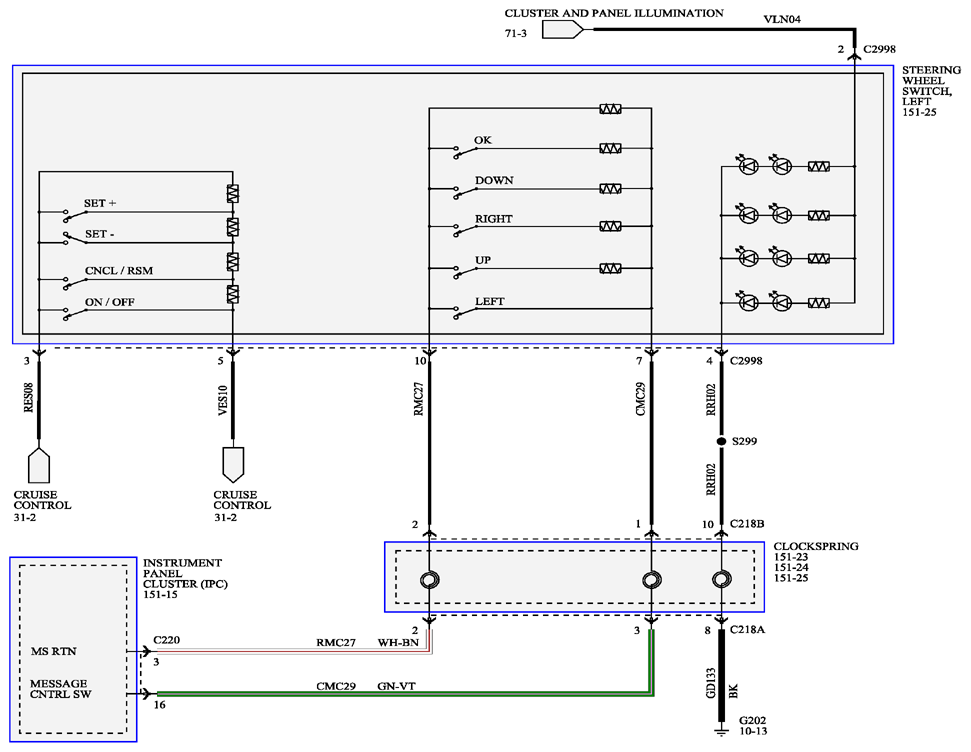

Fig 1: Instrument Cluster - Wiring Diagram (5-Button Message Center)
G09257592Courtesy of FORD MOTOR CO.
