Section 514 (OEM Wiring Diagrams)
>>
Headlamps/AUTOLAMPS
>>
AUTOLAMPS With Manual A/C
AUTOLAMPS With Manual A/C
WARNING:
This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

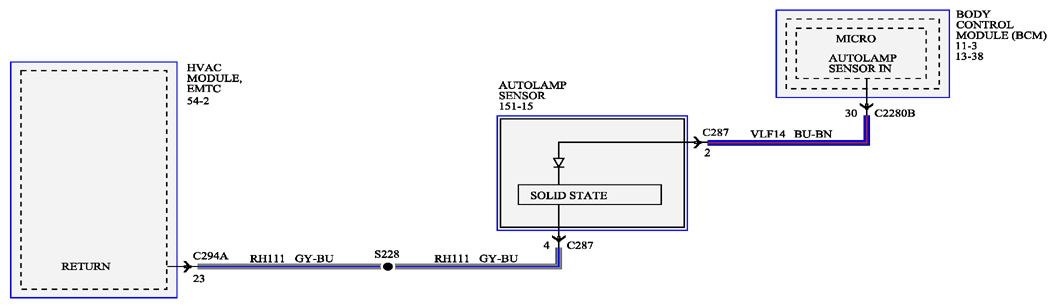

Fig 1: Headlamps/Autolamps - Wiring Diagram (Autolamps With Manual A/C)
Courtesy of FORD MOTOR CO.
