Crew Chief

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

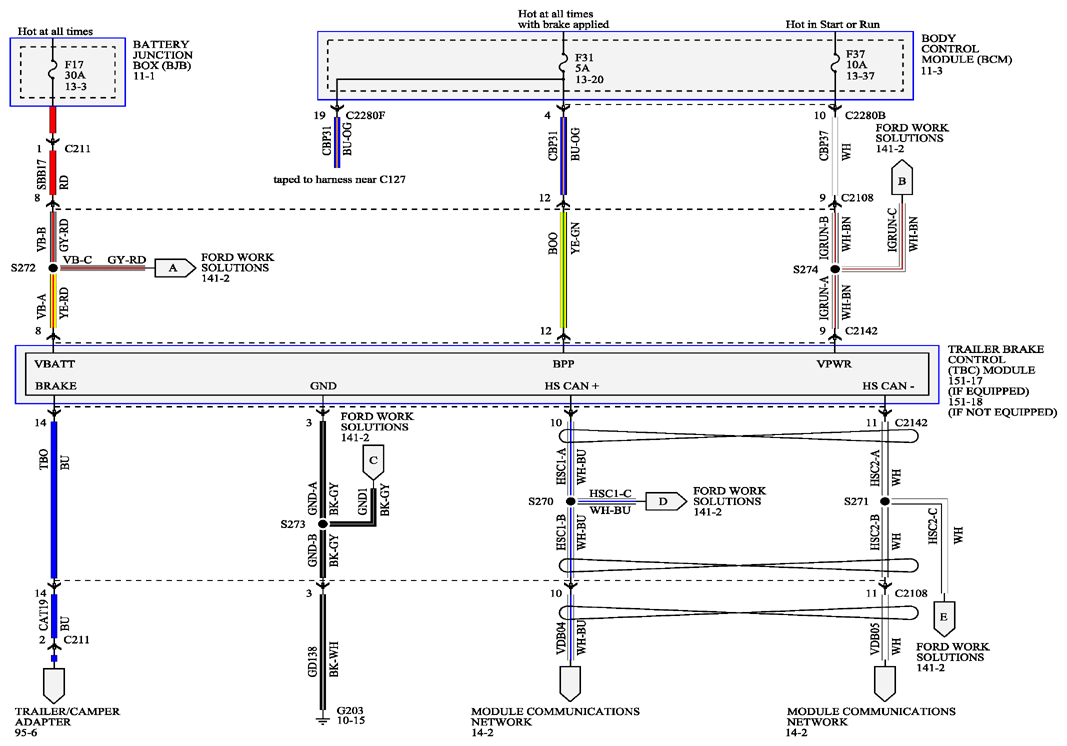

Fig 1: Ford Work Solutions - Wiring Diagram (Crew Chief; 1 Of 2)
G09257711Courtesy of FORD MOTOR CO.

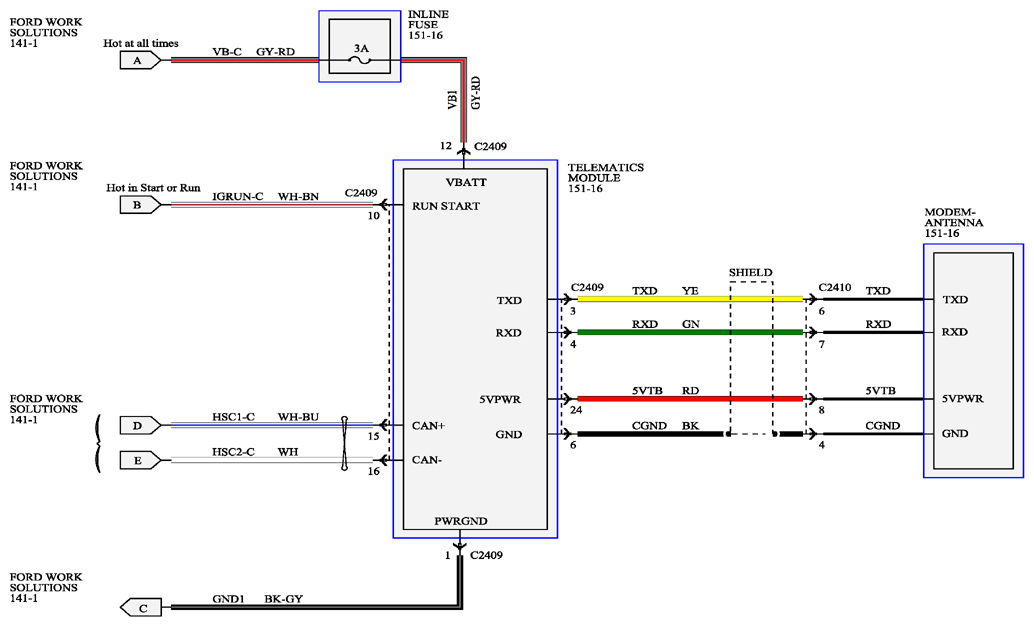

Fig 2: Ford Work Solutions - Wiring Diagram (Crew Chief; 2 Of 2)
G09257712Courtesy of FORD MOTOR CO.
